RS232 RS485 Digital Weight Controller For Weighing And Batching Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-B60S(L) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | 1pcs/box |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Power Supplier: | DC24V | Loadcell: | 8 Loadcell Connectable 350ohm |
|---|---|---|---|
| COM1: | RS232 | COM2: | RS485 |
| Outline Size: | 107*60*100mm | ||
| Highlight: | RS485 Digital Weight Controller,RS232 Digital Weight Controller,Batching Plant Digital Weight Controller |
||
Product Description

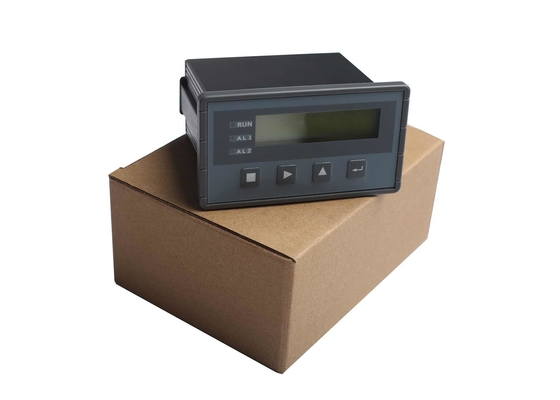

Weight Indicator For Weighing and Batching Plant,Industrial Hanging Crane Weighing Indicator
Main Application:
Weight/Force Display
Peak Value Detection/Display Holding
Setpoint DO Output
Weight/Force Signal AO/Digit Transmission
Weight/Force Increament/Decrement DO Output Mode
Weight/Force Section DO Output Mode.
Main Feature:
1:32-bit ARM CPU with 48MHz clock and high arithmetic speed.
2: Auto Zero Tracking
3: Load Calibration,Data Calibration&Segmenting Correction
4: Definable AO/COM[Communication Port]
Technical Specifiction:
| Power Supply | AC24V±20% |
| Display | 5 Red Led Digital Tubes for English&Digit Display |
| Sampling Frequency | 1280Hz |
| A/D Convert | 24-bit |
| Keypad | 4 keys for Shortcut mode operation with key tone |
| Excitation Voltage Output of Loadcell | DC5V |
| Max. Connection number of Loadcell | 8 Loadcells (350Ω) |
| [mV]Signal Input Range | 0-19.5mV |
| DO | 2 Normally Open Transistor Switch Outputs |
| AO | 1Analog Signal Output: 4~20mA. |
| Communication Port | COM1:RS232;COM2:RS485 |
| Outline Dimension | 107 × 60 × 100 mm (W×H×D) |
| Net Weight | Approx. 1.2kg |
| IP Grade | IP65 |
| Verfication Accuracy | 0.03% |
| Static Weighing/Force Measuring Accuracy | 0.2%~.5~ |
Model Panel-mounting Operation Interface
Keypad Operation
If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.
| Menu Operation | |
| Key Name | Description |
| 【MENU】 |
Enter Main Menu. Exit. |
| 【ENT】 | Enter / Save / Alarm Acknowledge. |
| 【◄】 |
Cursor shifts left. Display the previous option. |
| 【►】 |
Cursor shifts left. Display the next option. |
| 【▲】 |
Display the next interface or option. Digit input: +1 ( 0~9 loop). |
| 【▼】 |
Display the previous interface or option. Digit input: -1 ( 0~9 loop). |
| Quick Operation | |
|
【MENU】 【Ñ】 * |
|
|
【◄】 (【SET】) |
Recipe parameters setting. |
|
【◄】 【ZERO】 【→0←】 * |
|
|
【▲】 【TARE】 【→T←】 * |
|
|
【ENT】 【G/N】 |
Gross Weight / Net Weight display switch. |
