Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232

China Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232 supplier
Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232 supplier Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232 supplier Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232 supplier

Large Image :  Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B60S(L)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 60usd/pcs
Packaging Details: 1pcs/box
Delivery Time: 1-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Power Supplier: AC220V Loadcell: 8 Loadcell Connectable 350ohm
COM1: RS485 Out Put: 4-20mA

Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232



Technical Specifications
 Power Supply: DC24V±20%, Max. 5W.
 Loadcell Excitation Voltage/Current: DC5V/120mA.
 8 Loadcells[350Ω] connectable.
 Transmitter Excitation Voltage/Current: DC12V/100mA.
 Optional weighing input signal mV, V and mA.
 【mV】Signal Input Range: 0~19.5mV.
 【V】Signal Input Range: 0~2.5V, 0~5V, 0~10V.
 【mA】Signal Input Range: 0~20mA.
 2 Normally open/closed Relays [DO]: AC250V/DC24V, 1A.
 1 Analog Signal Output [AO]: 0~20mA, 0.05%FS.
 COM1: RS232.
 COM2: RS485.



Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232

Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232



Technical Specifiction:

Power Supply AC24V±20%
Display 5 Red Led Digital Tubes for English&Digit Display
Sampling Frequency 1280Hz
A/D Convert 24-bit
Keypad 4 keys for Shortcut mode operation with key tone
Excitation Voltage Output of Loadcell DC5V
Max. Connection number of Loadcell 8 Loadcells (350Ω)
[mV]Signal Input Range 0-19.5mV
DO 2 Normally Open Transistor Switch Outputs
AO 1Analog Signal Output: 4~20mA.
Communication Port COM1:RS232;COM2:RS485
Outline Dimension 107 × 60 × 100 mm (W×H×D)
Net Weight Approx. 1.2kg
IP Grade IP65
Verfication Accuracy 0.03%
Static Weighing/Force Measuring Accuracy 0.2%~.5~



Keypad Operation

Menu Operation
Key Name Description
【■】 Enter Main Menu / Exit.
8 Enter / Save / Clear Alarm.
【►】

Cursor shifts right.

Display the previous option.

【▲】

Display the next interface or option.

Digit input: +1 ( 0~9 loop).



Quick Operation Mode A

Parameter [904]= ‘0. dE’ [Default Set]

Key Name Description
【■】*
  • Key-locking.
  • Key-unlocking.

【►】

(【SET】)

Setpoint parameters setting.

【►】*

(【ZERO】)

(【→0←】)

  • [-ZEro]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro]: Manual Zero without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.

【▲】*

(【TARE】)

(【→T←】)

  • [≡tArE]: Manual Tare without Power-down Protection.
  • [-PStr]: Preset Tare Weight with Power-down Protection.
  • [-rStr]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.

8

(【G/N】)

Gross Weight / Net Weight / Net Weight Peak Value display switch.

8】*

(【CLS】)

  • [-CLS] : Clear Screen [Clear the display value of Peak Hold Value].



Mini Weighing Force Measuring controller with force display and Force DO output mode

Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232

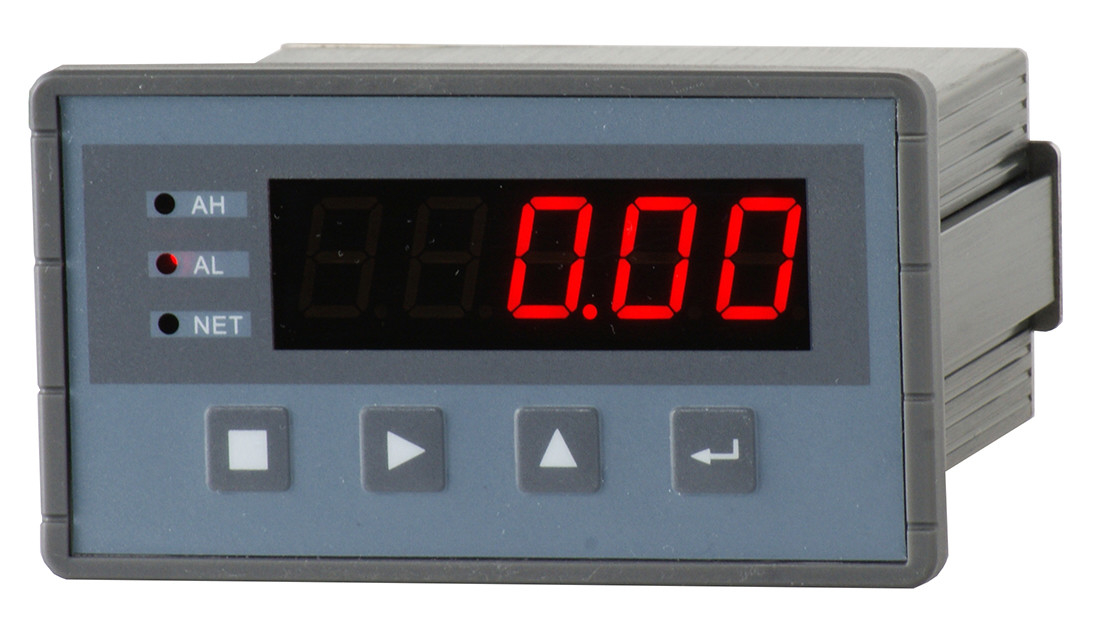

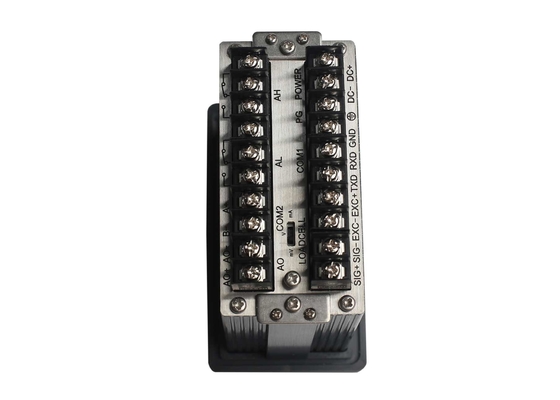

Model Panel-mounting Operation Interface

Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232



Load Calibration (LoAd)

After doing Data Calibration, if there are conditions for Load Caliration, do Load Calibration with
loading standard weight on the weigher to correct Span Coefficient further for higher weighing accuracy.
The loading weight should be bigger than 50% of Scale Capacity value.

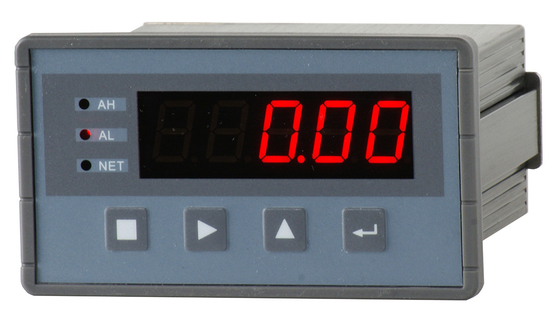

Main Display Interface

Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232

Zero Tracking Weighing Indicator, Load Cell Display And Controller Dc24v With AO DO RS485 RS232
