Product Details:

Place of Origin: Changsha,HN, China
Brand Name: Supmeter
Model Number: SU80

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiate
Packaging Details: Carton box
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Get Best Price Contact Now

Detail Information

Analog Transmission: 4~20mA Weight Digit Transmission: RS485
Application: For Remote Host-slave Weighing System Sampling Frequency: 1280Hz
DO: 2 Relay Switch Output Contact Capacity Of Relay Switch:: AC250V/DC24V, 1A
High Light:

Overload Protection Electronic Weighing Indicator

,

Electronic Weighing Indicator Low / High Limit Output

,

Electronic Weighing Indicator Low Limit Output

Product Description

Weight Display, Weight Low/High Limit Output, Weight Setpoint Output, Overload Protection Controller



SU80 is our new developed controller, which is with high quality but low price.



1. Application:



1) Weight Display, Weight Low/High Limit Output, Weight Setpoint Output, Overload Protection

2) AO[0-20mA] Weight Analog Transmission.

3) RS485 Weight Digit Transmission.

4) For Remote Host-slave Weighing System.



2. Operating Specification

1) Power Supply 1: AC85~264V, 50/60Hz, Max. 3W.

2) Power Supply 2: DC24V±20%, Max.3W.

3) Outline Size: 96 × 48 × 82 mm [L×W×H].

4) Box Body Size: 90 × 44 mm [L×W].

5) Panel Cut-out Size: 92 × 46 mm [L×W].

6) Operating Temperature: -25℃ to +45℃.

7) Storage Temperature: -30℃ to +60℃.

8) Relative Humidity: Max. 85%RH.

9) Weight: Approx. 180g.

10) Protection Level: IP50.



3.Specification:



Loadcell Port

S-

mV Signal Input -

S+

mV Signal Input +

E-

Excitation Voltage -

E+

Excitation Voltage + [DC5V]

Communication

Communication Protocol

Host-slave Modbus RTU

Optional Baud Rate

1200, 2400, 4800, 9600[default], 19200bps

Switch Signal Output Interface

2 Relay switch outputs with normally open and normally closed contacts [DO]

Contact Capacity of Relay Switch

AC250V/DC24V, 1A

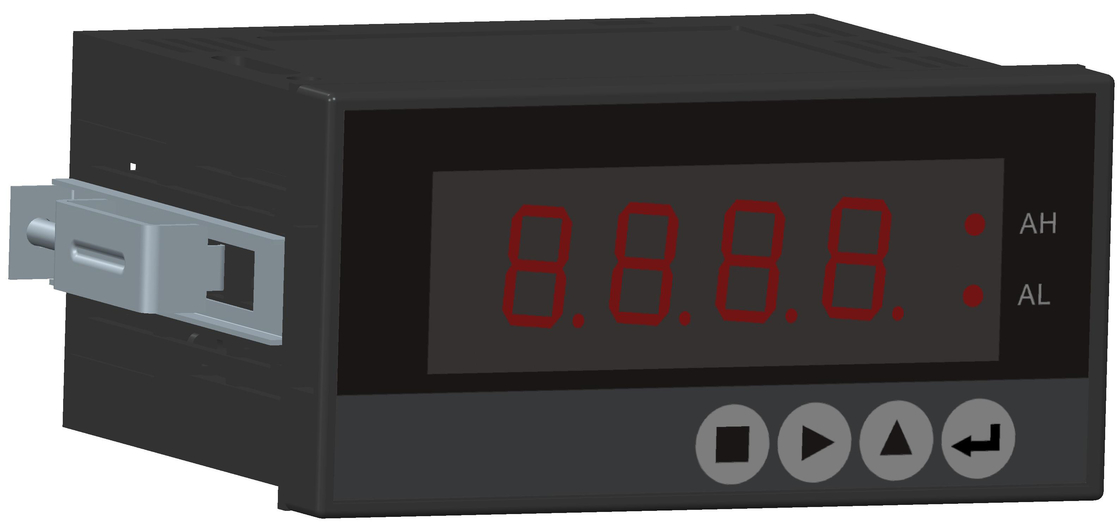

Photo:



Overload Protection Electronic Weighing Indicator Low / High Limit Output 0



Overload Protection Electronic Weighing Indicator Low / High Limit Output 1



Delivery:



Overload Protection Electronic Weighing Indicator Low / High Limit Output 2
