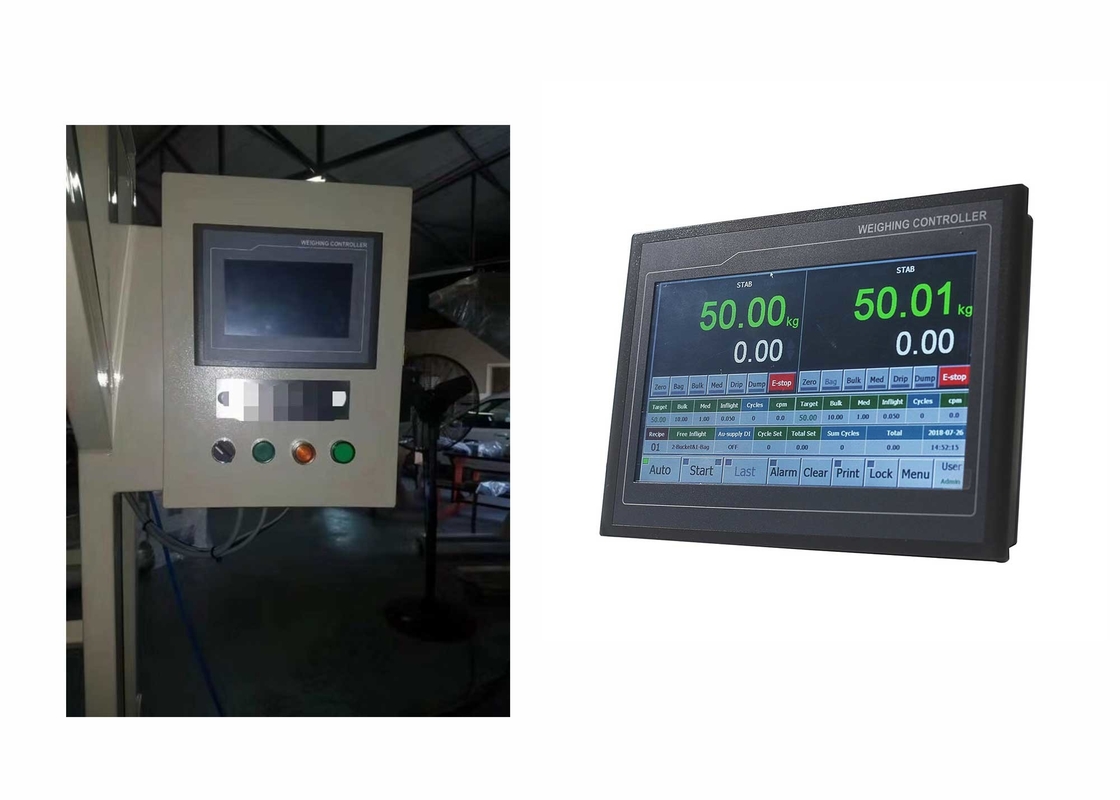

10-50kg Filling Application Bagging Controller With High Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M10(BH) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 229-320usd/pcs |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 1-3days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800pcs/day |
|
Detail Information |
|||
| Power Supply: | DC24V | Application: | Single Scale Mode & Double Scale Mode |
|---|---|---|---|
| Input: | 9DIs | Output: | 18DOs |
| Verification Accuracy: | 0.02% | Customization: | Available |
| Packing Accuracy: | 0.2%-0.5% | Product Name: | Double Scales Packaging Controller |
| Speed: | 10-16 Bags / Min | ||
| Highlight: | packing controller,electrical weighing system |
||
Product Description
10-50kg Rice /Sugar/Cereal Bag Filling Application Controller/Instrument With High Speed 10-16 Bags/Min
Technical Specifications
- Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
- 16-bit Color screen with 800×480[7”] or 1024×600[10.2”] pixel and LED backlight.
- Graphic user interface and touch operation.
- Weight Display Range: -99,999~+999,999.
- Scale Capacity: Setting Range 1~999,999.
- Scale Division: Optional 1, 2, 5, 10, 20, 50.
- Display Resolution: 1/100,000.
- Weight Unit: Optional g, kg, t, lb[pound], oz[ounce], UserSet.
- Decimal Point Position: Optional 0, 0.0, 0.00, 0.000.
- 2 Loadcell ports. Max. Connection Quantity: 2×8 Loadcells (350Ω).
User Login Interface
| Name | Operation | Note |
| 【Login】 | User Login.
| Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password. |
| 【User Name】 | After password inputted, the matching User Name will be displayed. |
|
| 【Operate】 | Enter ‘Main User Interface’. | Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff. |
Buttom Operation:
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. | Green: Auto state. | All Users |
| 【Start】 | Start. | Green: Running state. | |
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【Stop】 | Normal Stop [Last Batch]. | Flashing Red. | |
| 【E-Stop】 | Emergency Stop. | ||
| 【Alarm】 | Alarm Query / Clear Alarm. | Red: Alarm state. | |
| 【Print】 | Report Print:
| ||
| 【Lock】 | Screen-locking: Locking/unlocking the operating buttons of main user interface. | Flashing Red: Locked. | |
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing green. | |
| 【Bag】 | Bag-clamp/release Request. | Green: Bag-clamping state. | |
| 【Bulk】 | Manual Start/Stop Bulk Feed. | Green: Working state. | |
| 【Med】 | Manual Start/Stop Medium Feed. | ||
| 【Drip】 | Manual Start/Stop Dribble Feed. | ||
| 【Dump】 | Manual Start/Stop Dumping. | ||
| 【Mat.】 | Manual Start/Stop Supplying Materials into Feeding Bin. | Flashing green. | |
| 【Clear】 | Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed. | Engineer |
Size:
7 Inch One:
Outline Size [W×H×D]: 226.5 × 163 × 36 mm
Panel Cut-out Size [W×H]: 215 × 152 mm
10 Inch One:
Outline Size [W×H×D]: 274 × 193 × 40 mm
Panel Cut-out Size [W×H]: 261 × 180 mm
Main User Interface
System Diagram for APP1.1 1-Bucket Scale
System Diagram for APP1.2 2-Bucket Scale[1-Bag] Mode
Package
