Guide Rail Type Weighing Indicator Controller DC24V With Weight Force Display

Guide Rail Type Weighing Indicator Controller DC24V With Weight Force Display

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST106-M60B

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 55 USD
Packaging Details: Carton Box
Delivery Time: 7-9 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Operating Voltage: DC12~24V Power: DC24V
Normally Open Transistor Switch Outputs: 3DO AO: 4-20mA
Weight:: Approx. 280g. Relative Humidity: Max. 85%RH.
High Light:

Guide Rail Weighing Indicator Controller

,

Weighing Indicator Controller

,

Weighing Indicator Controller DC24V

Product Description

Guide Rail Type Weighing Indicator Controller DC24V With Weight Force Display

Guide Rail Type Weighing / Force Measuring Control Module, With Weight/Force Display

  • Applications: Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 48MHz clock & high arithmetic speed.

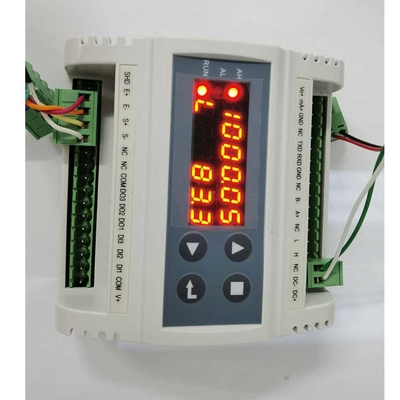

  • 6+6 Red LED digital tubes for English character and digit display.
  • 4-key English keypad for Menu&Shortcut mode operation.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and max. sampling frequency 3200Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • Max. Connection Quantity: 8 Loadcells (350Ω).
  • Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
  • Load Calibration, Data Calibration, Segmenting Span Correction and Segmenting Weight Calculation available.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 3 Definable normally open switch inputs [DI] and 3 definable normally open transistor switch outputs [DO].
  • 1 Optional&definable current signal output [AO: 0~20mA].
  • 1 Optional&definable voltage signal output [VO: 0~10V].
  • RS232, optional RS485 and CANBUS communication ports for connecting Host IPC/PLC and LED Remote Display.
  • With the multitasking mode, the weighing/force measuring process, alarm output and signal transmission will not be interrupted by parameter setting and the other operations.



Guide Rail Type Weighing Indicator Controller DC24V With Weight Force Display 0

Guide Rail Type Weighing Indicator Controller DC24V With Weight Force Display 1


Keypad Operation



If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.



Key Name Function Description
【■】 【MENU】 Enter Main Menu / Exit.
【LOCK】* Key-locking / Key-unlocking.
【►】 【►】

Cursor shifts right.

Display the previous interface or option.

【ZERO】* Manual Zero without Power-down Protection.
【▲】 【▲】

Display the next interface or option.

Digit input: +1 ( 0~9 loop).

【SET】* Setpoint Parameters Setting.
8 【ENT】 Enter / Save / Clear Alarm.
【CLS】* Clear Screen [Clear the display value of Peak Hold Value and Weight-checking Value].

*: Keep the key pressed for 2 seconds.



Technical Specifications

  • Executing Standards
  • PRC GB/T 7724-2008 Electronic Weighing Meter National Standard.
  • PRC JJG 649-2016 Digital Weighing Indicators National Verification Regulation.
  • OMIL R76-1: 2006 Non-automatic Weighing Instruments International Recommendation.
  • Accuracy Grade:Ⅲ.
  • Number of Verification Scale Interval: n=3000.
  • Display
  • 6+6 Red LED digital tubes for English character and digit display.
  • Weight Display Range: -9,999~+99,999.
  • Scale Capacity: Setting Range 1~99,999.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
  • Display Resolution: 1/50,000.
  • Decimal Point Position: Optional 0, 0.0, 0.00, 0.000, 0.0000.
  • Display Refreshing Time: Setting Range 0.01~1.00s.
  • Keypad
  • 4-key English keypad for Menu&Shortcut mode operation.
  • Weighing Signal Interface
  • Excitation Voltage/Max. Current: DC5V/120mA [8-350Ω loadcells].
  • Signal Input Range: 0~12.5mV.
  • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Optional Sampling Frequency: 3200Hz, 1600Hz, 800Hz, 400Hz, 200Hz, 5Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Switch&Analog Signal Interface
  • 3 Optional&definable normally open switch inputs [DI].
  • 3 Optional&definable normally open transistor switch outputs [DO]: DC24V, 250mA..
  • 1 Optional&definable current signal output [AO: 0~20mA], Non-linearity: 0.05%FS.
  • 1 Optional&definable voltage signal output [VO: 0~10V], Non-linearity: 0.05%FS.
  • Digital Communication Interface
  • COM1: RS232.
  • COM2: Optional RS485.
  • COM3: Optional CANBUS.

  • Connectable: Host IPC/PLC and LED Remote Display.
  • Operating Specification
  • Operating Voltage: DC24V±20%.
  • Max. Power Consumption: 3W.
  • Outline Size: 108×117×54.9mm [W×H×D].

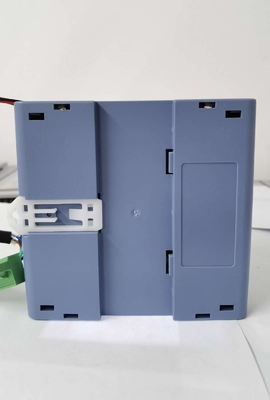

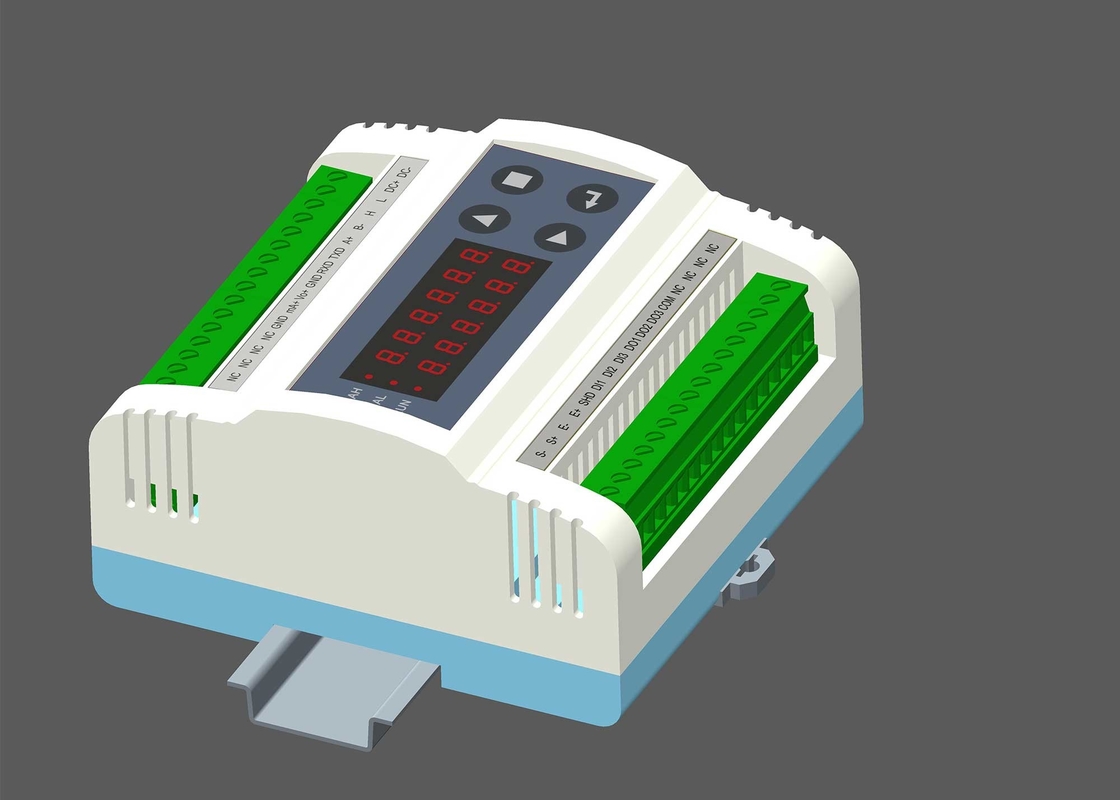

  • Guide rail type installation.
  • Guide Rail Groove Size: 35×1.6 mm [W×D].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Weight: Approx. 280g.
