    Industrial Electronic Digital Weigher Indicator Bagging Weighing Scale Controller

    Product Details:

    Place of Origin: China
    Brand Name: SUPMETER
    Certification: CE
    Model Number: BST106-B66[A]

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Packaging Details: 1pcs/box
    Delivery Time: 30 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 300pcs per month
    Get Best Price Contact Now

    Detail Information

    Operating Voltage: DC24V Loadcell: Max Connect 4 Loadcells (350Ohm)
    DI: 6 DO: 8
    Communication: RS232 And RS485
    High Light:

    digital load cell indicator

    ,

    digital weighing indicator

    Product Description

    Industrial Electronic Digital Weigher Indicator Bagging Weighing Scale Controller

    Industrial Electronic Digital Weigher Indicator Bagging Weighing Scale Controller



         Main Features:

    • Suitable for Ration Packing Scale. Optional Application Modes: Single-hopper-weighing Mode [Single-scale Mode], Double-hopper-weighing Mode [Double-scale Mode] and Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing.
    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
    • 6+8 Red LED digital tubes for English character and digit display.
    • 4-key English keypad.
    • Menu&Shortcut mode operation with key tone.
    • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
    • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
    • Max. Connection Quantity: 4 Loadcells (350Ω).
    • Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
    • Optional Data Calibration function.
    • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
    • 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
    • Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
    • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
    • Optional ‘Fall Value Auto Correction’ function.
    • Optional ‘Auto Pause for Deviation Alarm’ function.
    • Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
    • 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
    • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.



         Pictures

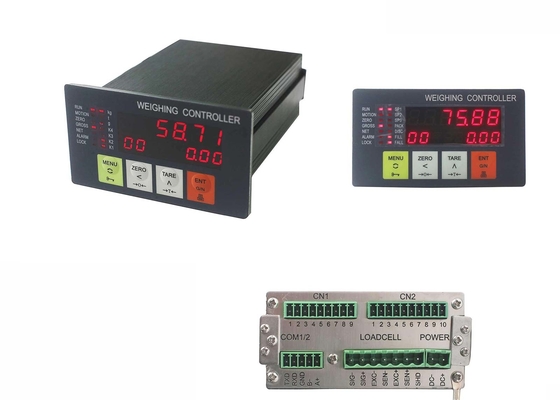

    Industrial Electronic Digital Weigher Indicator Bagging Weighing Scale Controller 0

    Industrial Electronic Digital Weigher Indicator Bagging Weighing Scale Controller 1

    Industrial Electronic Digital Weigher Indicator Bagging Weighing Scale Controller 2

    Industrial Electronic Digital Weigher Indicator Bagging Weighing Scale Controller 3

    Industrial Electronic Digital Weigher Indicator Bagging Weighing Scale Controller 4

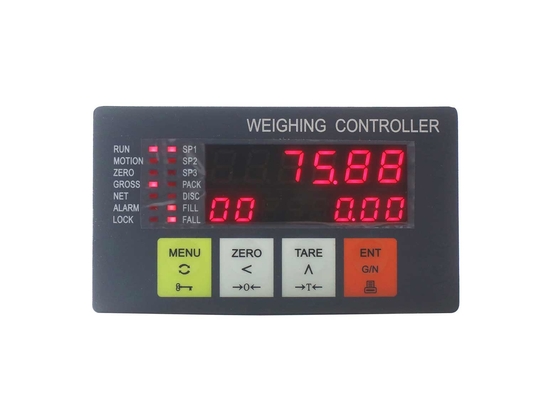

    State Indication





    LED light Description
    [RUN]

    ON: Running state.

    OFF: Stop or Calibrating state.

    [MOTION] Weight Dynamic Changing: Weight Variance per [107] ‘Stablity Judging Time’ is exceeding [106] ‘Stablity Judging Range’.
    [ZERO] Net Weight ≤ Non-load Zero Range.
    [GROSS] Gross Weight display.
    [NET] Net Weight display.
    [ALARM]

    Positive/Negative Deviation Alarm.

    Pause State.

    [LOCK]

    ON: Key-locked.

    OFF: Key-unlocked.

    [PACK]

    ON: Bag-clamping state.

    OFF: Bag-releasing state.

    [SP1] High-speed Feeding.
    [SP2] Medium-speed Feeding.
    [SP3] Low-speed Feeding.
    [FILL] Stop state: Weight value is increasing.
      Running state: It’s in the feeding process.
    [DISC] Stop state: Weight value is reducing.
      Running state of Hopper-weighing Mode: It’s in the dumping process.
    [FALL] ON: Fall Value Auto Correction function is open.


    Model Panel-mounting Installation

    Industrial Electronic Digital Weigher Indicator Bagging Weighing Scale Controller 5
