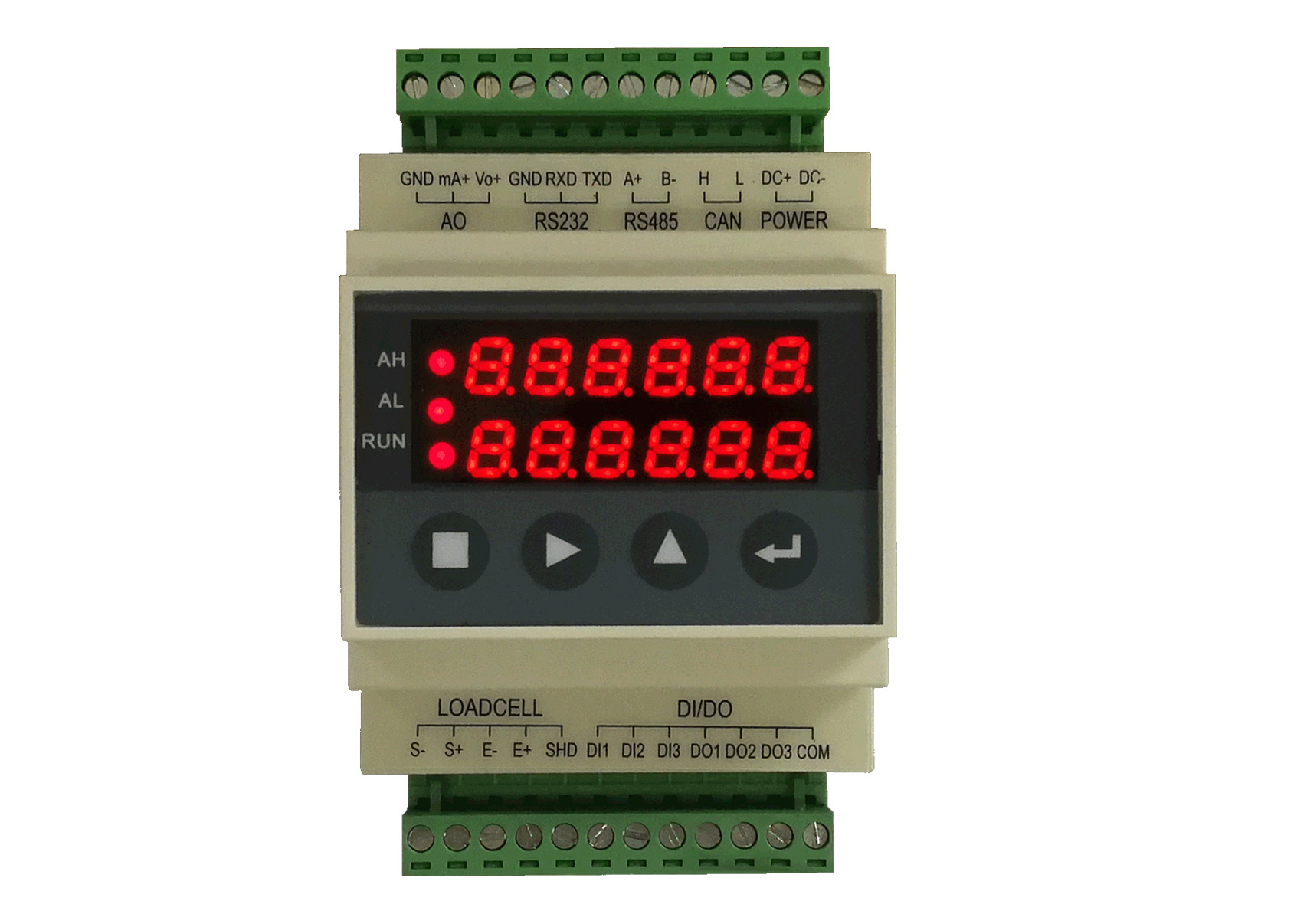

4-20mA 0-10V Weighing Indicator Controller For Auto Weight Checking
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M60S(L) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 30-50usd/pcs |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 1-3days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000pcs/day |
|
Detail Information |
|||
| Power Supplier: | DC12~24V | Outline Size: | 71.5×113×57.9mm [W×H×D] |
|---|---|---|---|
| Product Name: | Guide Rail Weighing Indicator | Application: | Load Cell Company |
| Highlight: | 10V Weighing Indicator Controller,20mA Weighing Indicator Controller,Auto Checking Weighing Indicator Controller |
||
Product Description
4-20mA 0-10V loadcell weight transmitter Weighing Indicator Controller
BST106-M60S[L] Guide Rail Type
Weighing / Force Measuring Control Module
Weight/Force Display, Peak Value Detection / Display Holding,
Auto Weight-checking, Setpoint DO Output, AO/Digit Transmission
Applications
Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.
Main Features:
1. Applications: Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.
2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
4. 6+6 Red LED digital tubes for English character and digit display.
5. 4-key English keypad for Menu&Shortcut mode operation.
6. 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and max. sampling frequency 3200Hz.
Technical Specifications:
| Display | |
| LED number | 6+6 Red LED digital tubes for English character and digit display |
| Weight Display Range | -9,999~+99,999 |
| Scale Capacity | Setting Range 1~99,999 |
| Scale Division | Optional 1, 2, 5, 10, 20, 50, 100, 200, 500 |
| Display Resolution | 1/50,000 |
| Decimal Point Position | Optional 0, 0.0, 0.00, 0.000, 0.0000 |
| Display Refreshing Time | Setting Range 0.01~1.00s |
| Keypad | |
| 4-key English keypad for Menu&Shortcut mode operation | |
| Weighing Signal Interface | |
| Excitation Voltage/Max. Current | DC5V/120mA [8-350Ω loadcells] |
| Signal Input Range | 0~12.5mV |
| Output Sensitivity of Loadcell | 1.0~2.5mV/V |
| Optional Sampling Frequency | 3200Hz, 1600Hz, 800Hz, 400Hz, 200Hz, 5Hz |
| Switch&Analog Signal Interface | |
| DI | 3 Optional&definable normally open switch inputs |
| DO | 3 Optional&definable normally open transistor switch outputs |
| AO | 0~20mA |
| VO | 0~10V |
| Digital Communication Interface | |
| COM1 | RS232 |
| COM2 | Optional RS485 |
| COM3 | Optional CANBUS |
| Connectable | Host IPC/PLC and LED Remote Display |
User Interface Diagram
Terminal
Delivery
