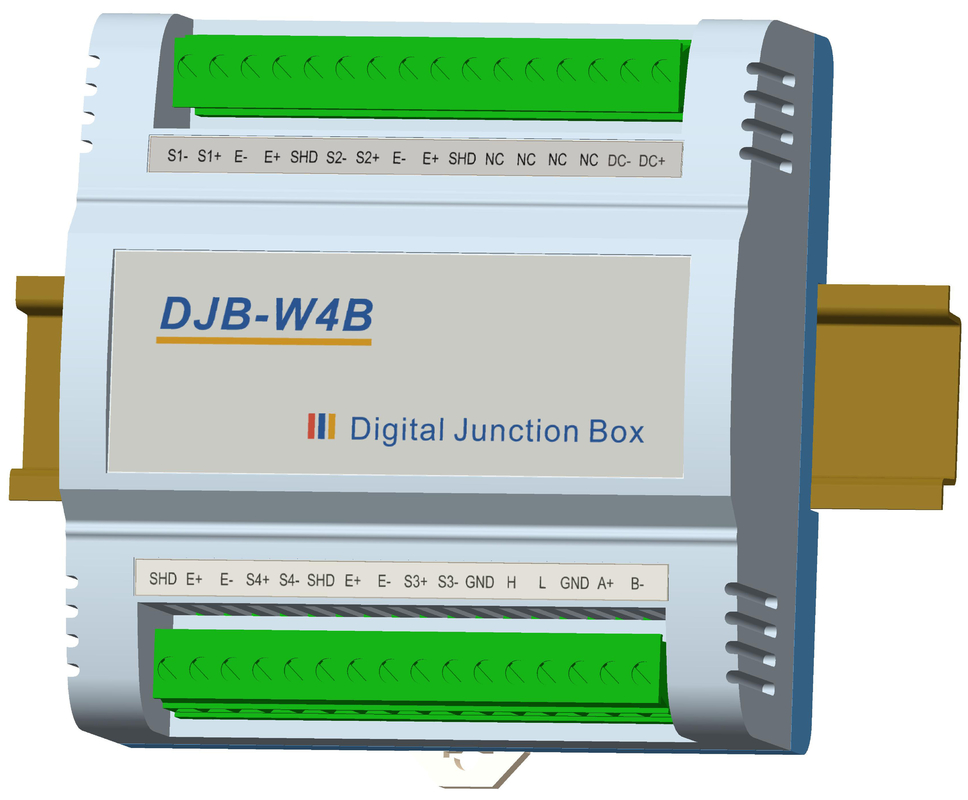

Loadcell Weighing Digital Junction Box With 4 Channel 200Hz Sampling Frequency
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Model Number: | DJB-W4B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton box |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/month |
|
Detail Information |
|||
| Type: | Rail Way Install Mode | Function: | Transform The Analog Signal From Loadcell To Digital Signal |
|---|---|---|---|
| Excitation Voltage: | DC5V/200mA | Output Sensitivity Of Loadcell: | 1.0~3.5mV/V |
| Sampling Frequency: | 200Hz | Communication Protocol: | Host-slave Modbus RTU |
| Protection Level: | IP50 | Outline Size: | 108×117×54.9mm [W×H×D] |
| Highlight: | Loadcell Weighing Digital Junction Box,Digital Junction Box With 4 Channel,Digital Junction Box 200Hz |
||
Product Description
weighing digital junction box with 4 channel for loadcell
1. Applications:
1) Transform the analog signal from loadcell to digital signal.
2) For remote host-slave weighing system.
2.Technical Specification:
| CPU System: | |
| 32-bit ARM CPU with 72MHz clock & high arithmetic speed. | |
| EMC design with high anti-jam for industrial environment | |
| Loadcell Interface: | |
| 24-bit ∑-△ADC with resolution 1/1,000,000 | |
| Special anti-vibration digital filtering algorithm | |
| Non-linearity: 0.005%FS | |
| Digital Communication Interface: | |
| Optional Configuration: RS485 or CANBUS | |
| Communication Protocol: Host-slave Modbus RTU | |
| Optional Baud Rate: 9600[default], 19200, 115200bps | |
|
Operating Specification: |
|
| Power Supply: DC24V±20%, Max. 2W | |
| Operating Temperature: -25℃ to +45℃ | |
| Storage Temperature: -30℃ to +60℃ | |
| Relative Humidity: Max. 85%RH | |
| Weight: Approx. |
Installation:
Origin Picture:
