High Accuracy DC24V Guide Rail Weighing Module With Weight / Force Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M60S(L) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 30-50usd/pcs |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 1-3days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000pcs/day |
|
Detail Information |
|||
| Outline Size: | 71.5×113×57.9mm [W×H×D] | Operating Voltage: | DC12~24V |
|---|---|---|---|
| Normally Open Transistor Switch Outputs: | 3DO | AO: | 4-20mA |
| Highlight: | digital load cell indicator,digital weighing indicator |
||
Product Description

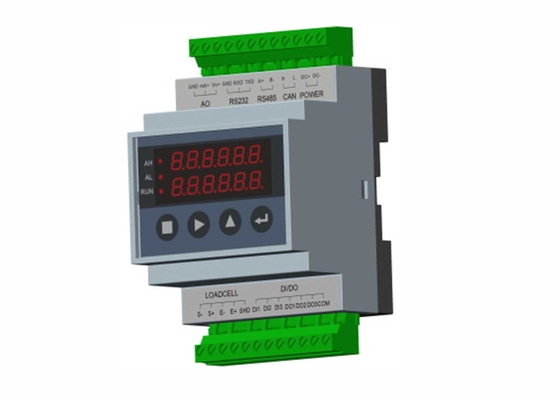

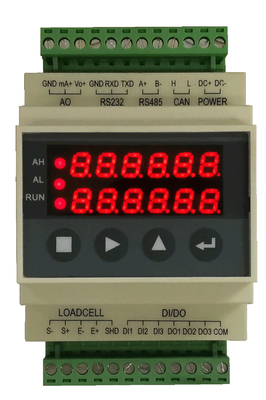

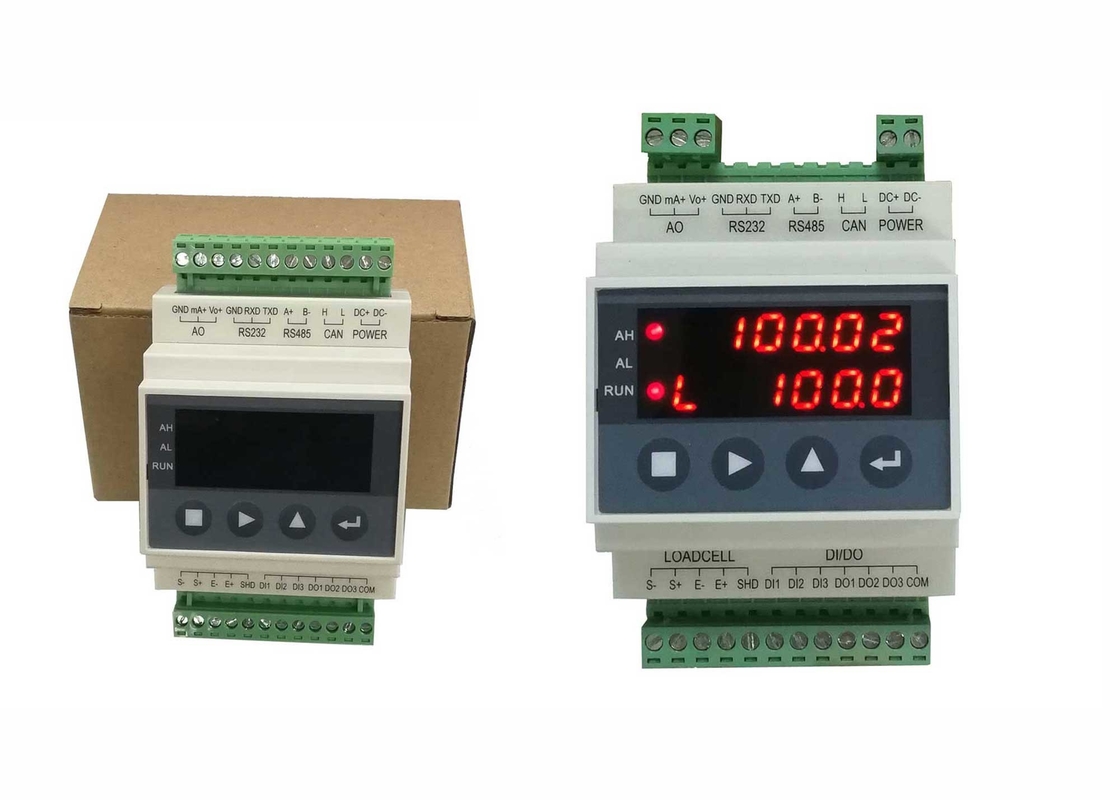

DC24V Guide Rail Weighing Control Module with Weight/Force Display, Peak Value Detection/Display Holding
BST106-M60S[L] Guide Rail Type
Weighing / Force Measuring Control Module
Weight/Force Display, Peak Value Detection / Display Holding,
Auto Weight-checking, Setpoint DO Output, AO/Digit Transmission
Applications
Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.
Keypad Operation
| Key Name | Function | Description |
| 【■】 | 【MENU】 | Enter Main Menu / Exit. |
| 【LOCK】* | Key-locking / Key-unlocking. | |
| 【►】 | 【►】 | Cursor shifts right. Display the previous interface or option. |
| 【ZERO】* | Manual Zero without Power-down Protection. | |
| 【▲】 | 【▲】 | Display the next interface or option. Digit input: +1 ( 0~9 loop). |
| 【SET】* | Setpoint Parameters Setting. | |
| 【8】 | 【ENT】 | Enter / Save / Clear Alarm. |
| 【CLS】* | Clear Screen [Clear the display value of Peak Hold Value and Weight-checking Value]. |
Main Features:
- Applications: Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.
- EMC design with high anti-jamming capability, suitable for industrial environment.
- 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
- 6+6 Red LED digital tubes for English character and digit display.
- 4-key English keypad for Menu&Shortcut mode operation.
- 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and max. sampling frequency 3200Hz.
- Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
- Max. Connection Quantity: 8 Loadcells (350Ω).
- Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
- Load Calibration, Data Calibration, Segmenting Span Correction and Segmenting Weight Calculation available.
- Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
- 3 Definable normally open switch inputs [DI] and 3 definable normally open transistor switch outputs [DO].
- 1 Optional&definable current signal output [AO: 0~20mA].
- 1 Optional&definable voltage signal output [VO: 0~10V].
- RS232, optional RS485 and CANBUS communication ports for connecting Host IPC/PLC and LED Remote Display.
- With the multitasking mode, the weighing/force measuring process, alarm output and signal transmission will not be interrupted by parameter setting and the other operations.
Installation
Technical Specifications:
| Display | |
| LED number | 6+6 Red LED digital tubes for English character and digit display |
| Weight Display Range | -9,999~+99,999 |
| Scale Capacity | Setting Range 1~99,999 |
| Scale Division | Optional 1, 2, 5, 10, 20, 50, 100, 200, 500 |
| Display Resolution | 1/50,000 |
| Decimal Point Position | Optional 0, 0.0, 0.00, 0.000, 0.0000 |
| Display Refreshing Time | Setting Range 0.01~1.00s |
| Keypad | |
| 4-key English keypad for Menu&Shortcut mode operation | |
| Weighing Signal Interface | |
| Excitation Voltage/Max. Current | DC5V/120mA [8-350Ω loadcells] |
| Signal Input Range | 0~12.5mV |
| Output Sensitivity of Loadcell | 1.0~2.5mV/V |
| Optional Sampling Frequency | 3200Hz, 1600Hz, 800Hz, 400Hz, 200Hz, 5Hz |
| Switch&Analog Signal Interface | |
| DI | 3 Optional&definable normally open switch inputs |
| DO | 3 Optional&definable normally open transistor switch outputs |
| AO | 0~20mA |
| VO | 0~10V |
| Digital Communication Interface | |
| COM1 | RS232 |
| COM2 | Optional RS485 |
| COM3 | Optional CANBUS |
| Connectable | Host IPC/PLC and LED Remote Display |
