    Rapid Dynamic Response Mini Digital Weight Indicator Force Measuring Controller With Modbus


    Rapid Dynamic Response Mini Weighing Force Measuring Controller With Modbus

    Technical Specification
    Display

    • 5 Red LED digital tubes for English character and digit display.
    • Weight Display Range: -9,999~+99,999.
    • Scale Capacity: Setting Range 1~99,999.
    • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
    • Display Resolution: 1/50,000.
    • Decimal Point Position: Optional 0, 0.0, 0.00, 0.000, 0.0000.
    • Display Refreshing Time: Setting Range 0.01~1.00s.

    Keypay

    • 4-key keypad for Menu&Shortcut mode operation.

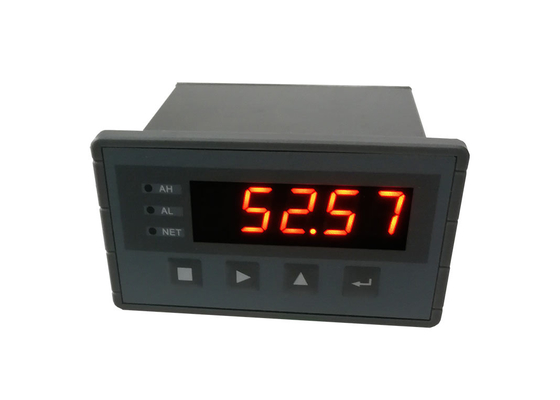

    Model Panel-mounting Operation Interface
    Rapid Dynamic Response Mini Digital Weight Indicator Force Measuring Controller With Modbus 0

    User Interface Diagram
    Rapid Dynamic Response Mini Digital Weight Indicator Force Measuring Controller With Modbus 1

    Weighing Signal Interface

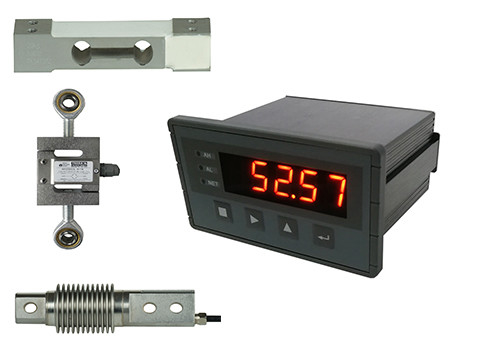

    • Excitation Voltage / Max. Current 1: DC5V/120mA for 8-350Ω loadcells.
    • Excitation Voltage / Max. Current 2: DC12V/100mA for weighing transmitter.
    • Optional weighing input signal mV, V and mA for connecting ‘【mV】Output Type Loadcell’, ‘【V】Voltage Output Type Weighing Transmitter’ and ‘【mA】 Current Output Type Weighing Transmitter’.
    • 【mV】Signal Input Range: 0~19.5mV [Output Sensitivity of Loadcell: 1.0~3.5mV/V].
    • 【V】Signal Input Range: 0~2.5V, 0~5V, 0~10V.
    • 【mA】Signal Input Range: 0~20mA.
    • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
    • Optional Sampling Frequency: 1280Hz, 640Hz, 40Hz, 10Hz.
    • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
    • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
    • Gain Drift: ±5ppm/℃.
    • Non-linearity: 0.005%FS.
    No.PinDescription
    LOADCELLmVWeighing SignalVWeighing SignalmAWeighing Signal
    1SIG+Weighing Signal Input +.Weighing Signal Input +.Weighing Signal Input +.
    2SIG-Weighing Signal Input -.

    Weighing Signal Input -.
    [‘SIG-’ and ‘EXC-’ should be shorted]

    Weighing Signal Input -.
    [‘SIG-’ and ‘EXC-’ should be shorted]

    3EXC-Excitation Voltage -.Excitation Voltage -.Excitation Voltage -.
    4EXC+

    Excitation Voltage +.
    [DC5V]

    Excitation Voltage +.
    [DC12V]

    Excitation Voltage +.
    [DC12V]

    COM1RS232 Digital Communication Port
    5TXDTransmit Data.
    6RXDReceive Data.
    7GNDSignal Ground / Shield Ground.
    8DI1Switch Signal Input 1.
    [DC] POWERDC24V[±20%] Power Input Port[AC] POWERAC85~264V Power Input Port
    9DC-DC Input -.9NNull Wire.
    10DC+DC Input +.10LLive Wire.
    The metal shell should be grounded directly. For separating the controller from the interference of the driving devices, the DC24V power supply of the controller should not be shared by the DO.



    No.PinDescription
    AO0~20mA Analog Output Port [Definable]
    1AO+AO Output +.
    2AO-AO Output -.
    COM2RS485 Digital Communication Port
    3B-Data -.
    4A+Data +.
    AL [DO1]Relay DO1 Output Port
    5OP_1DO1 Normally Open Contact.
    6COM_1DO1 Common Terminal.
    7CL_1DO1 Normally Closed Contact.
    AH [DO2]Relay DO2 Output Port
    8OP_2DO2 Normally Open Contact.
    9COM_2DO2 Common Terminal.
    10CL_2DO2 Normally Closed Contact.
    Contact Capacity of Relay Switch: AC250V/DC24V, 1A.



    Relay DO Output Signal
    PortApplication Mode / Parameter [214] AP
    AP=1.HLAP=2.HHAP=3.LLAP=4.SEC
    DO1[203]≤SET1[203]≥SET1[203]≤SET1SET1≤[203]≤SET2
    DO2[203]≥SET2[203]≥SET2[203]≤SET2

    [203]<SET1
    OR [203]>SET2
