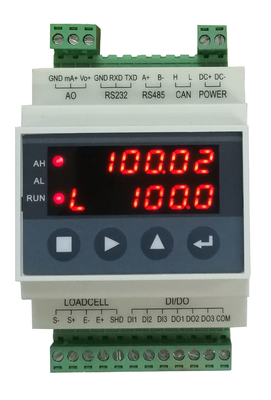

Guide Rail Digital Weight Indicator / Force Measuring LEd Control Module
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-M60S[L] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 50 USD |
| Packaging Details: | Carton Box |
| Delivery Time: | 7-9 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000pcs/month |
|
Detail Information |
|||
| Operating Voltage: | DC12~24V | Power: | DC24V |
|---|---|---|---|
| Normally Open Transistor Switch Outputs: | 3DO | AO: | 4-20mA |
| High Light: | digital load cell indicator,digital weighing indicator |
||
Product Description
Guide Rail Digital Weight Indicator / Force Measuring LEd Control Module
Dc 24V Guide Rail Weighing / Force Measuring Led Control Module With Rs232 and Rs485
Main Features:
- Applications: Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.
- EMC design with high anti-jamming capability, suitable for industrial environment.
- 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
- 6+6 Red LED digital tubes for English character and digit display.
- 4-key English keypad for Menu&Shortcut mode operation.
- 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and max. sampling frequency 3200Hz.
- Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
- Max. Connection Quantity: 8 Loadcells (350Ω).
- Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
- Load Calibration, Data Calibration, Segmenting Span Correction and Segmenting Weight Calculation available.
- Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
- 3 Definable normally open switch inputs [DI] and 3 definable normally open transistor switch outputs [DO].
- 1 Optional&definable current signal output [AO: 0~20mA].
- 1 Optional&definable voltage signal output [VO: 0~10V].
- RS232, optional RS485 and CANBUS communication ports for connecting Host IPC/PLC and LED Remote Display.
- With the multitasking mode, the weighing/force measuring process, alarm output and signal transmission will not be interrupted by parameter setting and the other operations.
Keypad Operation
| Key Name | Function | Description |
| 【■】 | 【MENU】 | Enter Main Menu / Exit. |
| 【LOCK】* | Key-locking / Key-unlocking. | |
| 【►】 | 【►】 |
Cursor shifts right. |
| 【ZERO】* | Manual Zero without Power-down Protection. | |
| 【▲】 | 【▲】 |
Display the next interface or option. |
| 【SET】* | Setpoint Parameters Setting. | |
| 【8】 | 【ENT】 | Enter / Save / Clear Alarm. |
| 【CLS】* | Clear Screen [Clear the display value of Peak Hold Value and Weight-checking Value]. |
User Interface Diagram

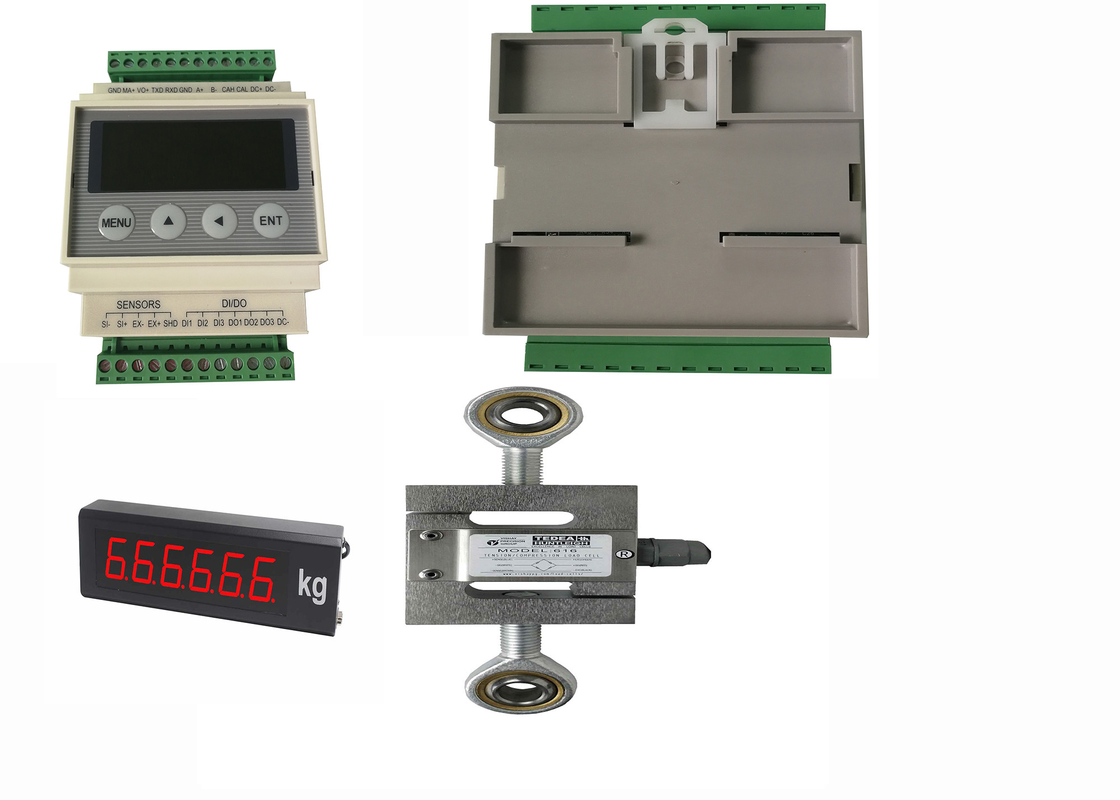

Installation
Package:
