    High Accuracy Industrial Electronic Weighing Indicator Dust Proof Material Level

    Product Details:

    Place of Origin: China
    Brand Name: SUPMETER
    Certification: CE
    Model Number: BST106-C21

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiating
    Packaging Details: carton box
    Delivery Time: 5-15 workingdays
    Payment Terms: T/T, Western Union
    Supply Ability: 500pcs/month
    Get Best Price Contact Now

    Detail Information

    Power Supply: AC220V/DC24V Max Connect: 8Loadcells
    Open Swith Input: 3DI Open Repay Output: 4DO
    Protection Level Of Front Panel: IP65
    High Light:

    electronic weight indicator

    ,

    digital load controller

    Product Description

    High Accuracy Industrial Electronic Weighing Indicator Dust Proof Material Level


    Product Description

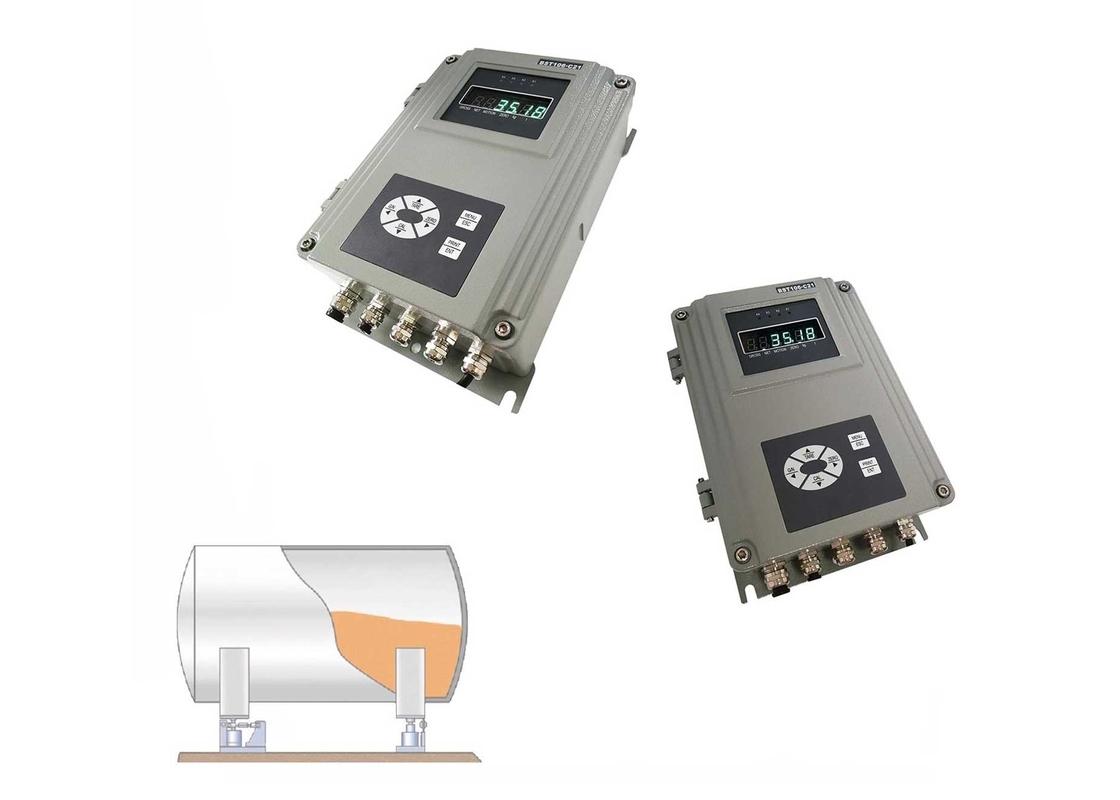

    High-accuracy Wall-mounting Industrial dust proof material level weighing controller indicator



    Main Features

    EMC design with high anti-jam for industrial environment.

    6 LED/VFD digital tubes for English&digit display.

    64-segment LED for percent display.

    24-bit ∑-△ADC with internal resolution 1/1,000,000.

    High sampling frequency 200Hz.

    Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.



    Auto Zero Tracking.

    Load Calibration &, Data Calibration.

    The Weighing Record can be printed.

    Definable AO/COM[Communication Port].

    Technical Specifications:

    Power Supply: AC220V±15%, 50/60Hz, Max. 10W.

    Loadcell Excitation Voltage/Current: DC10V/250mA.

    8 Loadcells[350Ω] connectable.

    Weighing Signal Input Range: 0~25mV.

    3 Normally Open Switch Inputs [DI].

    4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.

    1 Analog Signal Output [AO]: 4~20mA, 0.05%FS.



    Accuracy Grade: III.



    COM1: Fixed RS232&RS485. Free to use one of them.

    COM2: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.



    Connect Host IPC, Remote Display, Printer&Wireless Module.

    Outline Size [W×H×D]: 160 × 84 × 188 mm.

    Panel Cut-out Size [W×H]: 151 × 76 mm.

    Operating Temperature: -25℃~+45℃.

    Protection Level of Front Panel: IP65.

    Verification Accuracy: 0.02%.

    Static Weighing Accuracy: 0.2%~0.5%.



    Demension

     Outline Size: 202×305×90mm [W×H×D]

     Mounting Size: 169×271mm [W×H]

    Mounting Hole Size: Ф9mm.

    Menu Operation

    Key Name
    Description
    [MENU]
    [ESC]
    ([LOCK])

    Enter Main Menu.
    Exit.
    Keep it pressed for 2 seconds: Key-locking / Key-unlocking.
    [ENT]
    Enter/Save/Alarm Acknowledge.
    [◄]
    Cursor shifts left.
    [►]
    Cursor shifts right.
    [▲]
    Display the previous option.
    Digit input: +1.
    [▼]
    Display the next option.
    Digit input: -1.


    [G/N]
    APL0 Hopper Weighing Mode: Gross Weight / Net Weight display switch.
    APL1 Ration Feeding/Batching Mode: Gross Weight / Net Weight / Feeding Weight display Switch.
    [A./b./c.]: Feeding Weight of Material M1/M2/M3.
    [t.]: Total Feeding Weight.
    [ZERO]
    [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
    [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
    The controller will switch to Gross Weight display.
    [TARE]
    [≡tArE≡]: Manual Tare without Power-down Protection.
    [-PStr-]: Preset Tare Weight with Power-down Protection.
    [-rStr-]: Clear Tare Weight with Power-down Protection.
    The controller will switch to Net Weight display.
    [CAL]
    [-LoAd-]: Load Calibration.
    [▲][▼]*
    * Keep it pressed for 2 seconds: Setpoint parameters setting.
    [PRINT]
    Print Weighing/Batching Report.
