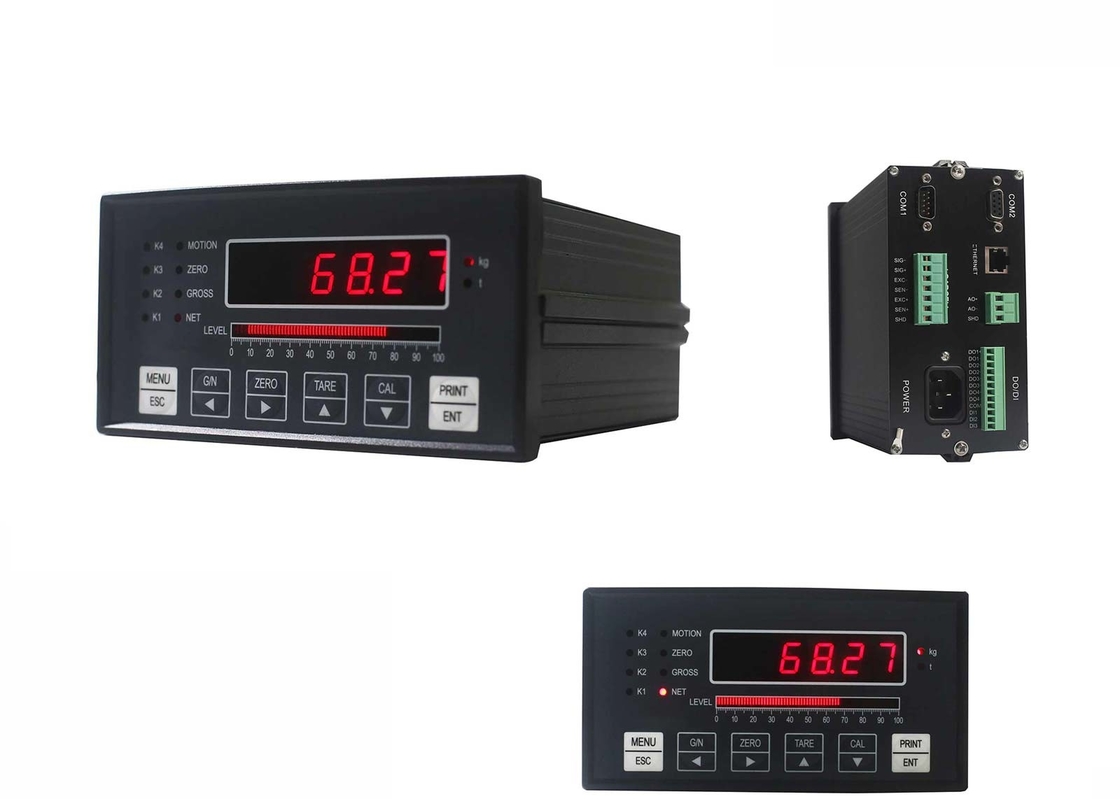

Material Level Weighing Controller Electronic Weighing Indicator For Material Level Scale, Hopper Scale & Platform Scale



     Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.
  • OMIL R76: 2006International Recommendation.
  • Accuracy Grade: III.
  • Verification Accuracy: 0.02%.
  • Static Weighing Accuracy: 0.2%~0.5%.
  • Batching Accuracy: 0.2%~0.5%.
  • Display
  • Model LED: 6 Red LED digital tubes for English character and digit display; 64-segment LED for percent display.
  • Model VFD: 6 Green VFD digital tubes for English character and digit display.
  • Weight Display Range: -99,999~+99,999.
  • Scale Capacity: Setting Range 1~99,999.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
  • Display Resolution: 1/100,000.
  • Weight Unit: Optional kg, t, g, none.
  • Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000.
  • Display Refreshing Time: Setting Range 0.01~1.00s.
  • Kaypad
  • 6-key English keypad.
  • Menu&Shortcut operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  • Signal Input Range: 0~25mV.
  • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 200Hz.
  • Special anti-vibration digital filtering algorithm.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Switch&Analog Signal Interface
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
  • 1 Optional&Definable Analog Signal Output [AO]: 4~20mA, Non-linearity: 0.05%FS.

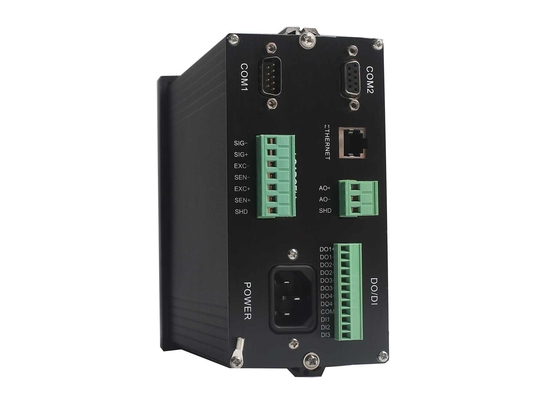

  • Digital Communication Interface
  • Hopper  Platform Scale Material Level Digital Load Controller In High Accuracy With LED RS232 0
  • COM1: Fixed configuration RS232&RS485. Free to use one of them.
  • COM2: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  • Connectable: Host IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Report Print
  • Hopper Weighing Report, Ration Feeding Report and Ration Batching Report can be printed.
  • Operating Specification
  • Optional Operating Voltage
  • Operating Voltage 1: DC24V±20%.
  • Operating Voltage 2: AC220V±15%, 50/60Hz.
  • Model Panel-mounting: Free to configure one of them.
  • Model Wall-mounting / Model Explosion-proof: Free to use one of them.
  • Max. Power Consumption: 10W.
  • Outline Size
  • Model Panel-mounting [DC24V]: 170×91×184mm [W×H×D].
  • Model Panel-mounting [AC220V]: 160×84×188mm [W×H×D].
  • Model Wall-mounting: 202×305×90mm [W×H×D].
  • Model Explosion-proof: 340×390×205mm [W×H×D].
  • Panel Cut-out Size
  • Model Panel-mounting: 151×76mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Application Environment of Model Explosion-proof
  • Explosion gas environment: Zone 1&2.
  • Classes of explosion gas mixture: IIA, IIB.
  • Temperature grades of explosion gas mixture: T1~T6.
  • Ex-mark: Ex d IIB T6 Gb.
  • Protection Level
  • Front Panel of Model Panel-mounting: IP65.
  • Model Wall-mounting: IP65.
  • Model Explosion-proof: IP65.
  • Weight
  • Model Panel-mounting: Approx. 1.5kg.
  • Model Wall-mounting: Approx. 3.4kg.
  • Model Explosion-proof: Approx. 19.2kg.






Hopper  Platform Scale Material Level Digital Load Controller In High Accuracy With LED RS232 1

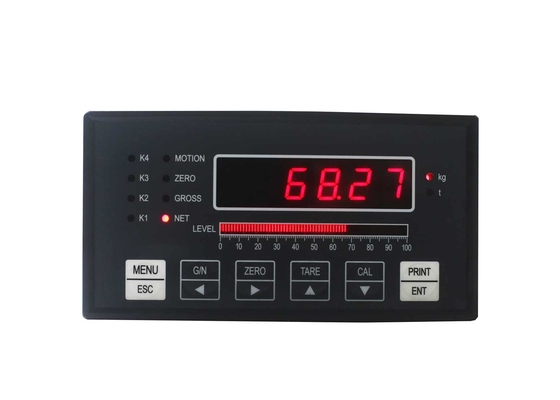

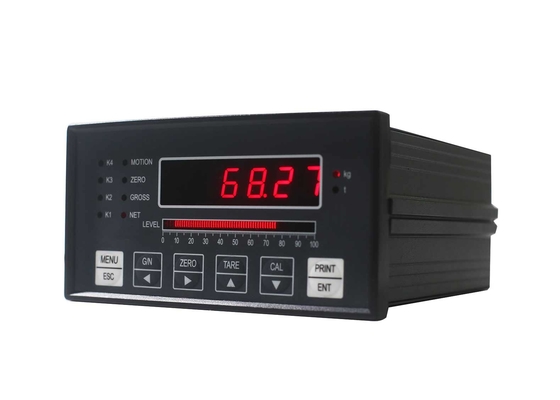

     Model LED Panel-mounting Operation Interface
Hopper  Platform Scale Material Level Digital Load Controller In High Accuracy With LED RS232 2



        Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.


Menu Operation
Key Name Description

【MENU】
【ESC】
(【LOCK】)

Enter Main Menu.

Exit.

Keep it pressed for 2 seconds: Key-locking / Key-unlocking.

【ENT】 Enter/Save/Alarm Acknowledge.
【◄】 Cursor shifts left.
【►】 Cursor shifts right.
【▲】

Display the previous option.
Digit input: +1.

【▼】

Display the next option.
Digit input: -1.

Quick Operation
【G/N】 APL0 Hopper Weighing Mode: Gross Weight / Net Weight display switch.

APL1 Ration Feeding/Batching Mode: Gross Weight / Net Weight / Feeding Weight display Switch.

  • [A./b./c.]: Feeding Weight of Material M1/M2/M3.
  • [t.]: Total Feeding Weight.
【ZERO】
  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.
【TARE】
  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.
【CAL】
  • [-LoAd-]: Load Calibration.
【▲】【▼】* * Keep it pressed for 2 seconds: Setpoint parameters setting.
【PRINT】 Print Weighing/Batching Report.


        Model Panel-mounting Installation
Hopper  Platform Scale Material Level Digital Load Controller In High Accuracy With LED RS232 3

       Hopper Weighing Mode :
       Parameter Setting: [110]APPL=1, [209]APL0=1, 2 or 3.
Hopper  Platform Scale Material Level Digital Load Controller In High Accuracy With LED RS232 4
