DC24V Led Display Controller With AO4-20Ma, Weighing Indicator With RS232 And DO DI For Ration Packing Scale

DC24V Led Display Controller With AO4-20Ma, Weighing Indicator With RS232 And DO DI For Ration Packing Scale

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B66(D)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation

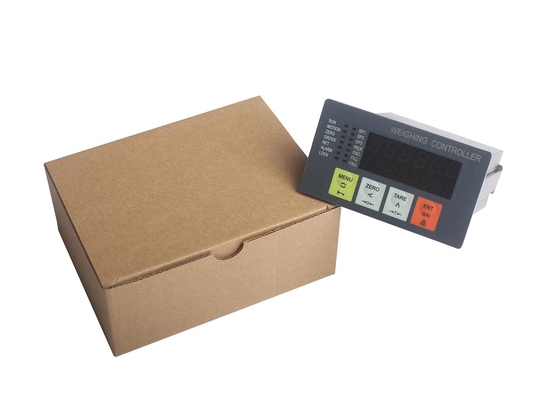

Packaging Details: 1pcs/box
Delivery Time: 3-30 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs per month
Get Best Price Contact Now

Detail Information

Power Supply: DC24V DI: 6
DO: 8 AO: 1
COM1: RS232 COM2: RS485
High Light:

electronic weight indicator

,

digital load controller

Product Description

DC24V Led Display Controller With AO4-20Ma, Weighing Indicator With RS232 And DO DI For Ration Packing Scale




      Main Features:

  • Suitable for Loss-in-weight Ration Packing Scale with Auto Bag-releasing or Manual Bag-releasing and Loss-in-weight Bulk Material Ration Feeding Scale.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
  • 6+8 Red LED digital tubes for English character and digit display.
  • 4-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and occuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • Max. Connection Quantity: 4 Loadcells (350Ω).
  • Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
  • Optional Data Calibration function.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
  • Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
  • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
  • Optional ‘Fall Value Auto Correction’ function.
  • Optional ‘Auto Pause for Deviation Alarm’ function.
  • Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
  • 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

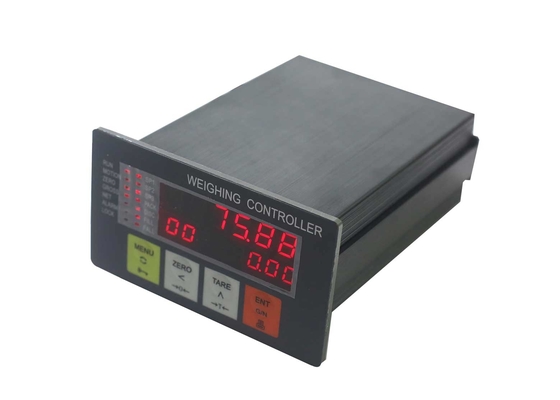

DC24V Led Display Controller With AO4-20Ma, Weighing Indicator With RS232 And DO DI For Ration Packing Scale 0
DC24V Led Display Controller With AO4-20Ma, Weighing Indicator With RS232 And DO DI For Ration Packing Scale 1

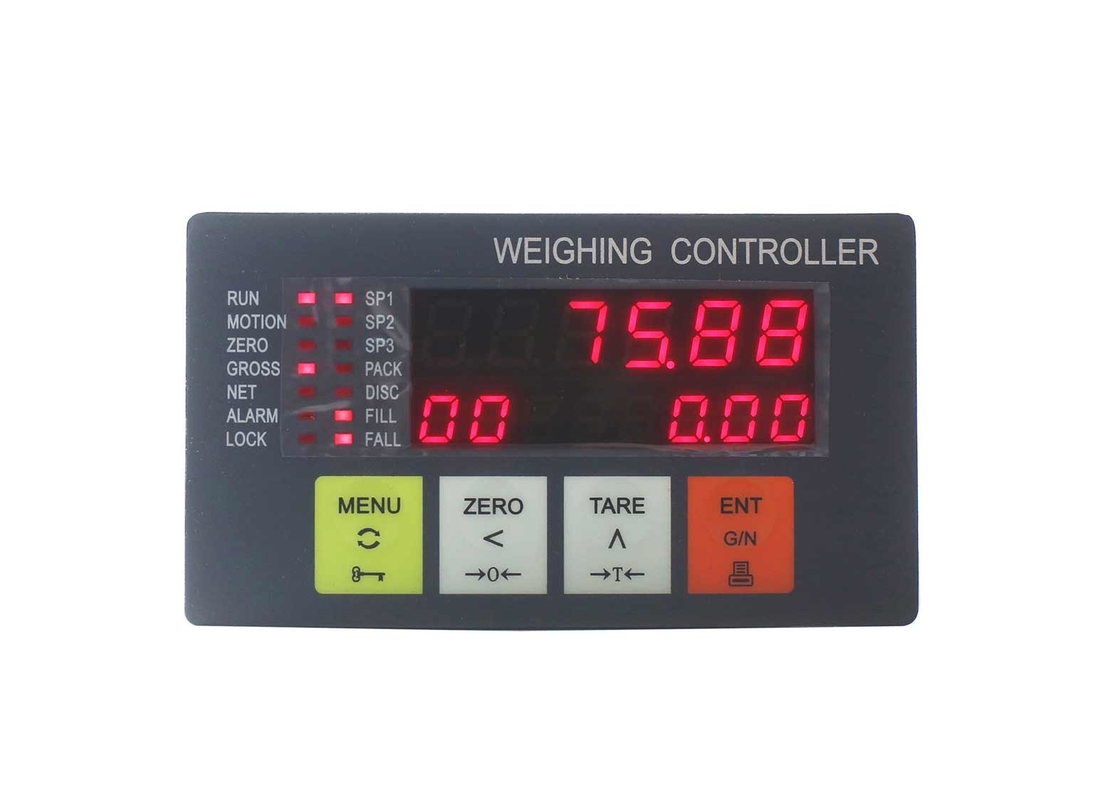

      Model Panel-mounting Operation Interface
DC24V Led Display Controller With AO4-20Ma, Weighing Indicator With RS232 And DO DI For Ration Packing Scale 2

     Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.


Menu Operation
Key NameDescription
【MENU】

Enter Main Menu.
Exit.

【ENT】Enter / Save / Alarm Acknowledge.
【◄】

Cursor shifts left.
Display the previous option.

【►】

Cursor shifts left.
Display the next option.

【▲】

Display the next interface or option.
Digit input: +1 ( 0~9 loop).

【▼】

Display the previous interface or option.
Digit input: -1 ( 0~9 loop).

Quick Operation

【MENU】
【Ñ】
*

  • Key-locking.
  • Key-unlocking.

【◄】
(【SET】)

Recipe parameters setting.

【◄】
【ZERO】
【→0←】
*

  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.

【▲】
【TARE】
【→T←】
*

  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.

【MENU】
【G/N】

Gross Weight / Net Weight display switch.


DC24V Led Display Controller With AO4-20Ma, Weighing Indicator With RS232 And DO DI For Ration Packing Scale 3

DC24V Led Display Controller With AO4-20Ma, Weighing Indicator With RS232 And DO DI For Ration Packing Scale 4
Technical Specifications

  •  Power Supply: DC24V±20%, Max. 5W.
  •  Loadcell Excitation Voltage/Current: DC9V/120mA.
  •  4 Loadcells[350Ω] connectable.
  •  Weighing Signal Input Range: 0~22.5mV.
  •  6 Normally Open Switch Inputs [DI].
  •  8 Normally Open Transistor Outputs [DO]: DC24V, 250mA.
  •  1 Analog Signal Output [AO]: 4~20mA, 0.05%FS.
  •  COM1: RS232.
  •  COM2: RS485.
  •  Connect Host IPC[Modbus] & Remote Display.
  •  Outline Size [W×H×D]: 110 × 62 × 150 mm.
  •  Panel Cut-out Size [W×H]: 94 × 47 mm.
  •  Operating Temperature: -25℃~+45℃.
  •  Protection Level of Front Panel: IP65.
  •  Accuracy Grade: III.
  •  Verification Accuracy: 0.03%.
  •  Static Weighing Accuracy: 0.2%~0.5%.
  •  Packing Accuracy: 0.2%~0.5%.
