    Compact Digital Transmitter Module For Loadcell With RS485 Communication

    Product Details:

    Place of Origin: China
    Brand Name: SUPMETER
    Model Number: AD485-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Delivery Time: 7-10 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 10000pcs/month
    Get Best Price Contact Now

    Detail Information

    Power Supply: DC5~15V, Max 0.25W Operating Temperature: -40℃ To +50℃
    Storage Temperature: -40℃ To +60℃ Relative Humidity: Max. 85%RH
    Weight: Approx. 2g
    High Light:

    digital load cell indicator

    ,

    digital weighing indicator

    Product Description

    Compact Digital Transmitter Module For Loadcell With RS485 Communication



    AD485-B is used for loadcell to transmit analogue signal to digit signal.



    Application:



    1. Transform the analog signal from loadcell to digital signal.

    2. Encapsulat it into the loadcell for making digital loadcell.

    3. For remote host-slave weighing & force-measuring system.



    Communication Function:



    1. Parameter can be set and saved in the EEPROM of the module.

    2. Zero Calibration and Load Calibration via commands.

    3. Data Calibration via setting loadcell’s Sensitivity and Capacity.

    4. The actual weight value can be read after calibration.



    Loadcell Port:



    S-: mV Signal Input -.

    S+: mV Signal Input +.

    E-: Excitation Voltage -.

    E+: Excitation Voltage + [DC5V].



    Digital Communication Port:



    B: RS485 Data-.

    A: RS485 Data +.



    Power Input Port:



    V-: DC Input -.

    V+: DC Input + [DC5~15V]

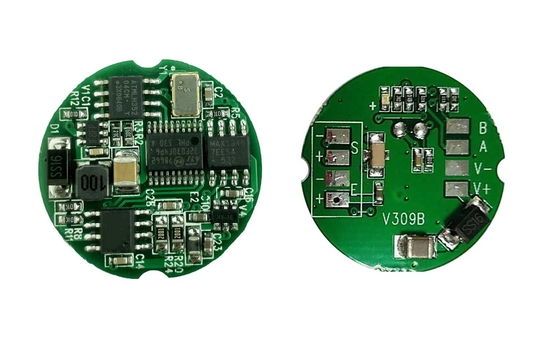

    Compact Digital Transmitter Module For Loadcell With RS485 Communication 0



    Delivery:



    Compact Digital Transmitter Module For Loadcell With RS485 Communication 1
