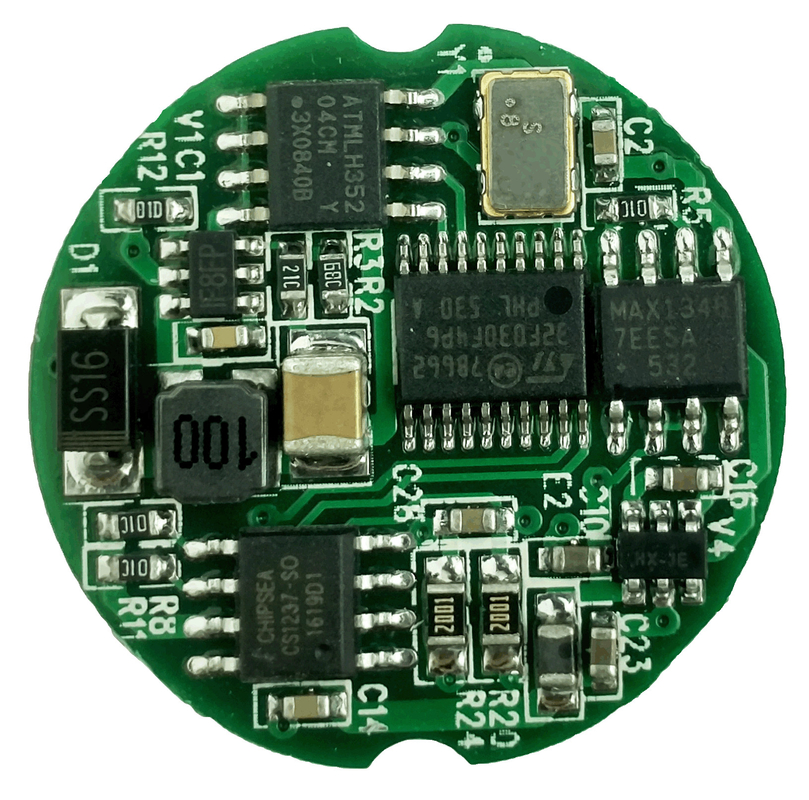

    Force Digital Weight Indicator Transmiting PCB Module With High - Speed

    Product Details:

    Place of Origin: China
    Brand Name: SUPMETER
    Model Number: AD485-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Delivery Time: 7-10 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 10000pcs/month
    Get Best Price Contact Now

    Detail Information

    Communication Protocol: Host-slave Modbus RTU Optional Baud Rate: 9600, 19200[default], 115200bps
    Power Supply: DC5~15V, Max 0.25W
    High Light:

    digital load cell indicator

    ,

    digital weighing indicator

    Product Description

    Force Digital Weight Indicator Transmiting PCB Module With High - Speed





    1. Applications:

       1) Transform the analog signal from loadcell to digital signal.
        2) Encapsulat it into the loadcell for making digital loadcell.
        3) For remote host-slave weighing & force-measuring system.



    2. Technical Specifications:

    CPU & System 32-bit ARM CPU with 48MHz clock & high arithmetic speed
    Excitation Voltage / Max. Current DC5V/20mA
    Signal Input Range ±19.5mV
    Output Sensitivity of Loadcell 1.0~3.5mV/V
    Optional Sampling Frequency 1280Hz, 640Hz, 40Hz [default], 10Hz
    Communication RS485
    Outline Size 25 × 6 mm [Diameter×Thickness]
    Weight Approx. 2g
