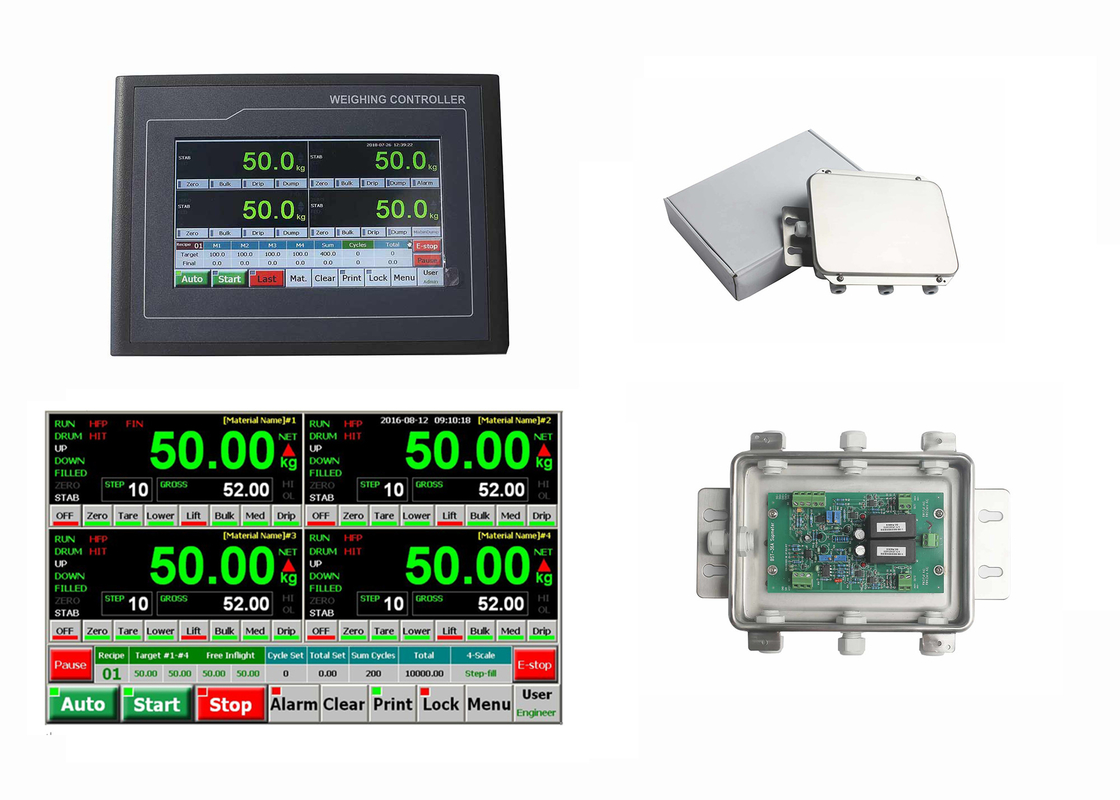

Touch Screen Filling Machine Digital Weight Indicator Controller With Usb Attached
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M10(FU) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 3-10 working day |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500pcs per month |
|
Detail Information |
|||
| Power Supply: | DC24V | DI: | 9 |
|---|---|---|---|
| DO: | 18 | AO: | 2 |
| COM/COM1: | RS232 | Attachment: | USB |
| High Light: | digital load cell indicator,digital weighing indicator |
||
Product Description
Touch Screen Filling Machine Digital Weight Indicator Controller With Usb Attached
TFT-Touch Ration Filling Controller With 4-Scale For Liquit Fillingweigher
. Technical Specifications
Power Supply: DC24V±20%, Max. 10W.
Loadcell Excitation Voltage/Current: DC5V/250mA.
16 Loadcells[350Ω] connectable.
Weighing Signal Input Range: 0~12.5mV.
9 Normally Open Switch Inputs [DI].
18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
COM&COM1: RS232; COM2: RS485.
USB1: Connect mouse, software download, data backup.
LAN: Optional Ethernet.
Outline Size [W×H×D]
7”: 226.5 × 163 × 36 mm.
10.2”: 274 × 193 × 40 mm.
Panel Cut-out Size [W×H]
7”: 215 × 152 mm.
10.2”: 261 × 180 mm.
Operating Temperature: -25℃～+45℃.
Protection Level of Front Panel: IP65.
Accuracy Grade: III.
Verification Accuracy: 0.02%.
Static Weighing Accuracy: 0.2%~0.5%.
Filling Accuracy: 0.2%~0.5%
Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. |
Green: Auto state. Grey: Manual state. |
All Users |
| 【Start】 | Start. |
Green: Running state. Grey: Stop state. |
|
| 【Stop】 | Stop [Valid at Auto-running state]. | ||
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【E-stop】 | Emergency Stop. | ||
| 【Alarm】 |
Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after alarms cleared. |
Red: Alarm state. | |
| 【Print】 | Report Print. | Green: Auto Print is allowed. | |
| 【Lock】 |
Screen-locking: Locking/unlocking the operating buttons of main user interface. Auto Screen-locking: Refer to parameter [901]. |
Flashing Red: Locked. Grey: Unlocked. |
|
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Lower】 | Manual Lower Filling Gun. | Flashing Green: Filling Gun is moving down. | |
| 【Lift】 | Manual Lift Filling Gun. | Flashing Red: Filling Gun is moving up. | |
| 【Bulk】 | Manual Start/Stop Bulk Fill. | Green: Working state. | |
| 【Med】 | Manual Start/Stop Medium Fill. | ||
| 【Drip】 | Manual Start/Stop Dribble Fill. | ||
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing Red. | |
| 【Tare】 | Manual Tare [No Power-down Protection]. | Flashing Red. | |
| 【Clear】 | Clear Screen: Clear the display values of Filling Weight, Totalized Weight and Batch Count. |
Engineer Administrator |
Installation Mode
System Diagram
