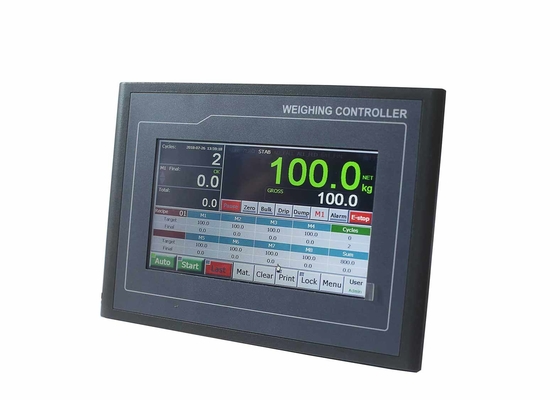

1-16 Materials TFT-Touch Ration Batching Weighing Controller with Single-Scale
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M10[EB] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | 400USD PER PCS |
| Packaging Details: | Carton Packing |
| Delivery Time: | 3 WORKING DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS PER MONTH |
|
Detail Information |
|||
| Material: | Stell | Power: | DC24V |
|---|---|---|---|
| Loadcell: | 16 Loadcells | Com1: | RS232 |
| COM2: | RS485 | ||
| High Light: | batch controller unit,smart load batch controller |
||
Product Description
1-16 Materials TFT-Touch Ration Batching Weighing Controller with Single-Scale
Technical Specifications
- Power Supply: DC24V±20%, Max. 10W.
- Loadcell Excitation Voltage/Current: DC5V/250mA.
- 16 Loadcells[350Ω] connectable.
- Weighing Signal Input Range: 0~12.5mV
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- Sampling Frequency: 800Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
- Gain Drift: ±5ppm/℃.
- Non-linearity: 0.005%FS.
- Switch&Analog Signal Interface
- 9 Definable Normally Open Switch Inputs [DI].
- 12/18 Definable Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA.
- 2 Optional&definable Analog Signal Output [AO]: 0~10V/Max.50mA, Non-linearity: 0.05%FS.
Digital Communication Interface- COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
- COM[RS232] for connecting RS232 Serial Printer with Baud Rate ‘9600bps’, Parity Check ‘None’, 8 Data Bits and 1 Stop Bit.
- USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
- LAN: Optional Ethernet port.
- Outline Size [W×H×D]
- 7”: 226.5 × 163 × 36 mm.
- 10.2”: 274 × 193 × 40 mm.
- Panel Cut-out Size [W×H]
- 7”: 215 × 152 mm.
- 10.2”: 261 × 180 mm.
Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. |
Green: Auto state. Grey: Manual state. |
All Users |
| 【Start】 | Start. |
Green: Running state. Grey: Stop state. |
|
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【Stop】 |
Normal Stop [Last Batch]. Stop after the present batch finished. |
Flashing Red. | |
| 【Pause】 | Pause. | ||
| 【E-stop】 | Emergency Stop. | ||
| 【Alarm】 |
Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after alarms cleared. |
Red: Alarm state. | |
| 【Shift】 |
Batching Hoppers/Materials Shift. Mixer in Weighing Hopper Run Selection While Bulk Feeding. Recipe Display Style in Main User Interfaces. |
Green/Blue: Selected. Grey: Unselected. |
|
| 【Print】 |
Report Print:
|
||
| 【Lock】 |
Screen-locking: Locking/unlocking the operating buttons of main user interface. Auto Screen-locking: Refer to parameter [901]. |
Flashing Red: Locked. Grey: Unlocked. |
|
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing green. | |
| 【Bulk】 | Manual Start/Stop Mn Bulk Feed. | Green: Working state. | |
| 【Drip】 | Manual Start/Stop Mn Dribble Feed. | Green: Working state. | |
| 【Dump】 | Manual Start/Stop Dumping. | Green: Working state. | |
| 【Mn】 | Material Selection for Manual Operation. | ||
| 【MixTank Dump】 | Manual Start/Stop Mixing Tank Dumping. | ||
| 【Clear】 | Clear Screen: Clear the display values of Feeding Weight, Totalized Weight and Batch Count’. |
Engineer Administrator |
Main User Interfaces
