    Power Supply: DC24V DI: 6
    DO: 5 AO: 1
    COM1: RS232 COM2: RS485
    High Light:

    china weighing indicator

    ,

    digital load controller

    Product Description

    Force Measuring Controller Electronic Weighing Indicator With Display Holding And DO Alarm Output



          Technical Specification

    • Executing Standard
    • CMC GB/T 7724-2008PRC National Standard.
    • OMIL R76: 2006International Recommendation.
    • Accuracy Grade: III.
    • Verification Accuracy: 0.03%.
    • Static Force Measuring Accuracy: 0.2%~0.5%.
    • Display
    • 6+8 Red LED digital tubes for English character and digit display.
    • Force Value Display Range: -60,000~+60,000.
    • Force Capacity: Setting Range 1~60,000.
    • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
    • Display Resolution: 1/60,000.
    • Force Value Unit: Optional kg, t, g, none.
    • Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000.
    • Display Refreshing Time: Setting Range 0.01~1.00s.
    • Kaypad
    • Model Panel-mounting: 4-key English keypad.
    • Model Explosion-proof: 6-key English keypad.
    • Menu&Shortcut mode operation with key tone.
    • Loadcell Interface
    • Excitation Voltage/Max. Current: DC9V/120mA [4-350Ω loadcells].
    • Signal Input Range: -22.5~+22.5mV.
    • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
    • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
    • Sampling Frequency: 3200Hz.
    • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
    • Gain Drift: ±5ppm/℃.
    • Non-linearity: 0.005%FS.
    • Switch/Analog Signal Interface
    • 6 Normally Open Switch Inputs [DI].
    • 5 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
    • 1 Optional&Definable Analog Signal Output: 4~20mA, Non-linearity: 0.05%FS.
    • Digital Communication Interface
    • COM1: RS232.
    • COM2: RS485.
    • Connectable: Host IPC/PLC and LED Remote Display.

    • Operating Specification
    • Operating Voltage
    • Model Panel-mounting: DC24V±20%.
    • Model Explosion-proof: AC110~240V, 50/60Hz.
    • Max. Power Consumption: 5W.
    • Outline Size
    • Model Panel-mounting: 110×62×150mm [W×H×D].
    • Model Explosion-proof: 256×290×166mm [W×H×D].
    • Panel Cut-out Size
    • Model Panel-mounting: 94×47 mm [W×H].
    • Operating Temperature: -25℃ to +45℃.
    • Storage Temperature: -30℃ to +60℃.
    • Relative Humidity: Max. 85%RH.
    • Application Environment of Model Explosion-proof
    • Explosion gas environment: Zone 1&2.
    • Classes of explosion gas mixture: IIA, IIB.
    • Temperature grades of explosion gas mixture: T1~T6.
    • Ex-mark: Ex d IIB T6 Gb.
    • Protection Level
    • Front Panel of Model Panel-mounting: IP65.
    • Model Explosion-proof: IP65.
    • Weight
    • Model Panel-mounting: Approx. 0.5kg.
    • Model Explosion-proof: Approx. 9.2kg.



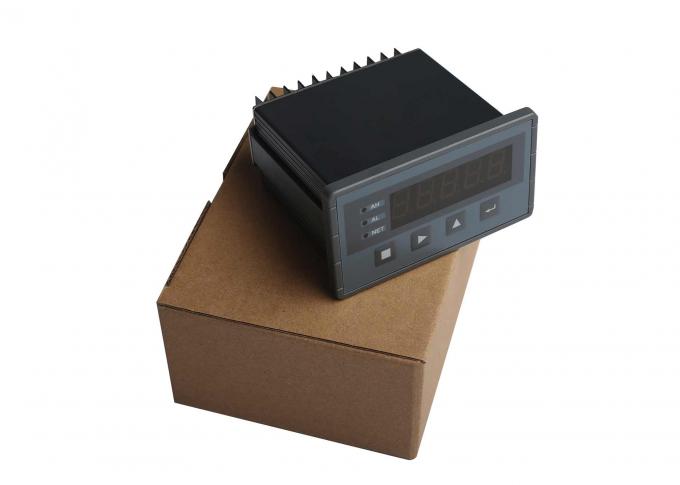

    Measurement Control System Electronic Weight Indicator With Display Holding 0

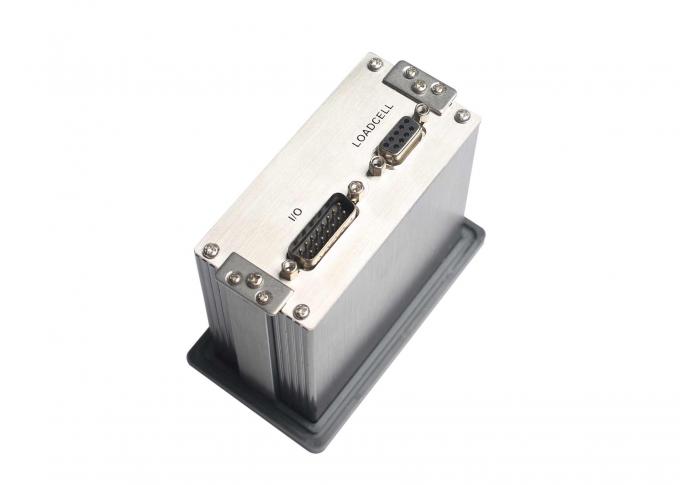

    Measurement Control System Electronic Weight Indicator With Display Holding 1



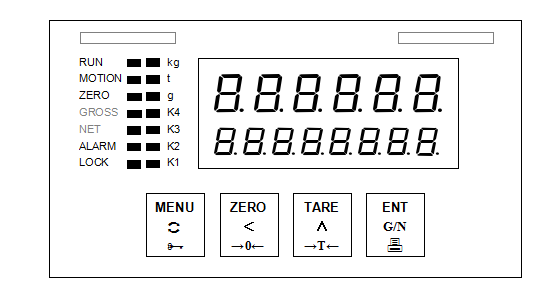

         Model Panel-mounting Operation Interface

    Measurement Control System Electronic Weight Indicator With Display Holding 2



           Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.



    Menu Operation
    Key Name Description
    【MENU】

    Enter Main Menu.

    Exit.

    【ENT】 Enter / Save / Alarm Acknowledge.
    【◄】

    Cursor shifts left.

    Display the previous option.

    【►】

    Cursor shifts left.

    Display the next option.

    【▲】

    Display the next interface or option.

    Digit input: +1 ( 0~9 loop).

    【▼】

    Display the previous interface or option.

    Digit input: -1 ( 0~9 loop).

    Quick Operation

    【MENU】

    【Ñ】

    *

    • Key-locking.
    • Key-unlocking.

    【◄】

    (【SET】)

    Setpoint parameters setting.

    【◄】

    【ZERO】

    【→0←】

    *

    • [-ZEro-]: Zero Calibration with Power-down Protection.
    • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection.

    【ENT】

    (【CLS】)

    *

    Clear Screen: Clear the display value of Peak Hold Value.

    *: Keep the key pressed for 2 seconds.

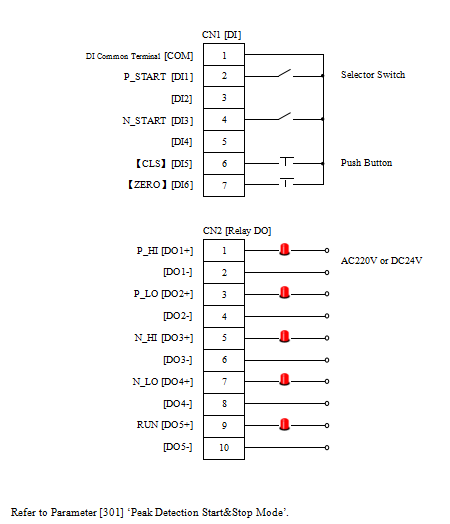

              DI/DO Connection for DI Switch & DI Jump Start&Stop Mode

    Measurement Control System Electronic Weight Indicator With Display Holding 3

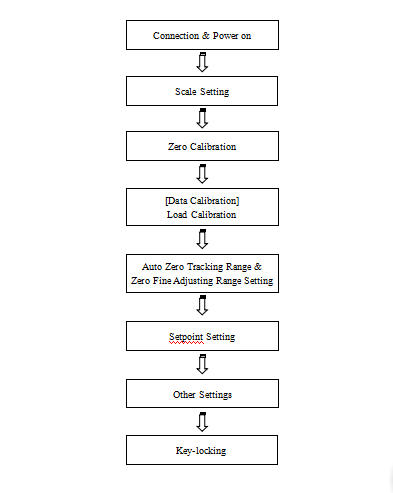

              Operation Procedure

    Measurement Control System Electronic Weight Indicator With Display Holding 4
