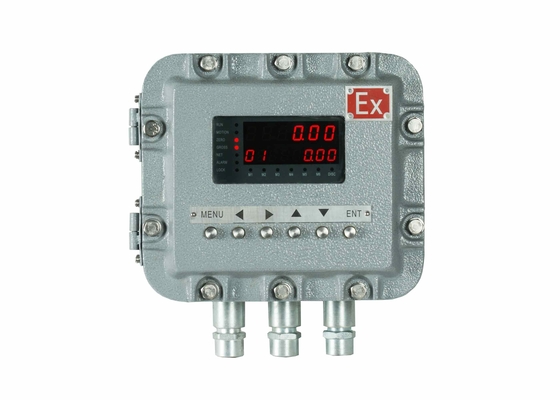

    LED Display With Rs232 Mini Explosion Proof Digital Weight Indicator For 4 Material Ration Batching

    Product Details:

    Place of Origin: China
    Brand Name: Supmeter
    Certification: CE
    Model Number: BST106-B68(U)EX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiation
    Packaging Details: 1pcs/box
    Delivery Time: 1-20 days
    Payment Terms: T/T, Western Union
    Supply Ability: 300pcs per month
    Get Best Price Contact Now

    Detail Information

    Power Supply: DC24V DI: 6
    DO: 8 AO: 1
    COM1: RS232 COM2: RS485
    High Light:

    digital weighing indicator

    ,

    digital display system and indicators

    Product Description

    LED Display With Rs232 Mini Explosion Proof Digital Weight Indicator For 4 Material Ration Batching

    Explosion-proof Digital Weight Indicator for 4-Material Ration Batching Scale





         Technical Specification

    • Executing Standard
    • CMC GB/T 7724-2008PRC National Standard.
    • OMIL R76: 2006International Recommendation.
    • Accuracy Grade: III.
    • Verification Accuracy: 0.03%.
    • Static Weighing Accuracy: 0.2%~0.5%.
    • Batching Accuracy: 0.2%~0.5%.
    • Display
    • LED Display With Rs232 Mini Explosion Proof Digital Weight Indicator For 4 Material Ration Batching 0
    • 6+8 Red LED digital tubes for English character and digit display.
    • Weight Display Range: -99,999~+999,999.
    • Scale Capacity: Setting Range 1~999,999.
    • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
    • Display Resolution: 1/100,000.
    • Weight Unit: Optional kg, t, g, none.
    • Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000.
    • Display Refreshing Time: Setting Range 0.01~1.00s.
    • Kaypad
    • Model Panel-mounting: 4-key English keypad.
    • Model Explosion-proof: 6-key English keypad.
    • Menu&Shortcut mode operation with key tone.
    • Loadcell Interface
    • Excitation Voltage/Max. Current: DC9V/120mA [4-350Ω loadcells].
    • Signal Input Range: 0~22.5mV.
    • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
    • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
    • Sampling Frequency: 400Hz.
    • Special anti-vibration digital filtering algorithm.
    • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
    • Gain Drift: ±5ppm/℃.
    • Non-linearity: 0.005%FS.
    • Switch&Analog Signal Interface
    • 6 Normally Open Switch Inputs [DI].
    • 8 Normally Open Transistor Switch Outputs [DO]: DC24V, 250mA.
    • 1 Optional&Definable Analog Signal Output [AO]: 4~20mA, Non-linearity: 0.05%FS.

    • Digital Communication Interface
    • COM1: RS232.
    • COM2: RS485.
    • Connectable: Host IPC/PLC and LED Remote Display.
    • Operating Specification
    • Operating Voltage
    • Model Panel-mounting: DC24V±20%.
    • Model Explosion-proof: AC110~240V, 50/60Hz.
    • Max. Power Consumption: 5W.
    • Outline Size
    • Model Panel-mounting: 110×62×150mm [W×H×D].
    • Model Explosion-proof: 256×290×166mm [W×H×D].
    • Panel Cut-out Size
    • Model Panel-mounting: 94×47 mm [W×H].
    • Operating Temperature: -25℃ to +45℃.
    • Storage Temperature: -30℃ to +60℃.
    • Relative Humidity: Max. 85%RH.
    • Application Environment of Model Explosion-proof
    • Explosion gas environment: Zone 1&2.
    • Classes of explosion gas mixture: IIA, IIB.
    • Temperature grades of explosion gas mixture: T1~T6.
    • Ex-mark: Ex d IIB T6 Gb.
    • Protection Level
    • Front Panel of Model Panel-mounting: IP65.
    • Model Explosion-proof: IP65.
    • Weight
    • Model Panel-mounting: Approx. 0.5kg.
    • Model Explosion-proof: Approx. 9.2kg.

         Model Explosion-proof Operation Interface

    LED Display With Rs232 Mini Explosion Proof Digital Weight Indicator For 4 Material Ration Batching 1

          Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.



    Menu Operation
    Key Name Description
    【MENU】

    Enter Main Menu.

    Exit.

    【ENT】 Enter / Save / Alarm Acknowledge.
    【◄】

    Cursor shifts left.

    Display the previous option.

    【►】

    Cursor shifts left.

    Display the next option.

    【▲】

    Display the next interface or option.

    Digit input: +1 ( 0~9 loop).

    【▼】

    Display the previous interface or option.

    Digit input: -1 ( 0~9 loop).

    Quick Operation

    【MENU】

    【Ñ】

    *

    • Key-locking.
    • Key-unlocking.

    【◄】

    (【SET】)

    M1~M4 Target Values setting.

    【◄】

    【ZERO】

    【→0←】

    *

    • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
    • [≡ZEro≡] Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
    • The controller will switch to Gross Weight display.

    【▲】

    【TARE】

    【→T←】

    *

    • [≡tArE≡]: Manual Tare without Power-down Protection.
    • [-PStr-]: Preset Tare Weight with Power-down Protection.
    • [-rStr-]: Clear Tare Weight with Power-down Protection.
    • The controller will switch to Net Weight display.

    【ENT】

    【G/N】

    Gross Weight / Net Weight display switch.
    【ENT】

    Pause State:

    • [Cont]: Recover Running.
    • [StoP]: Stop.

    *: Keep the key pressed for 2 seconds.



            Model Explosion-proof Installation

    LED Display With Rs232 Mini Explosion Proof Digital Weight Indicator For 4 Material Ration Batching 2
