Ration Packing Controller Electronic Weighing Indicator For Loss-in-weight Ration Packing Scale



     Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.
  • OMIL R76: 2006International Recommendation.
  • Accuracy Grade: III.
  • Verification Accuracy: 0.02%.
  • Static Weighing Accuracy: 0.2%~0.5%.
  • Packing Accuracy: 0.2%~0.5%.
  • Display
  • 6+10 Green VFD digital tubes for English character and digit display.
  • Weight Display Range: -99,999~+999,999.
  • Scale Capacity: Setting Range 1~999,999.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
  • Display Resolution: 1/100,000.
  • Weight Unit: Optional kg, t, g, none.
  • Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000.
  • Display Refreshing Time: Setting Range 0.01~1.00s.
  • Kaypad
  • 8-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  • Signal Input Range: 0~25mV.
  • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 400Hz.
  • Special anti-vibration digital filtering algorithm.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Switch&Analog Signal Interface
  • 7 Normally Open Switch Inputs [DI].
  • 12 Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA.
  • 1 Optional&Definable Analog Signal Output [AO]: 4~20mA, Non-linearity: 0.05%FS.
  • Digital Communication Interface
  • COM1: RS232.
  • COM2 Optional: RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  • Connectable: Host IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Report Print
  • The present Batch Record can be printed automatically and manually.
  • 1000 Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
  • Operating Specification
  • Optional Operating Voltage
  • Operating Voltage 1: DC24V±20%.
  • Operating Voltage 2: AC85~264V, 50/60Hz.
  • Operating Voltage 3: AC220V±15%, 50/60Hz.
  • Free to configure one of them.
  • Max. Power Consumption: 10W.
  • Outline Size
  • Model Panel-mounting: 164×82×188mm [W×H×D].
  • Model Explosion-proof: 340×390×205mm [W×H×D].
  • Panel Cut-out Size
  • Model Panel-mounting: 153×77mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Application Environment of Model Explosion-proof
  • Explosion gas environment: Zone 1&2.
  • Classes of explosion gas mixture: IIA, IIB.
  • Temperature grades of explosion gas mixture: T1~T6.
  • Ex-mark: Ex d IIB T6 Gb.
  • Protection Level
  • Front Panel of Model Panel-mounting: IP65.
  • Model Explosion-proof: IP65.
  • Weight
  • Model Panel-mounting: Approx. 1.6kg.
  • Model Explosion-proof: Approx. 19.2kg.



     Pictures





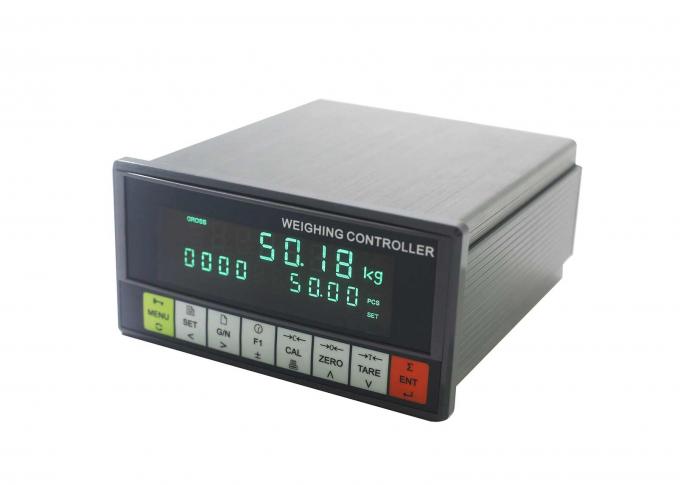

Multifunction Electronic Weighing Indicator For Loss-In-Weight Ration Packing Scale 0

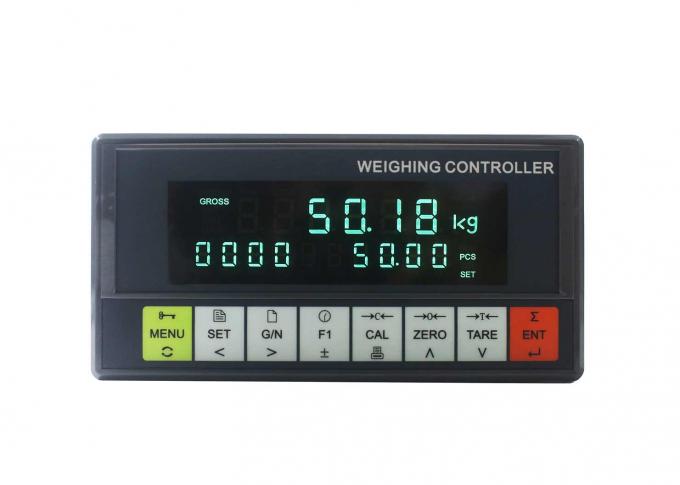

Multifunction Electronic Weighing Indicator For Loss-In-Weight Ration Packing Scale 1

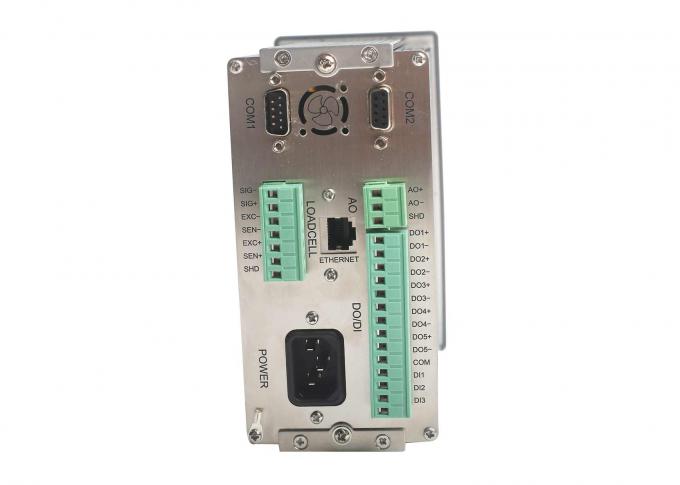

Multifunction Electronic Weighing Indicator For Loss-In-Weight Ration Packing Scale 2

     Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.



Menu Operation
Key Name Description
【MENU】 Enter Main Menu / Exit.
【ENT】 Enter / Save / Alarm Acknowledge.
【◄】 Cursor shifts left.
【►】 Cursor shifts right.
【▲】

Display the previous interface or option.

Digit input: +1.

【▼】

Display the next interface or option.

Digit input: -1.

Quick Operation

【Ñ】

*

  • Key-locking.
  • Key-unlocking.
【SET】 Recipe parameters setting.
【G/N】 Gross Weight / Net Weight display switch.

【→C←】

【CAL】

*

Load Calibration.

【→0←】

【ZERO】

*

  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.

【→T←】

【TARE】

*

  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.
【,】* Record Query.
【/】* Clear Screen: Clear the display value of Feeding Weight, Totalized Weight and Batch Count.
【‡】* Time display and setting.
【±】 ‘+’/‘-’ switch.
【6】

Main Display Interface:

  • [bAt.tAb]: Print Present Batch Record.
  • [tot.tAb]: Print Totalizing Report.
  • [SEt.tAb]: Print Present Recipe.

Record Query state: Print Historical Batch Record.

*: Keep the key pressed for 2 seconds.

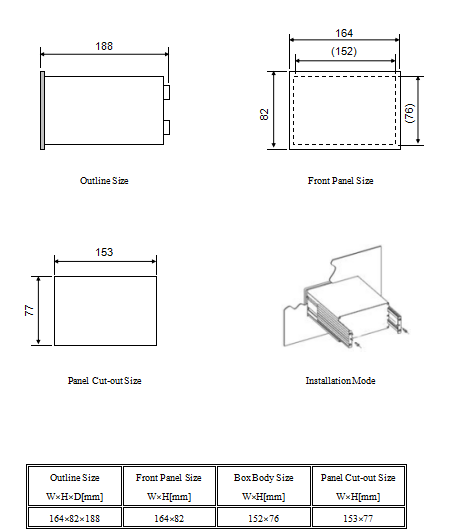

          Model Panel-mounting Installation

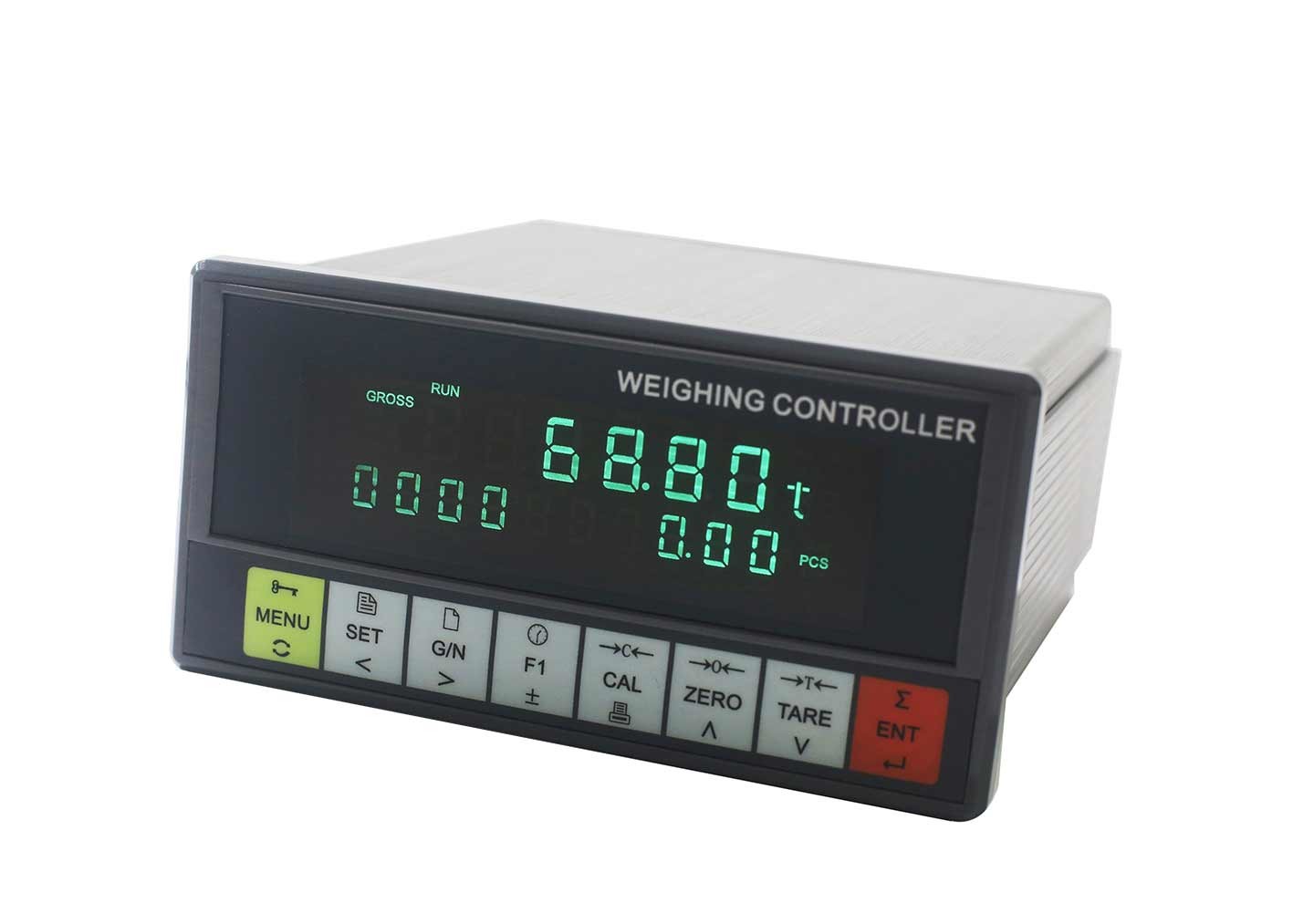

Multifunction Electronic Weighing Indicator For Loss-In-Weight Ration Packing Scale 3
