Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors

China Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors supplier
Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors supplier Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors supplier Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors supplier

Large Image :  Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-N59(B)

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 688-956usd/pcs
Packaging Details: 1set/carton
Delivery Time: 1-3days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Contact Now
Detailed Product Description
Loading Capacity: 1~12 Ton Power Supply: DC24V
Verification Accuracy Of Weighing Indicator: 0.02% Accuracy Of Single-Bucket-Weight: 0.5%~1.0%
Accuracy Of Totalized Loading Weight: 1.0% Product Name: Wheel Loader Weigher/Scales
Oil Pressure Sensor: 2pcs Position Sensor: 1pcs
Printer: 1pcs Customization: Available



Shovel Loader Indicator, Weighing Measuring Controller Shovel Loader Scales For Tractors BST106-N59(B)



Wheel Loader Controller BST106-N59[B] can be used for the loader working on mining, forestry, landscaping, waste or construction application. With Good stability and accuracy. It has been widely exported to dozens of countries, such as USA, Canada, Chile, Agentina, Russia, South Africa, India and so on. We have full experince on exporting, installation and problem handling. We woud like to give you the best service.





Application:



Lonking: 855D, 855, ZL50C, 833D, 855N and so on

XGMA: 955, 951-III and so on

LOVOL: FL956FM, L956F and so on

LiuGong Machinery: 855, ZL50CN, 842 and so on

...............



Suitable for the wheel loader series with loading capacity 1~12 Ton.

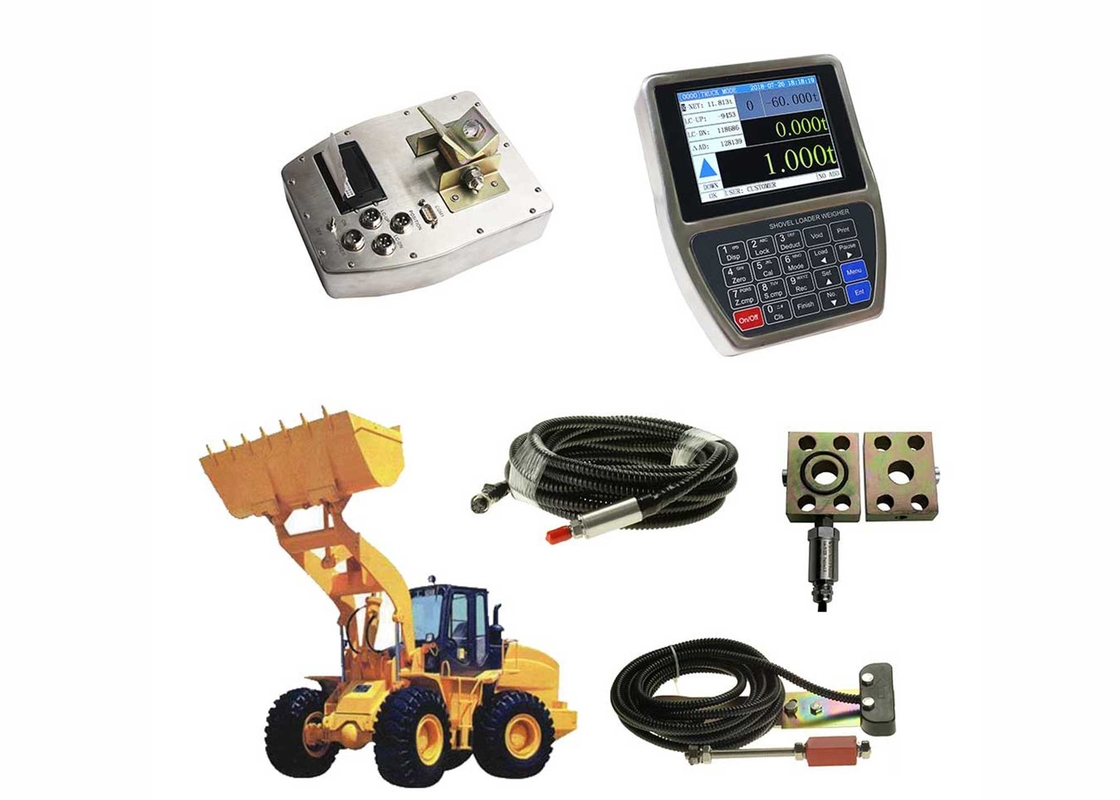

1. Configuration of 1 set Wheel Loader Controller

Weighing Controller with built-in printer 1 pcs
Oil Pressure Sensor 2 pcs
Position Sensor 1 set
Three-way joint 2 pcs



2. Photoes of the attachment:

Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors

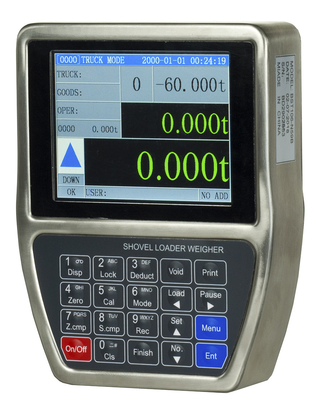

A. Weighing Controller

Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors

Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors

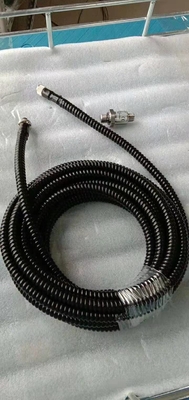

B. Oil Pressure Sensor

Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors



C. Position Sensor

Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors



D. Thee-way Joint

Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors



3. Technical Specification:

a. EMC design with high anti-jam for industrial environment.

b. DC24V power input with reverse polarity protection.

c. 32-bit ARM CPU with 72MHz & higher arithmetic speed.

d. Dust-proof stainless steel shell with protection level IP65.

e. 640×480 TFT display screen with English display and input.

f. 24-bit ∑-△ADC with internal resolution 1/1,000,000.

g. High sampling frequency 400Hz.

h. Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.



4. Keypad:

Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors



5. Menu Operation

Key Name Description
【Menu】 Enter Main Menu / Exit.
【Ent】 Enter / Save.
【◄】 Cursor shifts left. Backspace.
【►】 Cursor shifts right.
【▲】 Cursor shifts up. Display the previous option.
【▼】 Cursor shifts down. Display the next option.



6. Parameter Setting Operation

Key Name Description
【Set】 Setpoint Parameters Setting.
【0~9】 Number Input.
【A-Z】 English Alphabet Input.
【Print】/【IME】 Input Method Switch: Number / English / Chinese PinYin.



7. System Calibration Operation

Key Name Description Authorization
4/【Zero】 Zero Calibration with unloading and idle speed. All Users
7/【Z.cmp】 Zero Compensation with unloading and accelerating. Administrator
5/【Cal】 Span Calibration with loading and idle speed.
8/【S.cmp】 Span Compensation with loading and accelerating.
6/【Mode】 Options: Truck Mode / Mix Mode / Axle Type Mode.



Delivery

Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors

Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors

Weighing Measuring Controller Digital Weight Indicator Shovel Loader Scales For Tractors
