Build In Thermal Printer Shovel Loader Indicator With DC24V Power Supply

China Build In Thermal Printer Shovel Loader Indicator With DC24V Power Supply supplier

Large Image :  Build In Thermal Printer Shovel Loader Indicator With DC24V Power Supply

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-N59[B]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1set/carton
Delivery Time: 3-30 working days
Payment Terms: T/T, Western Union
Supply Ability: 200pcs/month
Contact Now
Detailed Product Description
Power Supply: DC24V±20% Accuracy Grade: III
Verification Accuracy Of Weighing Indicator: 0.02% Accuracy Of Single-Bucket-Weight: 0.5%~1.0%
Accuracy Of Totalized Loading Weight: 1.0%



High Accuracy Of Weighing Indicator in Industry Area

Working Specifications

 Brief Description

  • Check oil pressure sensors and position sensor before starting the wheel loader.
  • Start the wheel loader, then lift the lift-arm and bucket for 5~10 times to preheating the hydraulic oil.
  • BUCKET-UP: Flip the bucket upward to the limit position.
  • ARM-DOWN: Put the lift-arm down so that the bucket goes down to the lowest position.
  • Turn the power switch of weighing indicator on.
  • Press key【Zero】for Zero Calibration.
  • Confirm if there is a need to do System Clibration and Loading Verification.
  • After Loading Verification, press key【Cls】to Clear Screen without saving Loading Record.
  • Press key【Pause】to enter Pause state with red sign ‘■’ displaying, and then let the bucket go down to the lowest position.
  • Set Setpoint Parameters.
  • Press key【Load】to enter loading state with the blue sign ‘▲’ displaying.
  • After shoveling materials into the bucket, flip the bucket upward to the limit position.
  • After the wheel loader reached the loading position with relatively flat ground, lift the lift-arm and bucket with accelerating for weighing.
  • Once alarm occurs, press key【Void】to Cancel Totalizing, then lift the lift-arm and bucket for weighing again.
  • After weighing finished, flip the bucket downward for discharging materials.
  • After Totalized Loading Weight reached setpoint, press key【Finish】to save and print Loading Record, and Clear Screen automatically after Loading process finished.
  • Before going off work, turn the power switch of weighing indicator off at first, then turn the power switch of wheel loader off.



Main Features
 EMC design with high anti-jam for industrial environment.
 DC24V power input with reverse polarity protection.
 32-bit ARM CPU with 72MHz & higher arithmetic speed.
 Dust-proof stainless steel shell with protection level IP65.
 640×480 TFT display screen with English display and input.
 24-bit ∑-△ADC with internal resolution 1/1,000,000.
 High sampling frequency 400Hz.
 Special Anti-vibration Digital Filtering Algorithm for precise
weighing, stable display and rapid response.
 Special Acceleration Compensation Algorithm.
 10000 Loading Records can be saved.
 Each record can contain 50 Single-bucket-loading-weight.

System Configuration

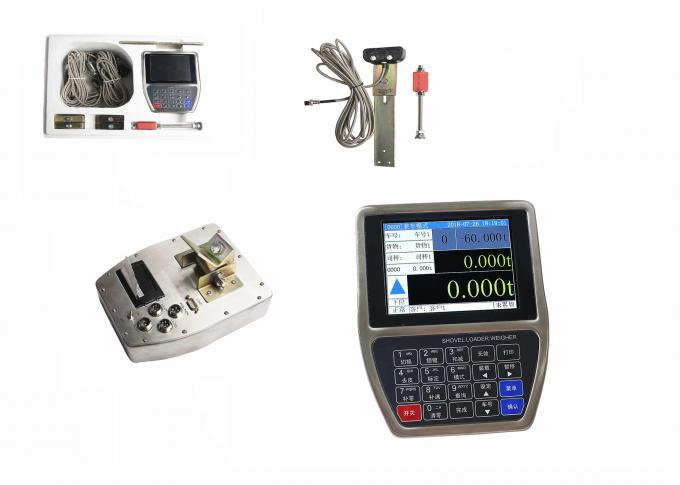

  • 1 Weighing Indicator with Thermal Printer.
  • 1 Position Sensor.
  • 2 Oil Pressure Sensors.
  • 2 Plate Type Three-way Joints.
  • 1 Mounting Fitting.

Applicable Wheel Loaders

Suitable for the wheel loader series with loading capacity 1~12t.





Build In Thermal Printer Shovel Loader Indicator With DC24V Power Supply





Technical Specifications:



Display 640×480 TFT color display screen for English character display
Weight Display Range -99,999~+999,999
System Weighing Range 100~12,000kg
Scale Division Optional 1, 2, 5, 10, 20, 50kg
Display Resolution 1/100,000
Position Sensor Input Interface 2 Switch signal Input
Output Voltage DC12V
Max. Output Current 100mA
Oil Pressure Sensor Interface 2 Switch signal Input
Excitation Voltage/Max.Current DC12V/100mA & DC5V/100mA
Signal Input Range Optional 0~20mV, 0~5V[Factory Set Value]
∑-△ADC 24-bit, 1,000,000 internal code used
Sampling Frequency 400Hz
Non-linearity 0.005%FS
Digital Communication Interface COM1 RS232
Report Print 10000 Loading Records can be saved, queried and printed, and each record can contain 50pcs Single-bucket-loading-weight value
IP Grade IP65





Keypad Operation

  • Build In Thermal Printer Shovel Loader Indicator With DC24V Power Supply
