Concrete Ration Batch Weighing Controller With VFD Display RS232 Communication

China CHANGSHA SUPMETER TECHNOLOGICAL CO.,LID certifications
China CHANGSHA SUPMETER TECHNOLOGICAL CO.,LID certifications
I'm Online Chat Now

Concrete Ration Batch Weighing Controller With VFD Display RS232 Communication

Concrete Ration Batch Weighing Controller With VFD Display RS232 Communication
Concrete Ration Batch Weighing Controller With VFD Display RS232 Communication Concrete Ration Batch Weighing Controller With VFD Display RS232 Communication Concrete Ration Batch Weighing Controller With VFD Display RS232 Communication Concrete Ration Batch Weighing Controller With VFD Display RS232 Communication

Large Image :  Concrete Ration Batch Weighing Controller With VFD Display RS232 Communication

Product Details:

Place of Origin: CHINA
Brand Name: Supmeter
Certification: CE
Model Number: BST106-H18[F]

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: 150USD PER PCS
Packaging Details: CARTON PACKING
Delivery Time: 3 WORKING DAYS
Payment Terms: T/T
Supply Ability: 1000 PCS PER MONTH
Detailed Product Description
Display: VFD Communication: RS232
Static Weighing Accuracy: 0.03%
High Light:

batch controller unit

,

smart load batch controller

     Concrete Ration Batching Controller with RS232 Communication With 6and 10 Green VFD digital

  BST106-H18[F] Weighing Controller

    For: Ration Batching Scale with 5-Material&2-Speed Feeding
     [Single-Scale Mode]



       Main Features:

  • Suitable for Ration Batching Scale with 4-Material&2-Speed Feeding [Single-Scale Mode].
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  •  32-bit ARM CPU with 48MHz clock & higher arithmetic speed.

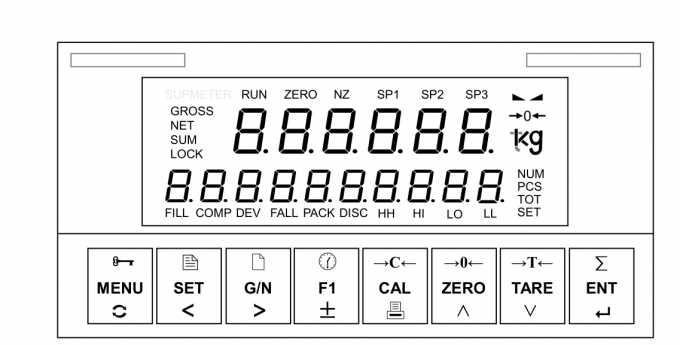

  •  6+8 Red LED digital tubes for English character and digit display.
  •  4-key English keypad.
  • Concrete Ration Batch Weighing Controller With VFD Display RS232 Communication 0
  • Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal
  • resolution and sampling frequency 400Hz.
  •  Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy
  • when there is strong vibration on the load receptor, and the rapid response capability when the
  • weight signal changes.
  •  Max. Connection Quantity: 4 Loadcells (350Ω).
  •  Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero
  • Calibration and Load Calibration functions available.



Concrete Ration Batch Weighing Controller With VFD Display RS232 Communication 1

  • Optional Data Calibration function.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing
  • functions available.

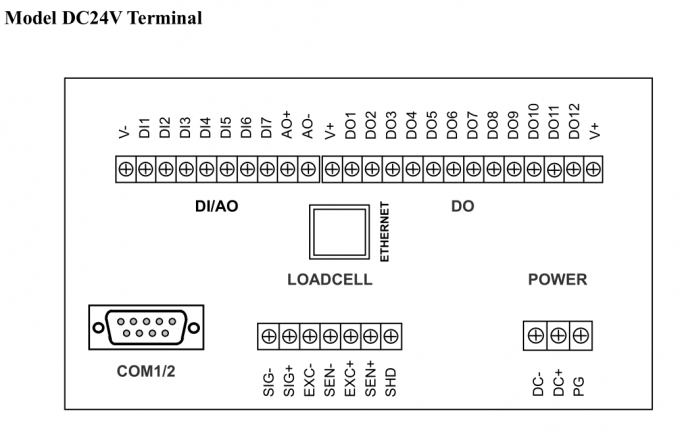

  • 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
  •  Optional ‘High/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes:
  • Continuous Feeding Mode and Inching Feeding Mode.
  • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Low
  • Speed Feed’ control.Optional ‘Fall Value Auto Correction’ function.
  •  Optional ‘Fall Value Auto Correction’ function.
  •  Optional ‘Auto Pause for Deviation Alarm’, ‘Auto Pause for Gross Weight Upper Limit Alarm’
  • and ‘Manual Pause’ functions.
  • Optional ‘Target Batch Control’ function [With Target Batch Count finished, the batching
  • process will stop automatically].
  • Batching Process Power-off Protection’ function available.
  • One Batch Record can be queried.
  •  2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote
  • Display.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter
  • setting and the other operations.
  •


Concrete Ration Batch Weighing Controller With VFD Display RS232 Communication 2

 Outline Size [W×H×D]: 110 × 62 × 150 mm.
 Panel Cut-out Size [W×H]: 94 × 47 mm.
