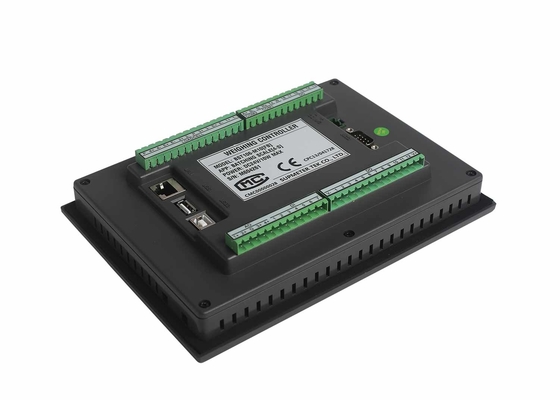

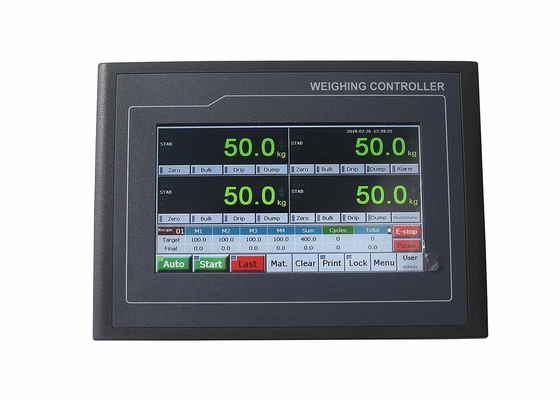

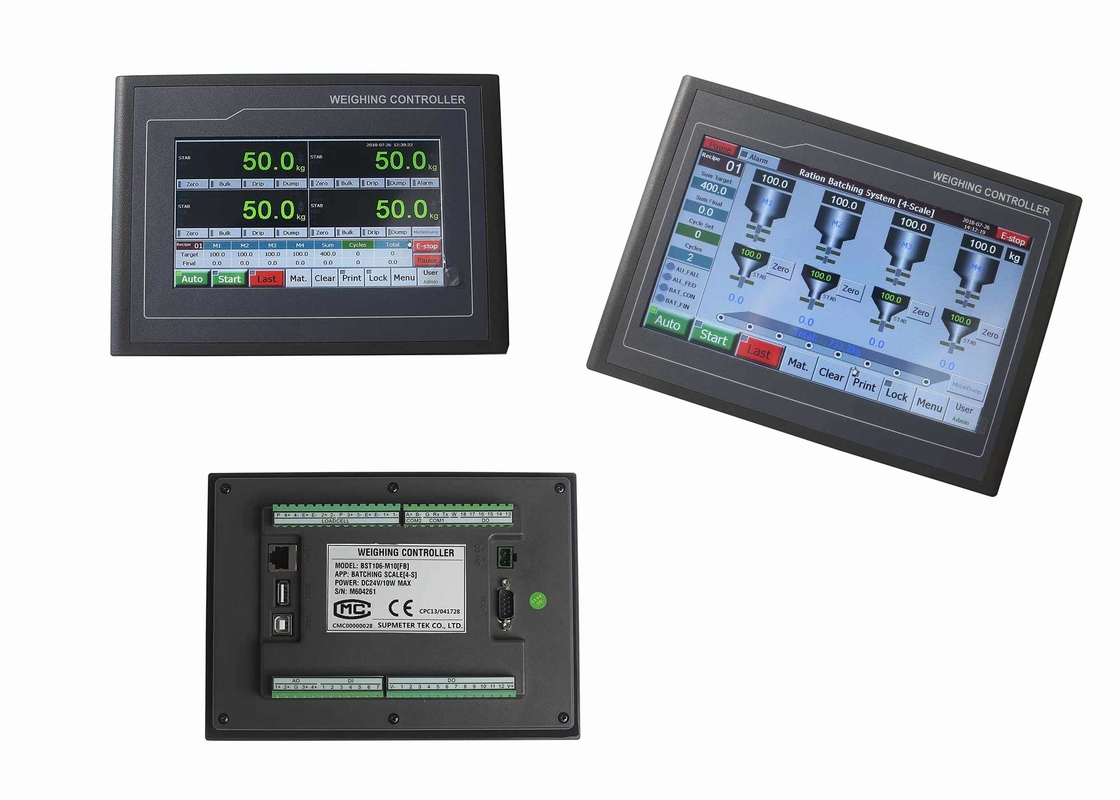

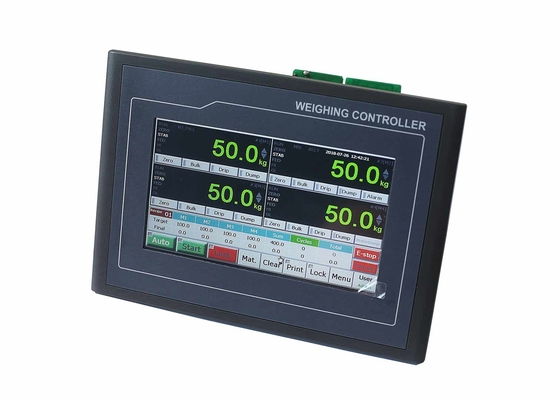

Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material

Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material

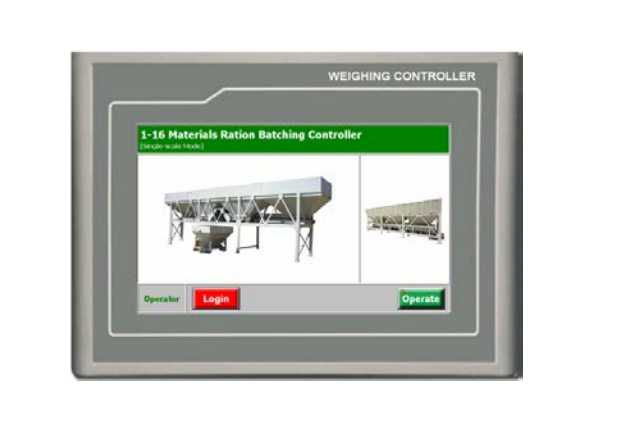

Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material

Large Image :  Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material

Product Details:

Place of Origin: CHINA
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10[FB]

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 400USD PER PCS
Packaging Details: Carton Packing
Delivery Time: 3 WORKING DAYS
Payment Terms: T/T
Supply Ability: 1000PCS PER MONTH
Detailed Product Description
Material: Stell Power: DC24V
Loadcell: 16 Loadcells Com1: RS232
COM2: RS485
High Light:

batch controller unit

,

smart load batch controller

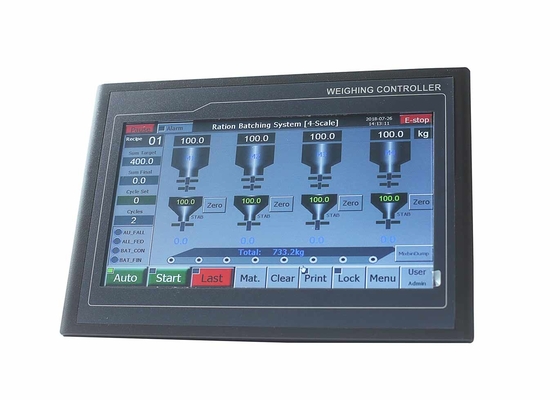

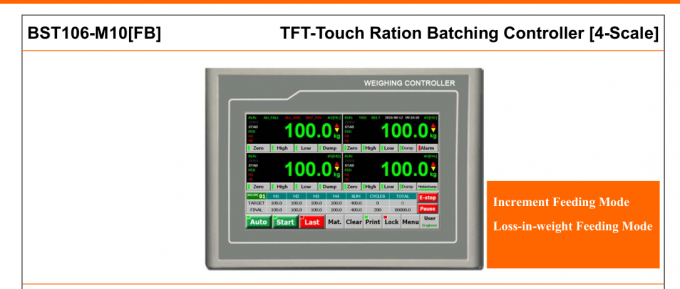

Loss In Weight Feeding TFT -Touch Ration Batching Controller For 4 material For 4 Scale

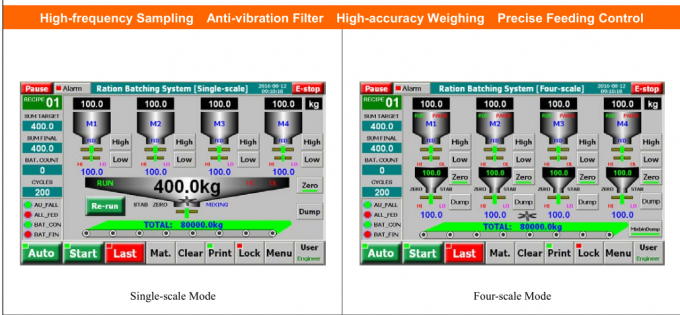

Loss-In-Weight Ration Mixture-Dumping Control

Ration Batching Scale With 1-16Materials [Single -scale ]

Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material 0

    Main Applications

  •  Ration Batching Scale with 1-16 materials [Single-scale].
     Loss-in-weight Ration Mixture-dumping Control.
  • Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material 1
  • Main Features
  • EMC design with high anti-jam for industrial environment.
  •  DC24V power input with reverse polarity protection.
  • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
  •  7” [800×480] or 10.2” [1024×600] TFT touch panel.
  •  24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise
  •  weighing, stable display and rapid response.
  •  Auto Zero Tracking.
  •  Load Calibration and Loss Calibration.
  •  Fall Value Auto Correction.
  •  Auto Re-feed for negative deviation alarm.
  • Target Batch Count Control.
  • Auto Pause for Gross Weight Upper Limit & Deviation Alarm.
  • ‘Manual Pause’ Operation.
  • 2-speed[high/low] feeding control by DOs or AOs.
  • Definable DI/DO/AO/COM[Communication Port].
  •  Recipe Number: 100
  • Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material 2

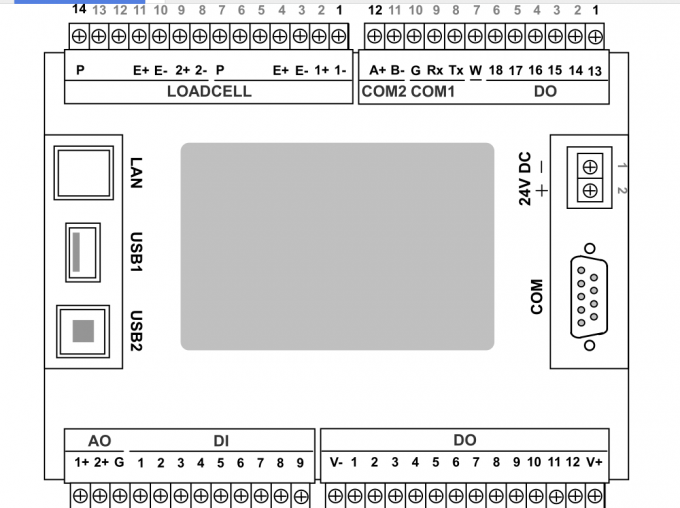

Technical Specifications

  • Power Supply: DC24V±20%, Max. 10W.
  •  Loadcell Excitation Voltage/Current: DC5V/250mA.
  •  16 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~12.5mV.
  •  7 Normally Open Switch Inputs [DI].
  • 18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
  •  4 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
  • COM&COM1: RS232; COM2: RS485.
  • USB1: Connect mouse, software download, data backup.
  •  LAN: Optional Ethernet.
  •
  • Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material 3
  •
  • Outline Size [W×H×D]
  •  7”: 226.5 × 163 × 36 mm.
  •  10.2”: 274 × 193 × 40 mm.
  •  Panel Cut-out Size [W×H]
  •  7”: 215 × 152 mm.
  •  10.2”: 261 × 180 mm.
  • Operating Temperature: -25℃~+45℃.
  •  Protection Level of Front Panel: IP65.
  • Accuracy Grade: III.
  •  Verification Accuracy: 0.02%.
  • Static Weighing Accuracy: 0.2%~0.5%.
  • Batching Accuracy: 0.2%~0.5%
  • Ration Batch Controller Unit Fall Value Auto Correction For 4 Scale / 4 Material 4
