2 Material Ration Batching Controller , Digital Weight Indicator Controller

China 2 Material Ration Batching Controller , Digital Weight Indicator Controller supplier
2 Material Ration Batching Controller , Digital Weight Indicator Controller supplier 2 Material Ration Batching Controller , Digital Weight Indicator Controller supplier 2 Material Ration Batching Controller , Digital Weight Indicator Controller supplier 2 Material Ration Batching Controller , Digital Weight Indicator Controller supplier

Large Image :  2 Material Ration Batching Controller , Digital Weight Indicator Controller

Product Details:

Place of Origin: CHINA
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10[EB]

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 400USD PER PCS
Packaging Details: Carton Packing
Delivery Time: 3 WORKING DAYS
Payment Terms: T/T
Supply Ability: 1000PCS PER MONTH
Contact Now
Detailed Product Description
Material: Stell Power: DC24V
Loadcell: 16 Loadcells Com1: RS232
COM2: RS485

2 Material Single Scale TFT -Touch Ration Batching Controller With USB Comminication Port

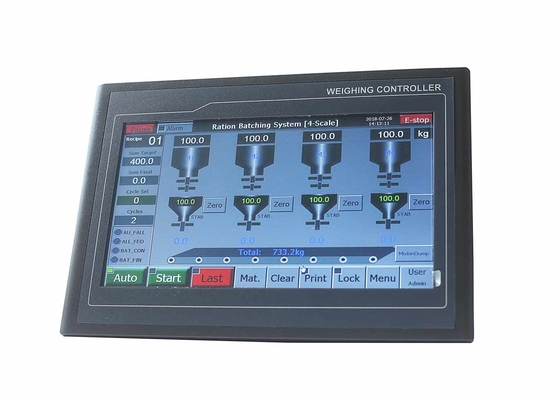

TFT-Touch Ration Batching Controller [4-scale]



2 Material Ration Batching Controller , Digital Weight Indicator Controller



Main Applications

  •   Ration Batching Scale with 1-16 materials [Single-scale].
     Loss-in-weight Ration Mixture-dumping Control.
  • 2 Material Ration Batching Controller , Digital Weight Indicator Controller
  • Main Features
  •  EMC design with high anti-jam for industrial environment.
  •  DC24V power input with reverse polarity protection.
  •  Cortex-A8 CPU with 600MHz Clock, 128M Flash.
  •  7” [800×480] or 10.2” [1024×600] TFT touch panel.
  •  24-bit ∑-△ADC with internal resolution 1/1,000,000.
  •  High sampling frequency 800Hz.
  •  Special Anti-vibration Digital Filtering Algorithm for precise
  •      weighing, stable display and rapid response.
  •  Auto Zero Tracking.
  •  Load Calibration and Loss Calibration.
  •  Fall Value Auto Correction.
  •  Auto Re-feed for negative deviation alarm.
  •  Target Batch Count Control.
  •  Auto Pause for Gross Weight Upper Limit & Deviation Alarm.
  •  ‘Manual Pause’ Operation.
  •  2-speed[high/low] feeding control by DOs or AOs.
  •  Definable DI/DO/AO/COM[Communication Port].
  •     Recipe Number: 100
  • 2 Material Ration Batching Controller , Digital Weight Indicator Controller

Technical Specifications

  •  Power Supply: DC24V±20%, Max. 10W.
  •  Loadcell Excitation Voltage/Current: DC5V/250mA.
  •  16 Loadcells[350Ω] connectable.
  •  Weighing Signal Input Range: 0~12.5mV.
  •  9 Normally Open Switch Inputs [DI].
  •  18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
  •  2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
  •  COM&COM1: RS232; COM2: RS485.
  •  USB1: Connect mouse, software download, data backup.
  •  LAN: Optional Ethernet.
  • 2 Material Ration Batching Controller , Digital Weight Indicator Controller
  •  Outline Size [W×H×D]
  •  7”: 226.5 × 163 × 36 mm.
  •  10.2”: 274 × 193 × 40 mm.
  •  Panel Cut-out Size [W×H]
  •  7”: 215 × 152 mm.
  •  10.2”: 261 × 180 mm.
  •  Operating Temperature: -25℃~+45℃.
  •  Protection Level of Front Panel: IP65.
  •  Accuracy Grade: III.
  •  Verification Accuracy: 0.02%.
  •  Static Weighing Accuracy: 0.2%~0.5%.
  •  Batching Accuracy: 0.2%~0.5%
  • 2 Material Ration Batching Controller , Digital Weight Indicator Controller
