Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2

China Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2 supplier
Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2 supplier Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2 supplier Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2 supplier Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2 supplier

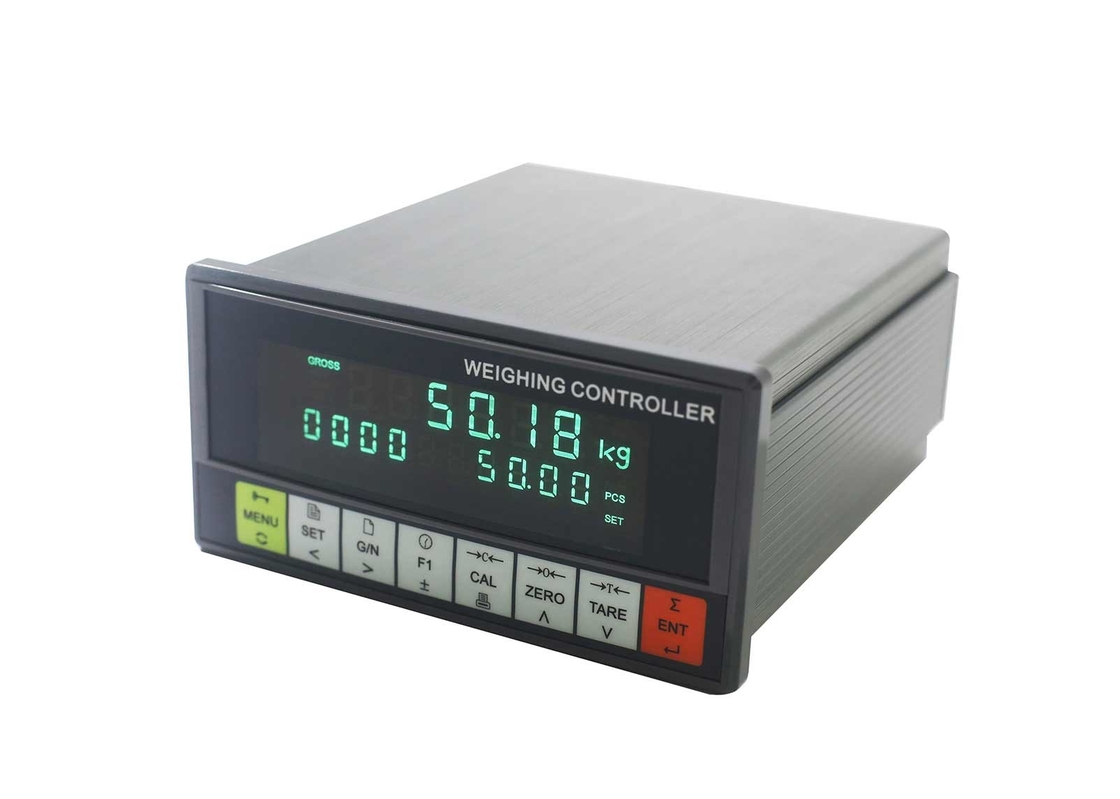

Large Image :  Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-H16(D)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-30 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Power Supply: AC85-264V DI: 7
DO: 12 AO: 1
COM1: RS232 COM2: RS232/RS485/Ethernet

Ration Packing Electronic Weighing Indicator For Loss-in-weight Ration Packing Scale





      Main Features:

  • Suitable for Loss-in-weight Ration Packing Scale with Auto Bag-releasing or Manual Bag-releasing and Loss-in-weight Bulk Material Ration Feeding Scale.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 72MHz clock & higher arithmetic speed.
  • 6+10 green VFD digital tubes for English character and digit display.
  • 8-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • Max. Connection Quantity: 8 Loadcells (350Ω).
  • Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
  • Optional Data Calibration function.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 7 Normally open switch inputs [DI] and 12 normally open transistor switch outputs [DO].
  • Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
  • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
  • 10 Recipes for packing/feeding control.
  • Optional ‘Fall Value Auto Correction’ function.
  • Optional ‘Auto Pause while Deviation Alarming’ function.
  • Optional ‘Target Batch & Target Totalized Weight Control’ function [With Target Batch Finished or Target Totalized Weight Finished, the packing process will stop automatically].
  • 2 Optional communication ports for connecting Host IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • The present Batch Record can be printed automatically and manually.
  • 1000 Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

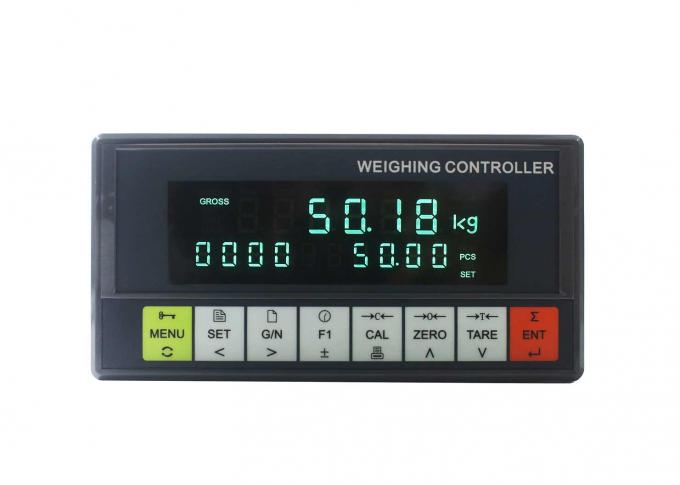

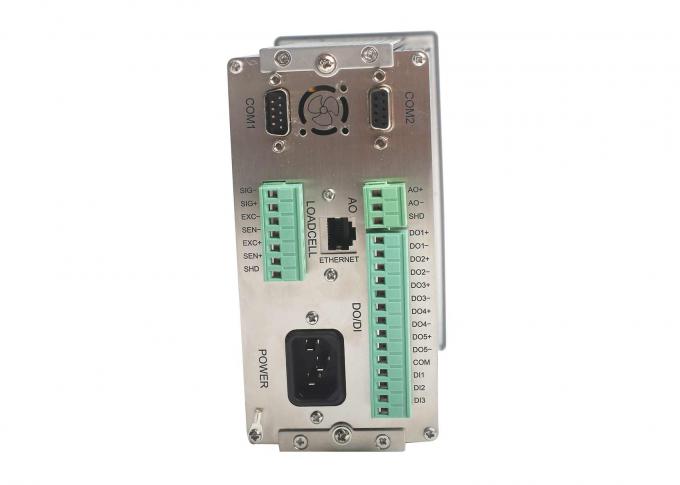

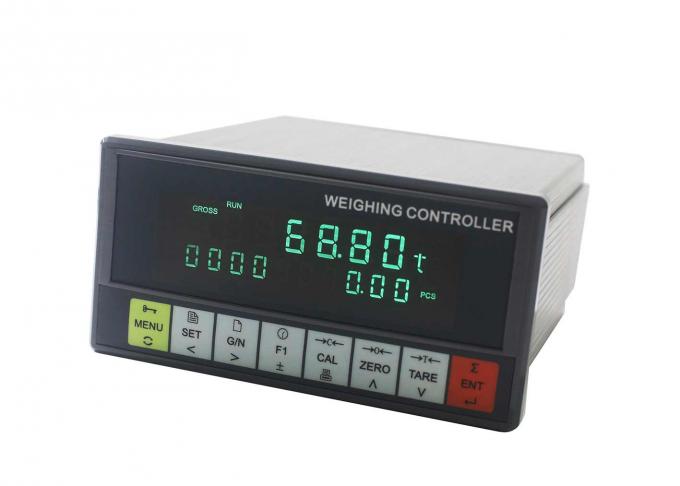

     Pictures



Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2

Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2

Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2

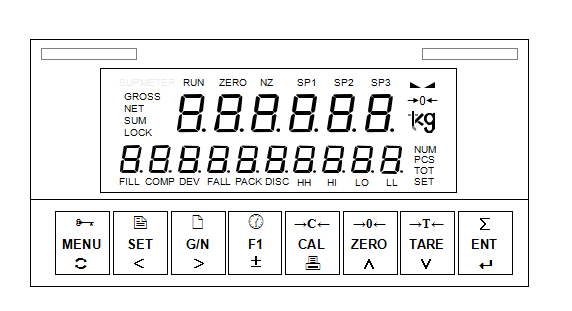

      Model Panel-mounting Operation Interface

Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2



       Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.



Menu Operation
Key Name Description
【MENU】 Enter Main Menu / Exit.
【ENT】 Enter / Save / Alarm Acknowledge.
【◄】 Cursor shifts left.
【►】 Cursor shifts right.
【▲】

Display the previous interface or option.

Digit input: +1.

【▼】

Display the next interface or option.

Digit input: -1.

Quick Operation

【Ñ】

*

  • Key-locking.
  • Key-unlocking.
【SET】 Recipe parameters setting.
【G/N】 Gross Weight / Net Weight display switch.

【→C←】

【CAL】

*

Load Calibration.

【→0←】

【ZERO】

*

  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.

【→T←】

【TARE】

*

  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.
【,】* Record Query.
【/】* Clear Screen: Clear the display value of Feeding Weight, Totalized Weight and Batch Count.
【‡】* Time display and setting.
【±】 ‘+’/‘-’ switch.
【6】

Main Display Interface:

  • [bAt.tAb]: Print Present Batch Record.
  • [tot.tAb]: Print Totalizing Report.
  • [SEt.tAb]: Print Present Recipe.

Record Query state: Print Historical Batch Record.

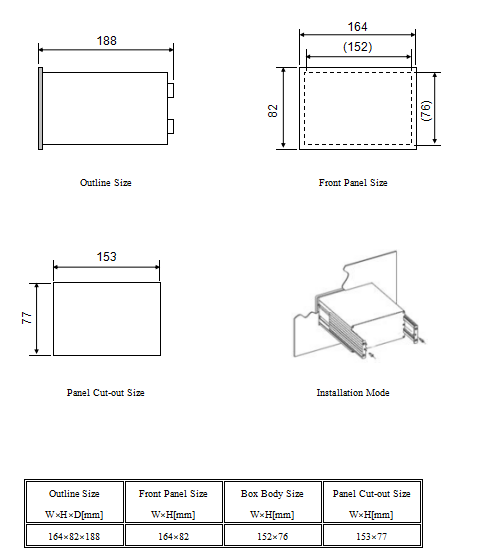

       Model Panel-mounting Installation

Ration Packing Electronic Weighing Indicator RS232 / RS485 / Ethernet COM2
