1-Scale TFT-Touch Electronic Weighing Indicator For Ration Batching Scale With 1-16 Materials





      Main Features:

  • Suitable for Ration Batching Scale with 14-Material&2-Speed Feeding or 16-Material&1-Speed Feeding [Single-scale Mode].
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
  • 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
  • Loadcell Interface
  • Max. Connection Quantity: 16 Loadcells (350Ω).
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • I/O Interface
  • 9 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
  • Optional ‘High/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
  • 2 Definable analog signal AO[0~10V] for weight signal output or ‘High/Low Speed Feed’ control.
  • Digital Communication Interface
  • COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
  • COM[RS232] for connecting RS232 Serial Printer.
  • USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
  • Software Function
  • Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
  • Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
  • Load Calibration and Loss Calibration functions available.
  • 10 Recipes for batching control.
  • Optional ‘Fall Value Auto Correction’ function.
  • Optional ‘Auto Pause for Deviation Alarm’, ‘Auto Pause while Gross Weight Upper Limit Alarming’, ‘Manual Pause’ and ‘Auto Re-feed’ functions.
  • Optional ‘Target Batch Control’ function [With Target Batch Count finished, the batching process will stop automatically].
  • The Batch Records can be printed automatically.
  • Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.



     Pictures

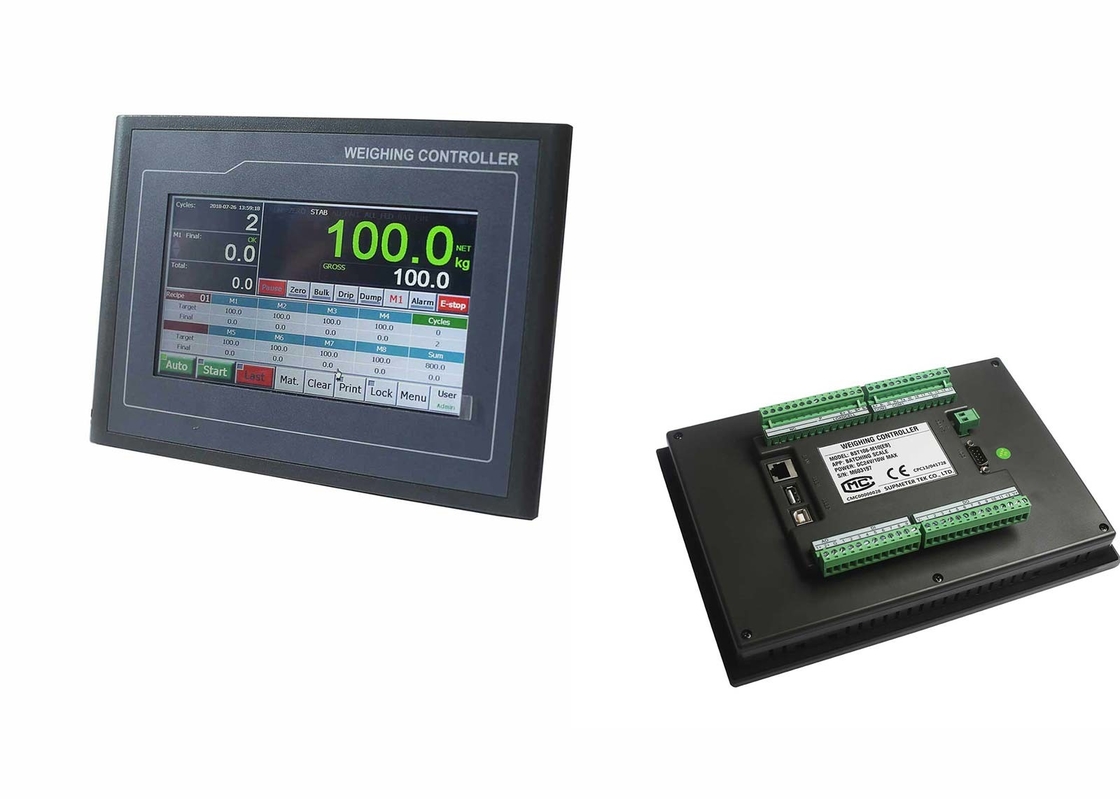

High Anti - Jamming Capability Electronic Weighing Indicator With 1-16 Materials 0

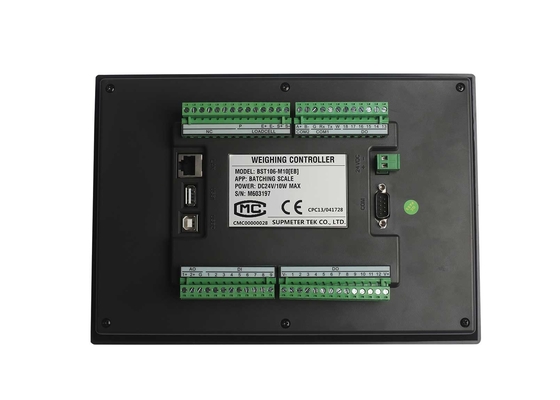

High Anti - Jamming Capability Electronic Weighing Indicator With 1-16 Materials 1

High Anti - Jamming Capability Electronic Weighing Indicator With 1-16 Materials 2

High Anti - Jamming Capability Electronic Weighing Indicator With 1-16 Materials 3

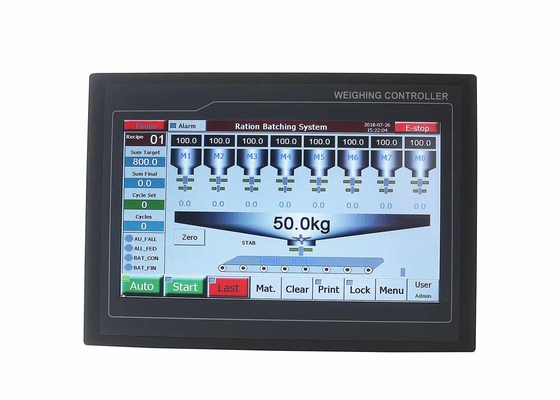

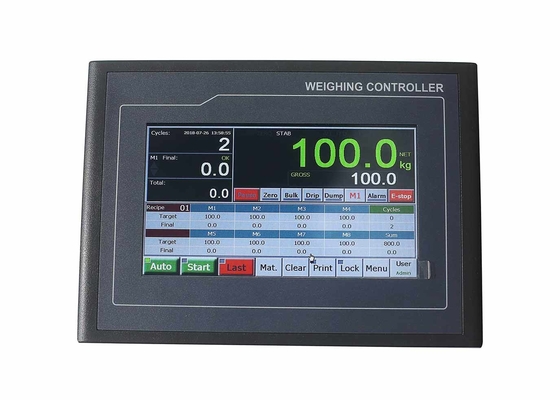

      Main Operation Interface

High Anti - Jamming Capability Electronic Weighing Indicator With 1-16 Materials 4

High Anti - Jamming Capability Electronic Weighing Indicator With 1-16 Materials 5



           Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Re-run】 Clear Alarm & Recover Running.
【Last】

Last Batch [Normal Stop].

Stop after the present batch finished.

Flashing Red.
【Pause】 Pause.
【E-stop】 Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after clearing alarm.

Red: Alarm state.
【Mat.】

Material Selection for Auto-Batching.

Mixer in Weighing Hopper Running Selection While High-speed Feeding.

Green/Blue: Selected.

Grey: Unselected.

【Print】

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Working Recipe.

【Lock】

Screen-locking: Locking/unlocking the operating buttons of main display interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Zero】 Zero Fine Adjustment [No Power-down Protection]. Flashing green.
【High】 Manual Start/Stop Mn High-speed Feeding. Green: Working state.
【Low】 Manual Start/Stop Mn Low-speed Feeding. Green: Working state.
【Dump】 Manual Start/Stop Dumping. Green: Working state.
【Mn】 Material Selection for Manual Operation.
【Clear】 Clear Screen: Clear the display values of Feeding Weight, Totalized Weight and Batch Count’.

Engineer

Administrator



        Outline Size

High Anti - Jamming Capability Electronic Weighing Indicator With 1-16 Materials 6

High Anti - Jamming Capability Electronic Weighing Indicator With 1-16 Materials 7

         System Diagram for M1~M8 with 2-Speed Feeding

High Anti - Jamming Capability Electronic Weighing Indicator With 1-16 Materials 8
