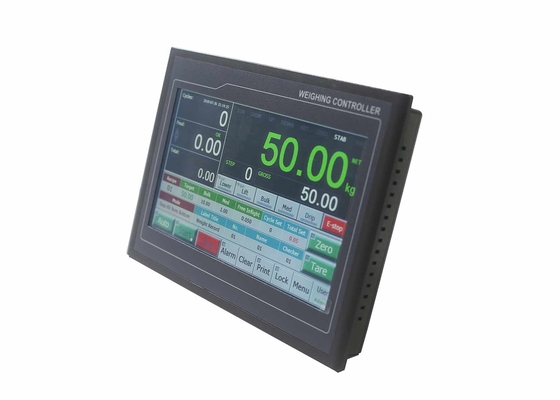

Large Image :  TFT Touch Display Filling Controller Auto Zero Tracking With Load Cell

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10[FL]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Power Supply: DC24V Max. Connect: 16Loadcells[350Ω]
Input: 9DIs Output: 18DOs
COM@COM1: RS232 COM2: RS485

TFT Touch Display Filling Controller Auto Zero Tracking With Load Cell



 Main Features:

  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
  • 7” [800×480] or 10.2” [1024×600] TFT touch panel.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Auto Zero Tracking.
  • Fall Value Auto Correction.
  • Auto Pause for Deviation Alarm.
  • Auto Re-feed for Negative Deviation Alarm.
  • Target Batch Count & Target Batch Weight Control.
  • 3-speed[high/medium/low] feeding control by DOs or AOs.
  • Definable DI/DO/AO/COM[Communication Port].
  • Recipe Number: 100.





Technical Specification:

Power Supply DC24V±20%,Max.10w.
Display HMI
Sampling Frequency 600Hz
A/D Convert 24-bit
LAN Optional Ethernet
USB1 Connect mouse, software download, data backup
Max. Connection number of Loadcell

16Loadcells (350Ω)

DI 9 Normally Open Switch Inputs
DO 18 Normally Open Transistor Switch Outputs
AO 2Analog Signal Output: 4~20mA.
Operating Temperature -25℃~+45℃
Verification Accuracy 0.02%
Filling Accuracy 0.2%~0.5%

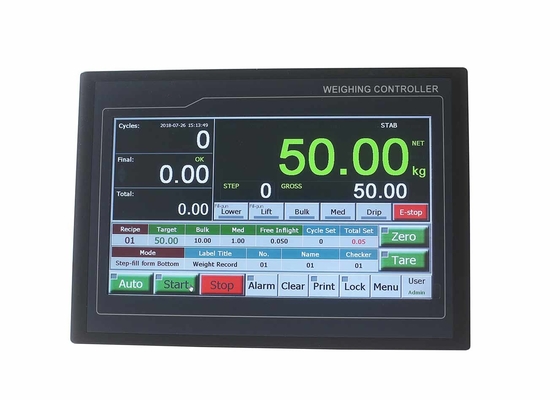

Main Operation Interface

TFT Touch Display Filling Controller Auto Zero Tracking With Load Cell



Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Stop】 Stop [Valid at Auto-running state].
【Re-run】 Clear Alarm & Recover Running.
【E-stop】 Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after clearing alarm.

Red: Alarm state.
【Print】 Report Print. Green: Auto Print is allowed.
【Lock】

Screen-locking: Locking/unlocking the operating buttons of main display interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Lower】 Manual Lower Filling Gun. Flashing Green: Filling Gun is moving down.
【Lift】 Manual Lift Filling Gun. Flashing Red: Filling Gun is moving up.
【High】 Manual Start/Stop High-speed filling. Green: Working state.
【Med】 Manual Start/Stop Medium-speed Filling.
【Low】 Manual Start/Stop Low-speed Filling.
【Zero】

Zero Fine Adjustment.

[No Power-down Protection]

Flashing Red.
【Tare】

Manual Tare.

[No Power-down Protection]

Flashing Red.
【Clear】 Clear Screen: Clear the display values of Filling Weight, Totalized Weight and Batch Count.

Engineer

Administrator





Data Display & Quick Setting

Name Description Authorization
[NET] Net Weight [Weight Unit].
[FIL] Filling Process Ended.
[GROSS] Gross Weight.
[HIGH] Gross Weight Upper Limit Alarm.
[OVLD] Overload Alarm.
[PCS] Batch Count.
[FINAL] Final Filling Weight.
[▲]/[HI] Positive Deviation Alarm and ‘Deviation & Limit Set’. Administrator
[▼]/[LO] Negative Deviation Alarm and ‘Deviation & Limit Set’.
[TOT] Totalized Weight.
[Date&Time] Date&Time.
[RUN] Auto Running state.
[PAUSE] Pause state.
[DRUM] DI switch ‘Empty Drum Ready’ turned on.
[UP] Filling Gun Lift in Place.
[DOWN] Filling Gun Lowered in Place.
[HIT] Filling Gun Impacting Drum Alarm.
[ZERO] Gross Weight ≤ Non-load Zero Range.
[STAB] Weight is stable.
[FIN] Target Batch [Count/Weight] Finished.
[Highest Filling Position ] DI switch ‘Highest Step-filling Position Limit’ turned on.
[RECIPE] ‘Working Recipe No.’ Selection. All Users
Recipe Parameter Setting. Engineer
[TARGET] ‘Target Value’ Setting. All Users
[HIGH] ‘SP1 Lead Value for High-speed Filling’ Setting. Engineer
‘DO Filling's Mode’ Parameter Setting. Administrator
[MED] ‘SP2 Lead Value for Medium-speed Filling’ Setting. Engineer
‘DO Filling's Mode’ Parameter Setting. Administrator
[FALL] ‘SP3 Fall Value for Low-speed Filling’ Setting. Engineer

‘Fall Value Auto Correction’ Parameter Setting.

  • ‘AUTO FALL’: Fall Value Auto Correction function is open.
  • ‘FREE FALL’: Fall Value Auto Correction function is closed.
Administrator
[MODE] APP1 Fill on Top / APP2 Fill on Bottom / APP3 Step-fill from Bottom. Refer to Parameter [300] ‘Application Mode’.
[BAT. CNT] ‘Target Batch Count’ Setting. All Users
[BAT. WT] ‘Target Batch Weight’ Setting.
[Label Print Information] Label title, No., Name and Checker Setting.

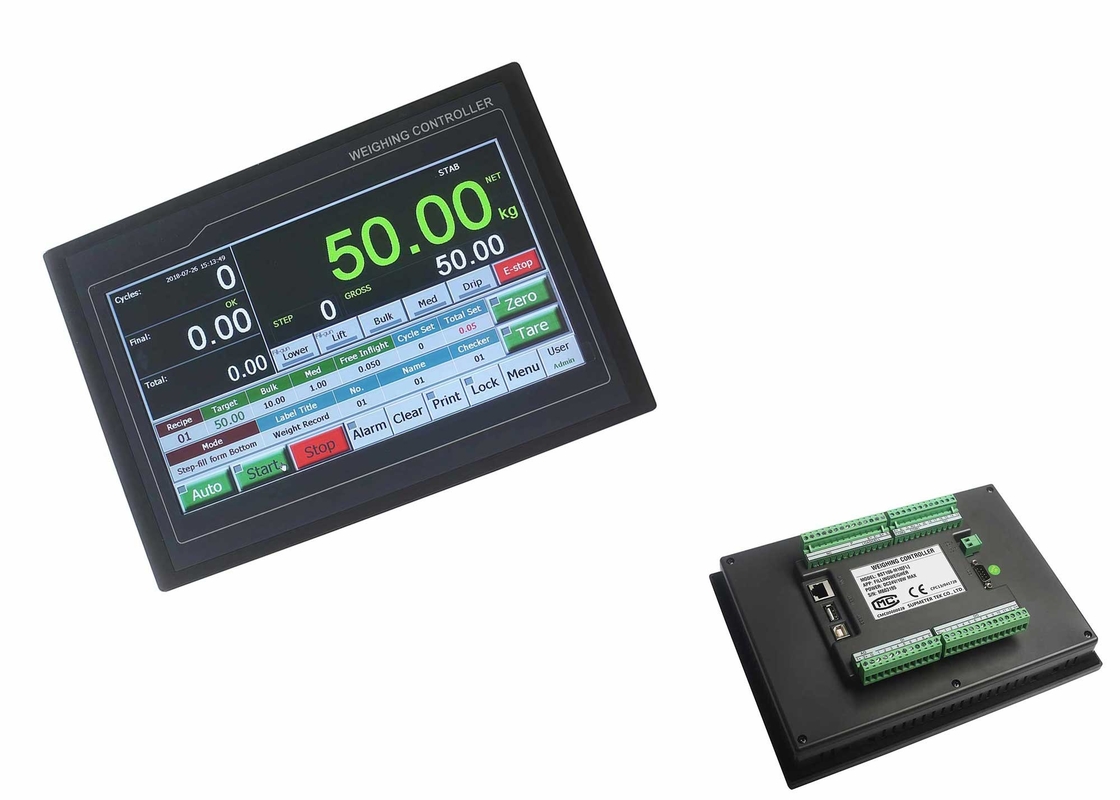

TFT-Touch Raiton Filling Controller For Filling Liquid, Gas & Powder Materials

TFT Touch Display Filling Controller Auto Zero Tracking With Load Cell





Outline Size

TFT Touch Display Filling Controller Auto Zero Tracking With Load Cell





Installation Mode

TFT Touch Display Filling Controller Auto Zero Tracking With Load Cell

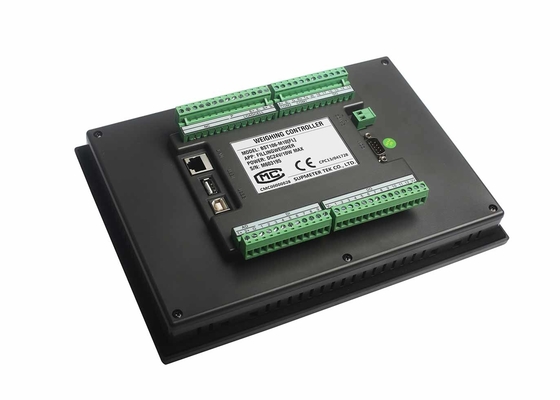

Terminal Diagram

TFT Touch Display Filling Controller Auto Zero Tracking With Load Cell



System Diagram:

TFT Touch Display Filling Controller Auto Zero Tracking With Load Cell
