Payment & Shipping Terms:
|Power Supply:||DC24V±20%||Sampling Frequncy:||400Hz|
|Records Save Number:||10000||Shell:||Sainless Steel|
truck scale indicator,
front end loader weighing systems

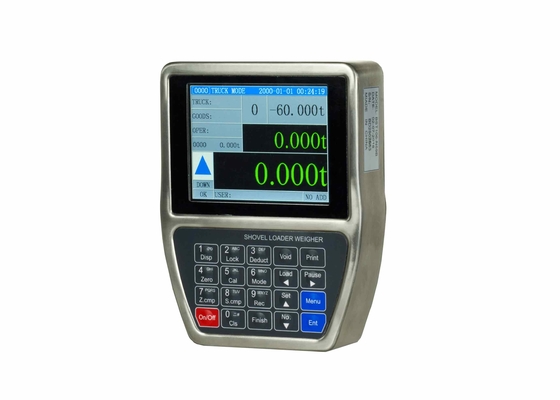

Shovel Loader Weighing Controller BST106-N59[B] Support Overlay Customizing, Software Customizing and Language Cuatomizing.

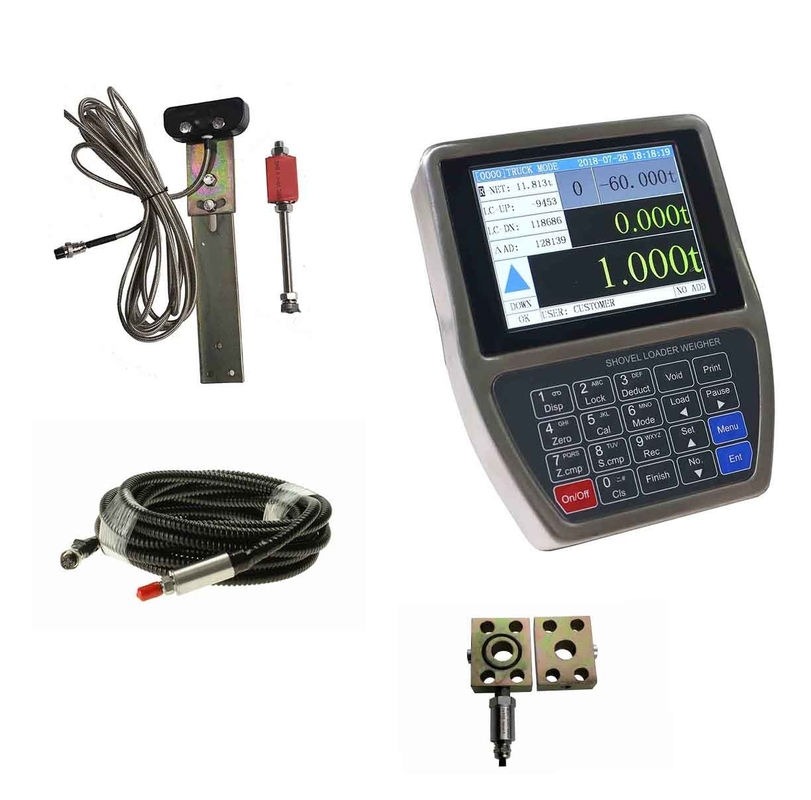

Configuration For 1 Set
|Display||640×480 TFT color display screen for English character display|
|Weight Display Range||-99,999~+999,999|
|System Weighing Range||100~12,000kg|
|Scale Division||Optional 1, 2, 5, 10, 20, 50kg|

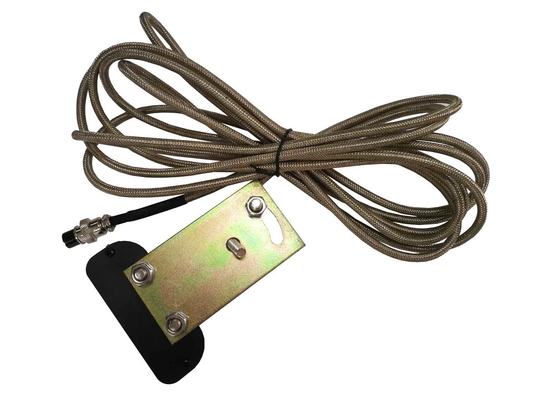

|Position Sensor Input Interface||2 Switch signal Input|
|Max. Output Current||100mA|

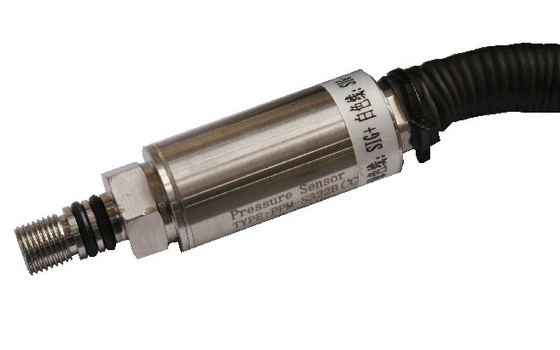

|Oil Pressure Sensor Interface||2 Switch signal Input|
|Excitation Voltage/Max.Current||DC12V/100mA & DC5V/100mA|
|Signal Input Range||Optional 0~20mV, 0~5V[Factory Set Value]|
|∑-△ADC||24-bit, 1,000,000 internal code used|
|Digital Communication Interface||COM1||RS232|
|Report Print||10000 Loading Records can be saved, queried and printed, and each record can contain 50pcs Single-bucket-loading-weight value|
Mode Of Delivery:
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: the model number of the loader you want to install, the shape and size of cylinder joint of your loader, the weight of single bucket, accuracy etc.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
6. How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
7. How can you help us in installation?
We have installation vedio. And we have been working on this more than 5 years. We will help you solve the problem in installation with our expirience.
