Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision

Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M60S[L]

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 8-15 working days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Get Best Price Contact Now

Detail Information

Power: DC24V Weight Display Range: -9,999~+99,999
Scale Capacity: Setting Range 1~99,999 Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500
Display Resolution: 1/50,000 Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000
High Light:

Guide Rail Digital Weighing Controller

,

Digital Weighing Controller Module

,

Digital Weighing Controller High Precision

Product Description

Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision

Super High Accuracy Weighing Module For Transmitting With AO (0~20mA)



BST106-M60S[L] is a Guide Rail Type weighing module. It is with 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and max. sampling frequency 1600Hz.



Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision 0



BST106-M60S[L] is guide rail type installation


Outline Size W×H×D[mm]:
71.5×115.6×57.9

Guide Rail Groove Size W×D[mm]:
35×1.6

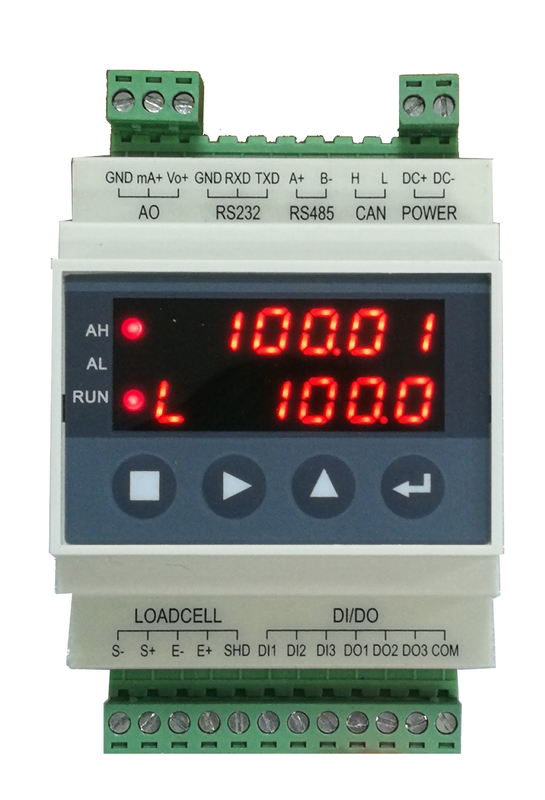

Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision 1







Terminals:



1. 3 Optional&definable normally open switch inputs [DI];

2. 3 Optional&definable normally open transistor switch outputs [DO]: DC24V, 250mA;
3. 1 Optional&definable current signal output [AO: 0~20mA], Non-linearity: 0.05%FS;
4. 1 Optional&definable voltage signal output [VO: 0~10V], Non-linearity: 0.05%FS;
5. COM1: RS232;
6. COM2: Optional RS485;
7. COM3: Optional CANBUS


Delivery:

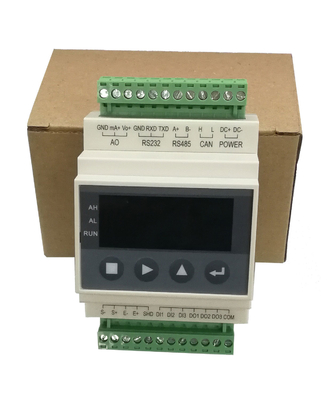

Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision 2
