Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B60S(L)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/box
Delivery Time: 3-20 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs per month
Get Best Price Contact Now

Detail Information

Power Supplier: DC24V Loadcell: 8 Loadcell Connectable 350ohm
COM1: RS232 Optional Power: 220V
High Light:

DC24V Load Cell Weighing Indicator

,

1280Hz Load Cell Weighing Indicator

,

Waterproof Load Cell Weighing Indicator

Product Description

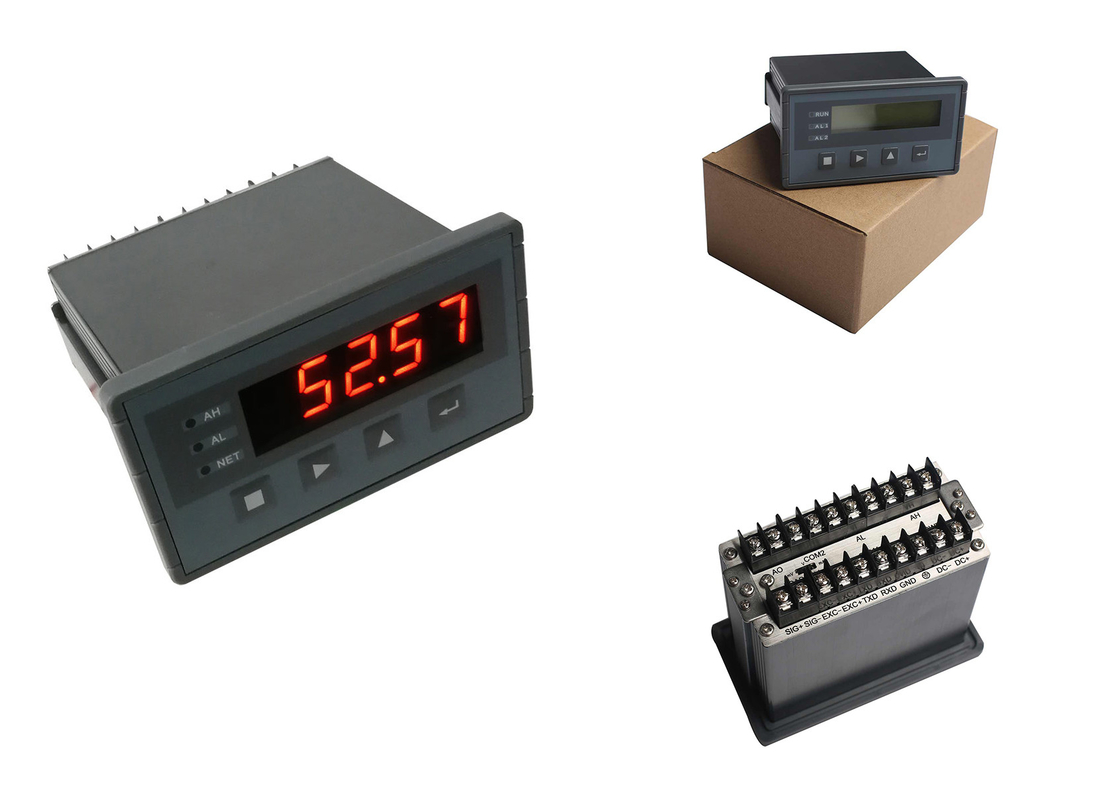

waterproof IP65 DC24V Load Cell Weighing Indicator 1280Hz Sampling Frequency

Load Cell Weighing Indicator Weigh Controller Relay Output 5-digits LED Display



Example 1. Sending Weight Data ‘+00123.4kg’
Byte Field Name HEX Note
1 START 3D =
2 Weighing State 53 S
3 Data Name 4E N
4 Sign 2B +
5 Weight Value 30 0
6 Weight Value 30 0
7 Weight Value 31 1
8 Weight Value 32 2
9 Weight Value 33 3
10 Weight Value 2E .
11 Weight Value 34 4
12 Unit 6B k
13 SUM CC SUM=Byte1+Byte2+…+Byte12
14 END 0D <CR>
15 END 0A <LF>
Example 2. Sending Displayed Characters ‘ 2. dISP’
Byte Field Name HEX Note
1 START 3D =
2 Weighing State 53 S
3 Data Name 44 D
4 ID Code 64 d
5 Point Code 20
6 Displayed Characters 32 2
7 Displayed Characters 20 Space
8 Displayed Characters 64 d
9 Displayed Characters 49 I
10 Displayed Characters 53 S
11 Displayed Characters 50 P
12 ID Code 64 d
13 SUM 5E SUM=Byte1+Byte2+…+Byte12
14 END 0D <CR>
15 END 0A <LF>

Technical Specifiction:

Power Supply AC24V±20%
Display 5 Red Led Digital Tubes for English&Digit Display
Sampling Frequency 1280Hz
A/D Convert 24-bit
Keypad 4 keys for Shortcut mode operation with key tone
Excitation Voltage Output of Loadcell DC5V
Max. Connection number of Loadcell 8 Loadcells (350Ω)
[mV]Signal Input Range 0-19.5mV
DO 2 Normally Open Transistor Switch Outputs
AO 1Analog Signal Output: 4~20mA.
Communication Port COM1:RS232;COM2:RS485
Outline Dimension 107 × 60 × 100 mm (W×H×D)
Net Weight Approx. 1.2kg
IP Grade IP65
Verfication Accuracy 0.03%
Static Weighing/Force Measuring Accuracy 0.2%~.5~



Model Panel-mounting Operation Interface

waterproof IP65 DC24V Load Cell Weighing Indicator 1280Hz Sampling Frequency 0



Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name Description
【MENU】

Enter Main Menu.

Exit.

【ENT】 Enter / Save / Alarm Acknowledge.
【◄】

Cursor shifts left.

Display the previous option.

【►】

Cursor shifts left.

Display the next option.

【▲】

Display the next interface or option.

Digit input: +1 ( 0~9 loop).

【▼】

Display the previous interface or option.

Digit input: -1 ( 0~9 loop).

Quick Operation

【MENU】

【Ñ】

*

  • Key-locking.
  • Key-unlocking.

【◄】

(【SET】)

Recipe parameters setting.

【◄】

【ZERO】

【→0←】

*

  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.

【▲】

【TARE】

【→T←】

*

  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.

【ENT】

【G/N】

Gross Weight / Net Weight display switch.
