CANBUS Communication Guide Rail Type 24V Belt Weigh Feeder Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Model Number: | BST100-M11JC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negociation |
| Packaging Details: | carton Box |
| Delivery Time: | 5-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/month |
|
Detail Information |
|||
| Loadcell Connect No.: | 8-350Ω Loadcells | COM1: | RS485 |
|---|---|---|---|
| COM2: | CANBUS | Analogue Output: | 1* (4~20mA) |
| DO: | NONE | Operating Voltage: | DC15~24V |
| Highlight: | weight indicator load cell,process weighing systems |
||
Product Description
BST100-M11JC is a mini weighing module for belt weighfeeder. It is with EMC design with high anti-jamming capability, suitable for industrial environment. And it is with 4-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.

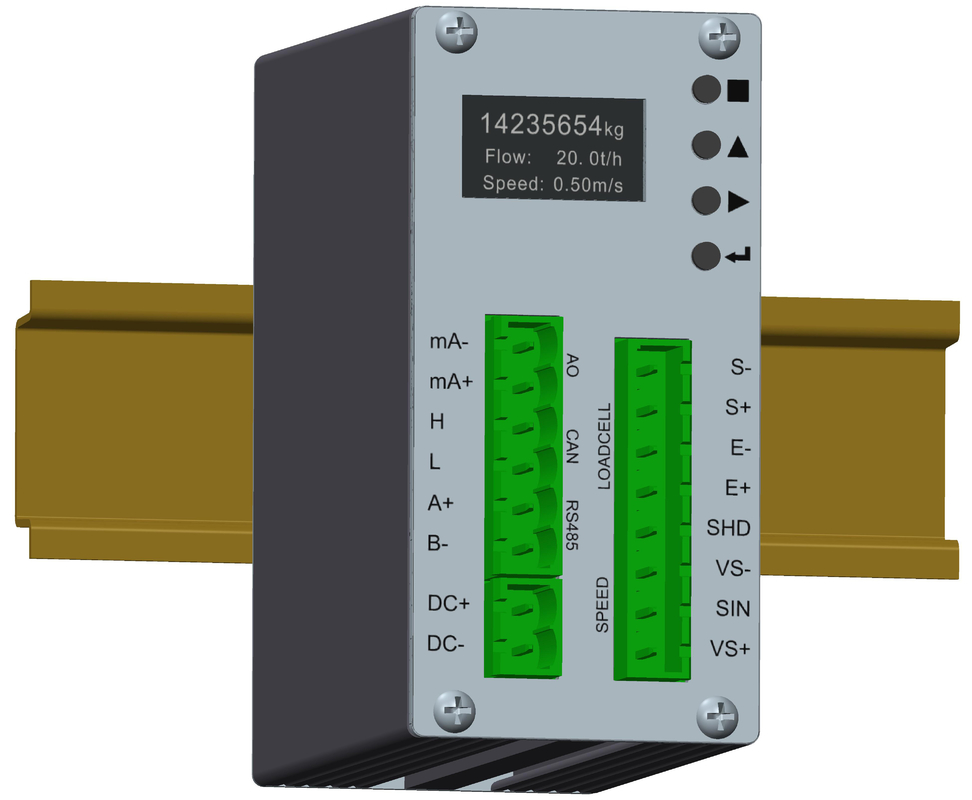

It is a Guide Rail Type:
Installation:
|
Outline Size W×H×D[mm] |
Guide Rail Groove Size W×D[mm] |
| 45.5×92.0×107.3 | 35×1.6 |

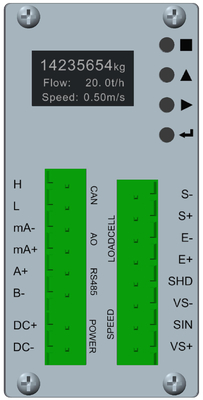

Loadcell Interface
- Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
- Signal Input Range: 0~25mV.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- Sampling Frequency: 400Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
- Gain Drift: ±5ppm/℃.
- Non-linearity: 0.005%FS.
Speed Sensor Interface
- Output Voltage/Max. Current: DC12V/100mA.
- Speed Pulse Input Range: 0.5~3000Hz.
