Electronic Belt Weigh Feeder Controller High Arithmetic Speed With LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST100-E21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | carton box |
| Delivery Time: | 5-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs/month |
|
Detail Information |
|||
| Power Supply: | AC220V | Display Type: | LCD Display |
|---|---|---|---|
| Application: | For Belt Weighfeeder | Connectable: | Remote Display, Printer, Loadcell, Speed Sensor, Encoder |
| Battery: | Lithium Battery (3.0V) | MOQ: | 1pcs |
| High Light: | Belt Weigh Feeder Controller,Electronic Weigh Feeder Controller,Weigh Feeder Controller High Arithmetic Speed |
||
Product Description
Electronic Belt Weigh Feeder Controller High Arithmetic Speed With LCD Display
High Accuracy Electronic Belt Loss-In-Weight Weighfeeder Controller With LCD Display
Application:
Belt Weigher with Weight Totalizing
Ration Belt Weighfeeder with Ration Flow Feeding
Loss-in-weight Weighfeeder with Ration Flow Feeding
Main Features:
1:32-bit ARM CPU with 72MHz clock and high arithmetic speed.
2: Zero Calibration&Auto Zero Tracking
3: Span Calibration&Segmenting Correction
4: Speed Calibration&Belt Length Calibration
5: Quick and steady PID ration feeding control
6: Definable DI/DO/AO/COM[Communication Port]
7: The feeder and belt weigher can be controlled byDI&DO.
Technical specification:
| Power Supply | AC220±15% |
| Display | 128X64 LCD display screen with 7background colors |
| Sampling Frequency | 400Hz |
| A/D Convert | 24-bit |
| Keypad | 16 keys for Menu&Shortcut mode operation with key tone |
| Excitation Voltage Output of Loadcell | DC10V |
| Max. Connection number of Loadcell | 8 Loadcells (350Ω) |
| Speed Sensor Excitation Voltage/Current | DC12V/100mA |
| Speed Signal Input Range | 0.5-3000Hz |
| AO | 2'PID Control'Analog Output[4-20mA] |
| Communication Port | COM1:Optianal RS232/RS485/RS422/Profibus-DP/Ethernet; COM2:RS232 |
| Outline Dimension | 202 × 305 × 90 mm (W×H×D) |
| Net Weight | Approx. 4.2kg |
| IP Grade | IP65 |
| Operating Temperature | -25℃∼+45℃ |
| Accuracy of Flow Control | 0.5%∼1.0% |
Installation:

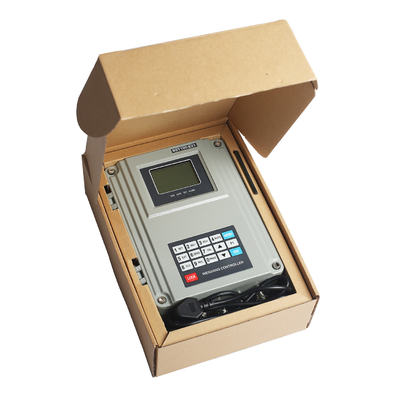

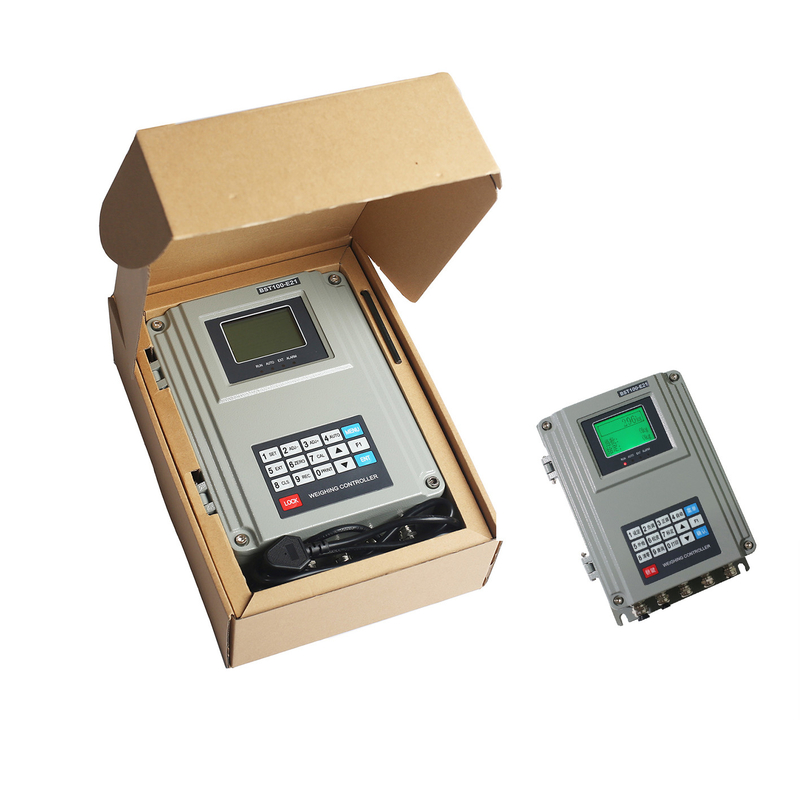

Package:
