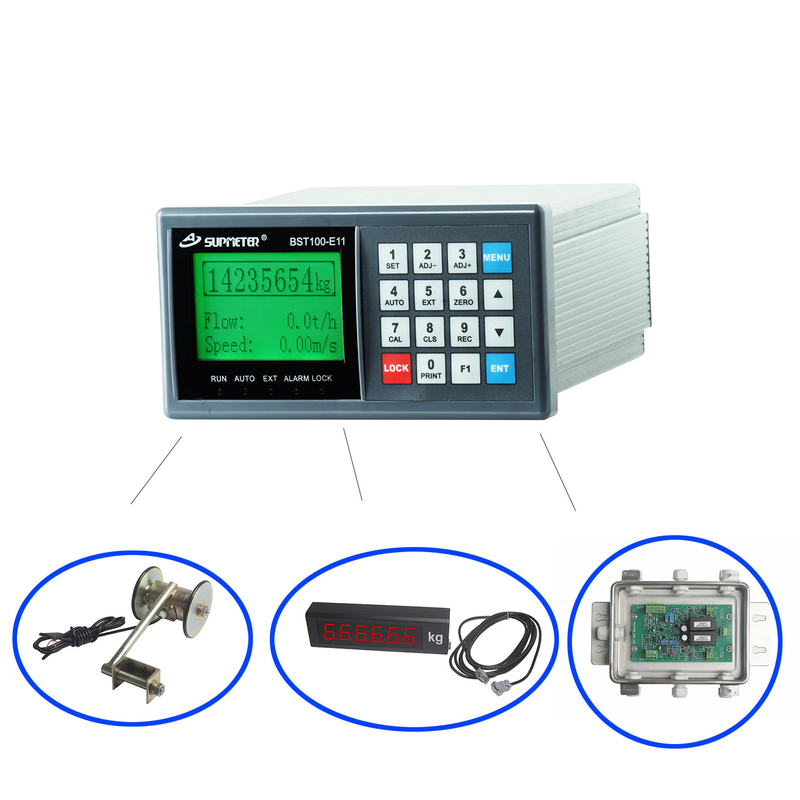

Cement Batching Conveyor Weighing Scale Controller With High Accuracy
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST100-E11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | carton box |
| Delivery Time: | 5-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs/month |
|
Detail Information |
|||
| Power Supply: | AC220V/DC24V | Display Type: | LCD Display |
|---|---|---|---|
| Certificate: | CE | Keyboard: | 16-keys In English |
| Install Mode: | Panel Mounted | Language: | English |
| Highlight: | Conveyor Weighing Scale Controller,Batching Weighing Scale Controller,Weighing Scale Controller High Accuracy |
||
Product Description
Cement Batching Conveyor Scale Weighing Controller With High Accuracy And Good Stability
Product Description:
Weighing controller BST100-E11 is a panel mounted one, with high accuracy 0.5%~1%. It has been on market more than 10 years, and has been wodely use in many countries . With its high performance, it is one of the best-selling products.
Technical Specification:
| Power Supply | AC220V±15% or DC24V±20% |
| Display | 128×64 dots LCD display screen |
| Keypad | 16 keys for Menu&Shortcut mode operation with key tone |
| Excitation Voltage Output | DC10V |
| Max. Connect No. of Loadcell | 8 Loadcells (350Ω) |
| A/D Convert | 24-bit |
| Sampling Frequency | 100Hz |
| Zero Drift | ±0.1μV/°C RTI (Relative to Input) |
| Gain Drift | ±5ppm/°C |
| Non-linearity | ±0.01%FS |
| Output Voltage of Speed Sensor | DC5~12V (adjustable) |
| AO | Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs: 4~20mA (AO3: optional) |
| DO | 4 Definable Normally Open Relay or Transistor Switch Outputs |
| DI | 3 Definable Normally Open Switch Inputs |
| Communication Port | COM2: RS232; COM1: RS232/RS485/RS422/Profibus-DP/CANBUS/Ethernet modules for additional option. |
| Connectable | IPC/PLC, Remote Display&Operation Terminal, Serial Printer and Wireless Module |
| Report Print | Weight Records per shift/day/month of a year can be queried and printed |
| Outline Dimension | 202 × 305 × 90 mm (W×H×D) |
| Weight | Approx. 3.4kg |
| IP Grade | IP65 |

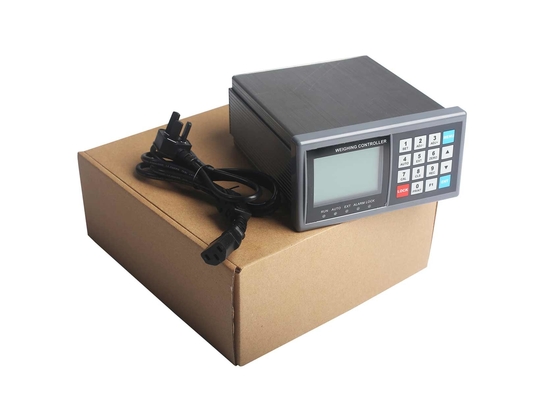

Packing & Shipping:
Each indicator is packed with customized box;
Delivery: Express, by air and by sea are available. We will give you the best suggestion according to the quantity you ordered.
Our Service:
1. Overlay can be customized customer's LOGO and model number.
2. Our engineers are with experience more than 10-20 years. If you need any special function, we can do it for you.
3. Our sales are with experience more than 5-10 years. Once you are deal with us, we are offering the beet service to you.
FAQ:
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, , etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
