RS485 MODBUS RTU Belt Scale 3W Weighing Module
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST100-M11S[L] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negociation |
| Packaging Details: | carton box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/month |
|
Detail Information |
|||
| Communication: | 2-RS485 | Additional Communication: | CANBUS |
|---|---|---|---|
| Outline Size: | 71.5×115.6×57.9mm [W×H×D] | Guide Rail Groove Size: | 35×1.6 Mm [W×D] |
| Loadcell Connect Number: | 8 Loadells (350Ohm) | Power Supply: | DC15~24V, 3W |
| High Light: | weight indicator load cell,process weighing systems |
||
Product Description
RS485 MODBUS RTU Belt Scale 3W Weighing Module

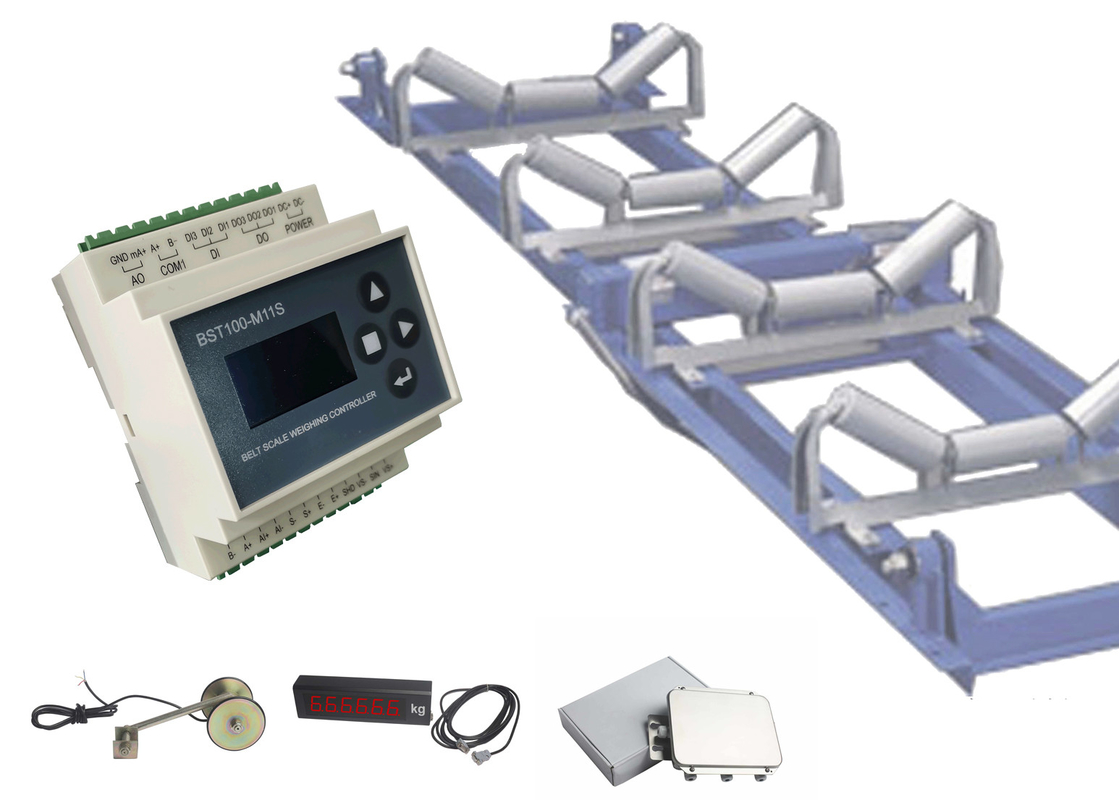

BST100-M11S[L] is a newly developed weighing control module for belt weighfeeder. It is with mini size an low price. It is Suitable for working with PLC. For the mini size, it can be put in your hand.
1. Operating Specification
- Operating Voltage: DC15~24V.
- Max. Power Consumption: 3W.
- Outline Size: 71.5×115.6×57.9mm [W×H×D].

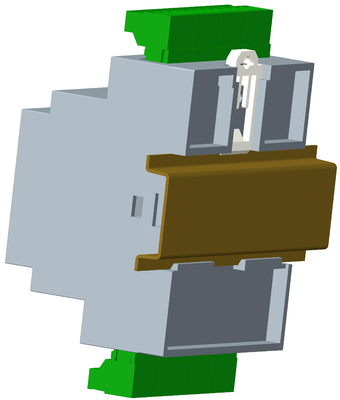

- Guide rail type installation.
- Guide Rail Groove Size: 35×1.6 mm [W×D].
- Operating Temperature: -25℃ to +45℃.
- Storage Temperature: -30℃ to +60℃.
- Relative Humidity: Max. 85%RH.
- Weight: Approx. 186g.
2. Digital Communication Interface
- COM1: RS485.
- COM2: RS485.
3. Switch Signal Interface
- 3 Definable normally Open Switch Inputs [DI].
- 3 Definable normally Open Transistor Switch Outputs [DO]: DC24V, 250mA.
Package:
Company Profile:
SUPMETER is an experienced manufacturer which is working on manufacturing weighing indicator/controller. We have professional sales team, strong technical team and 24-hous working after-sale service. Cooperating with us, you will get high quality but low price products, fast and accurate delivery, family like service.
Want to Know more details about this product
