Small Supmeter Weighing Indicator With LED And LCD Display , CE Certified

Small Supmeter Weighing Indicator With LED And LCD Display , CE Certified

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST100-A11+

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD+265~475+piece
Packaging Details: carton box, 1pcs/box
Delivery Time: 3~15 working days
Payment Terms: T/T
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Operating Voltage: AC220V±15%, 50/60Hz Max. Power Consumption: 15W
Fuction: Ation Flow Feeding & Ration Weight Batch Control Connect Loadcell: 8 Loadcell (350 Ohm)
Storage Temperature: -30℃ To +60℃ Relative Humidity: Max. 85%RH
High Light:

weight indicator load cell

,

process weighing systems

Product Description

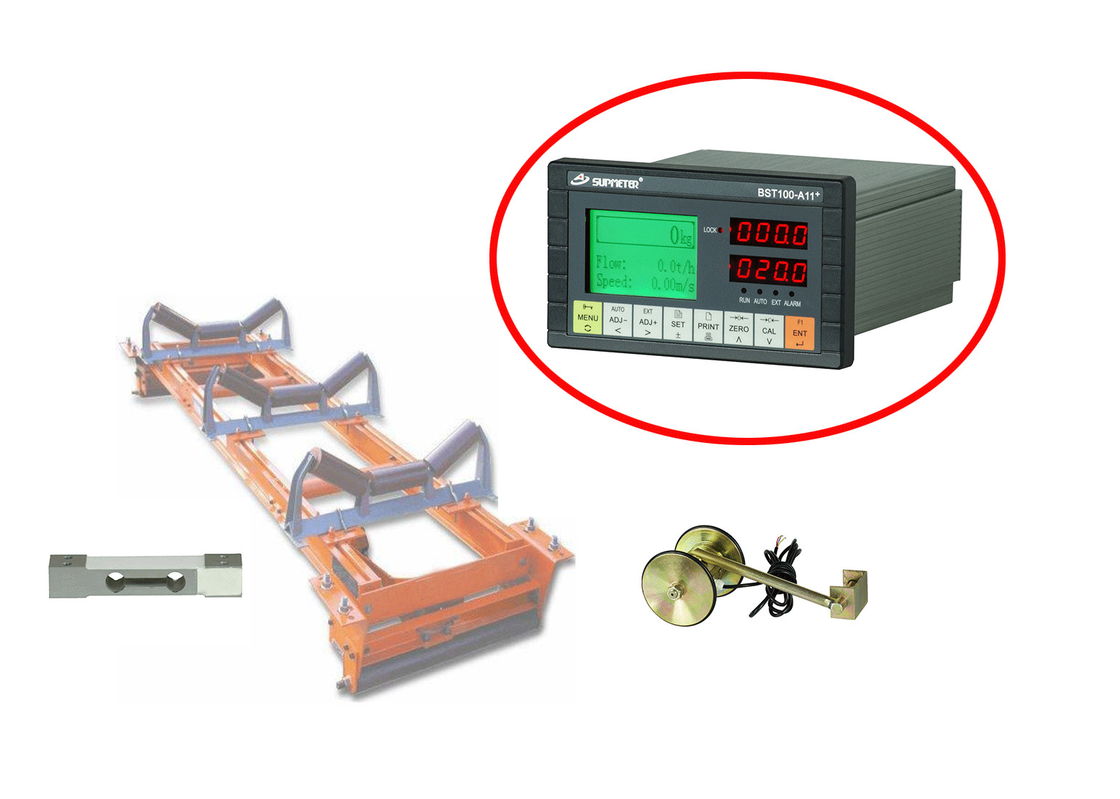

BST100-A11+ is suitable for belt weighfeeder with ration flow feeding & ration weight batch control.



Main Features:

Accuracy Grade 0.5
Accuracy of Flow Control 0.5%~1.0%
Excitation Voltage/Max. Current DC10V/250mA [8-350Ω loadcells]
Signal Input Range 0~25mV
∑-△ADC 24-bit, 100,000 internal code used
Sampling Frequency 200Hz
Non-linearity 0.005%FS
DI 3 Normally Open Switch Inputs
DO 4 Normally Open Relay Switch Outputs:AC250V/DC24V, 1A





Communication:

COM1 RS48
COM2 RS232
Communication Protocols MODBUS ASCII and MODBUS RTU
Additional Option Ethernet, Profibus-DP





Details:

Small Supmeter Weighing Indicator With LED And LCD Display , CE Certified 0

Delivery

Door to Door express, by air and by sea are available. We will check and recommend the best way for you. And you can arrange the delivery by yourself too.



Small Supmeter Weighing Indicator With LED And LCD Display , CE Certified 1
