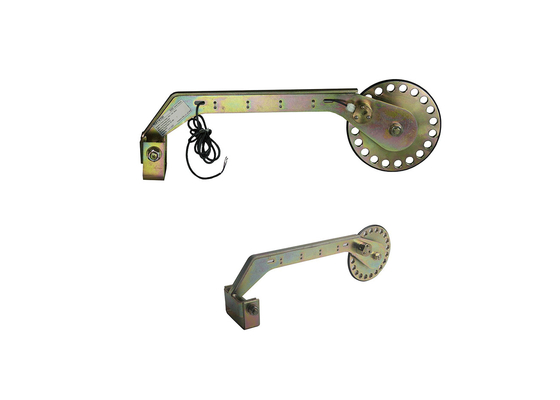

Speed Sensor Weight Controller System With Omron Proximity Switch And Good Stability
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Model Number: | SD02[B] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD+174~220+piece |
| Packaging Details: | Foam Box, 1pcs per box |
| Delivery Time: | 3~15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/month |
|
Detail Information |
|||
| Operating Voltage: | DC5~24V, 20mA | Weight: | 4.6 Kg/pcs |
|---|---|---|---|
| Function: | Belt Scale Speed Control | Voltage Pulse Output: | 3cm/pulse; 33.33pulse/m |
| Package: | Foam Box | Operating Tempreture: | -40℃~+55℃ |
| High Light: | weight indicator load cell,process weighing systems |
||
Product Description
Operating Principle:
Depending on self-weight, the speed sensor make the friction wheel roate without slip come along
with conveyor, and then the raster and photoelectricity switching circuit which are coaxial
connected with friction wheel will switch belt linear speed to voltage pulse output.
Main Features:
1. Die-casting sealed shell
2. Suitable for the on-site severe environment with the function of dampproof and dustproof.
3. Knurl on the surface of friction wheel is of anti-skidding and galvanizing is of abrasion resistant.
Detail Specification:
| Operating Voltage | DC5~24V, 20mA |
| Speed Measurement Range |
3cm/pulse; 33.33pulse/m |
|
Output Signal |
Voltage Pulse |
| Operating Tempreture | -40℃~+55℃ |
| Relative Humidity | <90%RH, no Condensation |
| IP Grade | IP67 |
SD02[B] Can be work with the following indicators:
Warranty:
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
