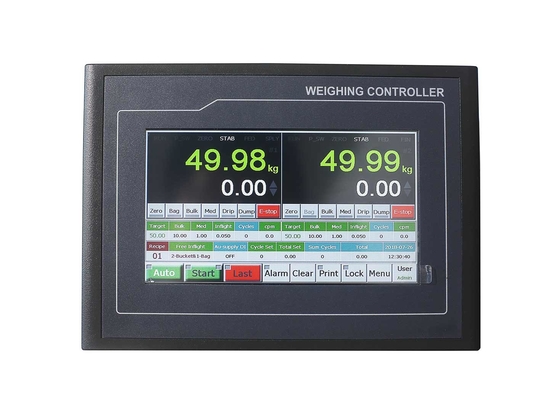

TFT Touch Load Cell Indicator Weighing Controller 24 Bit High Precision

Packing Scales Weight Control, Load Cell Weighing Controller


            Main Features:

² Suitable for Ration Packing Scale with optional Hopper-weighing Mode, Bag-weighing Mode and Loss-in-weight Mode.

² EMC design with high anti-jamming capability, suitable for industrial environment.

² Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.

² 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.

² Loadcell Interface

l Max. Connection Quantity: 16 Loadcells (350Ω).

l 24-bit High-precision and high-speed ∑-A/D conversion module with 1/1,000,000 internal resolution and samplingfrequency 800Hz.

l Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strongvibration on the load receptor, and the rapid response capability when the weight signal changes.

² I/O Interface

l 9 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].

l Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.

l 2 Definable analog signal AOs[0~10V] for weight signal output or High/Medium/Low Speed Feed control.

² Digital Communication Interface

l COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.

l COM[RS232] for connecting RS232 Serial Printer.

l USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.

² Software Function

l Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.

l Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibrationfunctions available.

l Load Calibration and Loss Calibration functions available.

l 10 Recipes for packing control.

l Optional Fall Value Auto Correction function.

l Optional Auto Pause for Deviation Alarm and Auto Re-feed functions.

l Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].

l The Batch Records can be printed automatically.

l Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.


Operation Interface of User Login

Name Operation Note

User Login.

Exfactory Passwords:

  • Operator: None.
  • Engineer: 0.
  • Administrator: 1.
Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password.
【User Name】 After password inputted, the matching User Name will be displayed.
  • Operator: User with lowest authorization.
  • Engineer: User with higher authorization.
  • Administrator: User with highest authorization.
【Operate】 Enter ‘Main User Interface’. Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff.

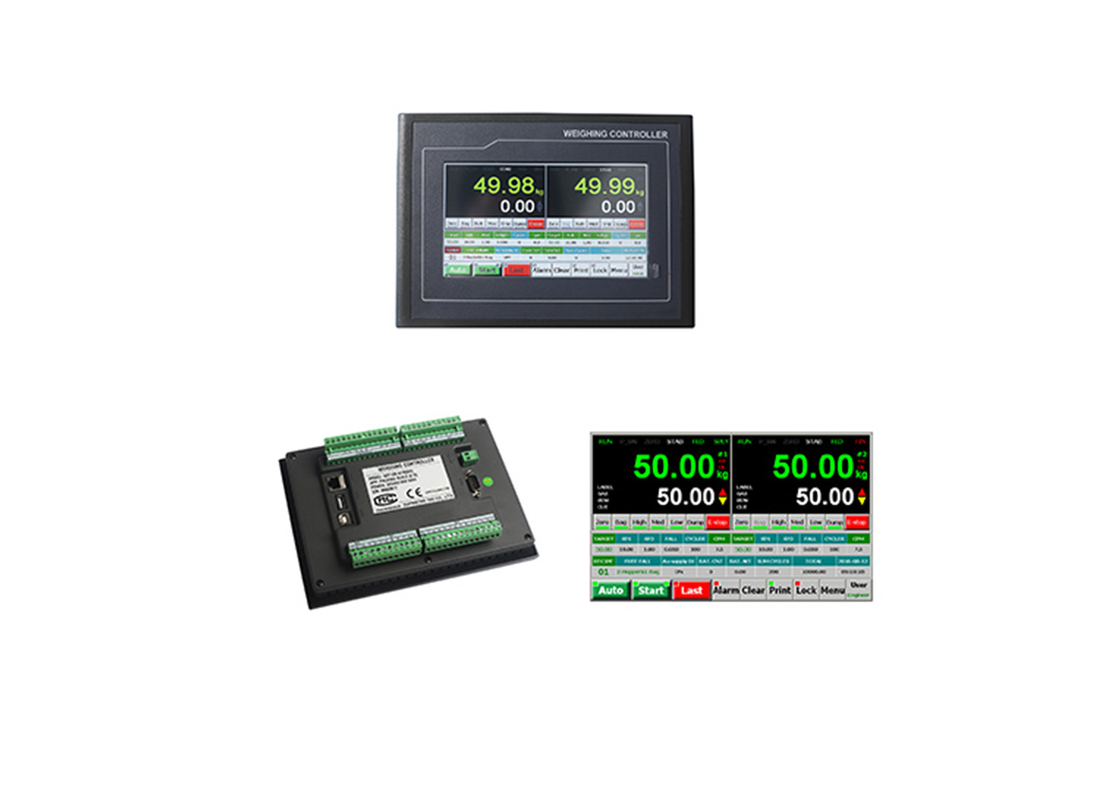

Terminal Diagram

TFT Touch Load Cell Indicator Weighing Controller 24 Bit High Precision 0


Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Re-run】 Clear Alarm & Recover Running.

Normal Stop [Last Batch].

Stop after the present batch finished.

Flashing Red.
【E-Stop】 Emergency Stop.

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after alarms cleared.

Red: Alarm state.

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Working Recipe.

Screen-locking: Locking/unlocking the operating buttons of main user interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Zero】 Manual Zero [No Power-down Protection]. Flashing green.
【Bag】 Bag-clamp/release Request.

Green: Bag-clamping state.

Grey: Bag-releasing state.

【Bulk】 Manual Start/Stop Bulk Feed. Green: Working state.
【Med】 Manual Start/Stop Medium Feed.
【Drip】 Manual Start/Stop Dribble Feed.
【Dump】 Manual Start/Stop Dumping.
【Mat.】 Manual Start/Stop Supplying Materials into Feeding Bin. Flashing green.
【Clear】 Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed.
