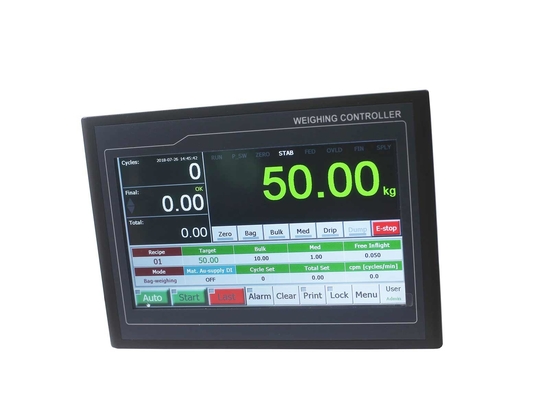

Vertical Form Fill Seal Machine Indicator Bagging Controller For Packing Scale

Vertical Form Fill Seal Machine Indicator, 10KG 50KG Bag Weigh Filling Grains Weighing Filling Packing Weight Controller



Single Hopper 10-50kg Organic Fertilizer Packing Scale Indicator, Weighing Hopper Instrument Scale for Grain Packing


Main Features

  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
  • 7” [800×480] or 10.2” [1024×600] TFT touch panel.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Auto Zero Tracking.
  • Fall Value Auto Correction.
  • Auto Pause for Deviation Alarm.
  • Auto Re-feed for Negative Deviation Alarm.
  • Target Batch Count & Target Batch Weight Control.
  • Definable DI/DO/AO/COM[Communication Port].
  • 3-speed[high/medium/low] feeding control by DOs or AOs.
  • Recipe Number: 100.

Main Application:

  • Single-weighing-hopper Ration Packing Scale.
  • Single-weighing-bag Ration Packing Scale.
  • Loss-in-weight Ration Packing Scale.
  •

Size:
7 Inch One:
Outline Size [W×H×D]: 226.5 × 163 × 36 mm
Panel Cut-out Size [W×H]: 215 × 152 mm
10 Inch One:
Outline Size [W×H×D]: 274 × 193 × 40 mm
Panel Cut-out Size [W×H]: 261 × 180 mm

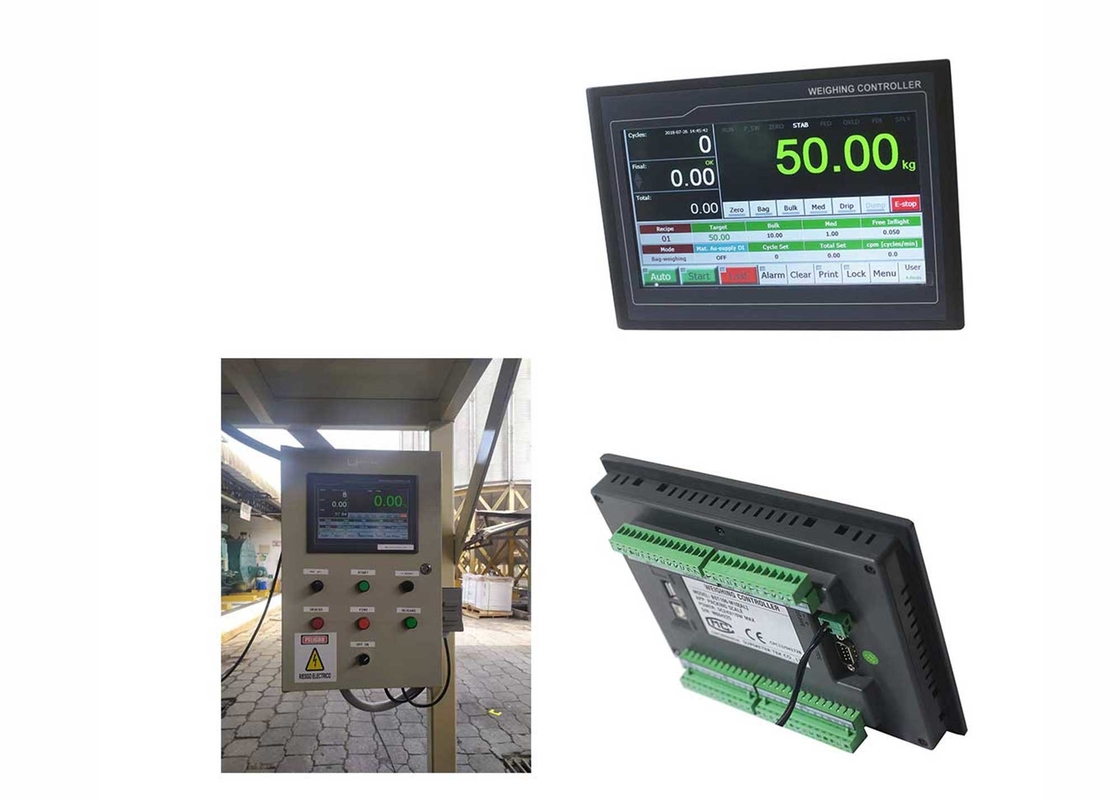

Vertical Form Fill Seal Machine Indicator Bagging Controller For Packing Scale 0

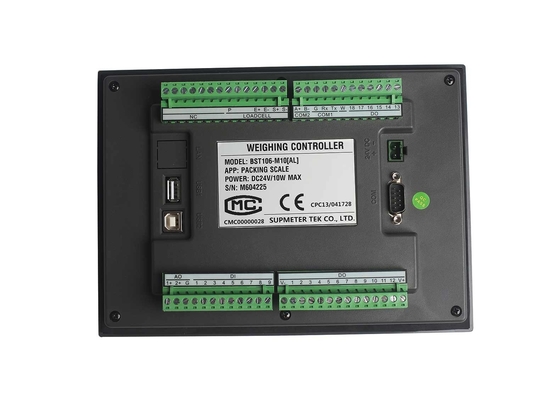

Vertical Form Fill Seal Machine Indicator Bagging Controller For Packing Scale 1





Technical Specification:

  • Power Supply: DC24V±20%, Max. 10W.
  • Loadcell Excitation Voltage/Current: DC5V/250mA.
  • 16 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~12.5mV.
  • 9 Normally Open Switch Inputs [DI].
  • 18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
  • 2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
  • COM&COM1: RS232; COM2: RS485.
  • USB1: Connect mouse, software download, data backup.
  • LAN: Optional Ethernet.
  • Outline Size [W×H×D]
  • Operating Temperature: -25℃~+45℃.
  • Protection Level of Front Panel: IP65.
  • Accuracy Grade: III.
  • Verification Accuracy: 0.02%.
  • Static Weighing Accuracy: 0.2%~0.5%.
  • Packing Accuracy: 0.2%~0.5%.

Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Re-run】 Clear Alarm & Recover Running.
【Stop】

Normal Stop [Last Batch].

Stop after the present batch finished.

Flashing Red.
【E-Stop】 Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after alarms cleared.

Red: Alarm state.
【Print】

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Working Recipe.

【Lock】

Screen-locking: Locking/unlocking the operating buttons of main user interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Zero】 Manual Zero [No Power-down Protection]. Flashing green.
【Bag】 Bag-clamp/release Request.

Green: Bag-clamping state.

Grey: Bag-releasing state.

【Bulk】 Manual Start/Stop Bulk Feed. Green: Working state.
【Med】 Manual Start/Stop Medium Feed.
【Drip】 Manual Start/Stop Dribble Feed.
【Dump】 Manual Start/Stop Dumping.
【Mat.】 Manual Start/Stop Supplying Materials into Feeding Bin. Flashing green.
【Clear】 Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed.

Engineer

Administrator



User Login Interface

1-Bucket Scale & 1-Bag Scale:
