EMC Design Weighing Indicator Controller Weighing Scale Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-M10[AL] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 1~10 working days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P |
| Supply Ability: | 20000pcs per month |
|
Detail Information |
|||
| Customization: | Available | Application: | Single Scale Mode |
|---|---|---|---|
| Verification Accuracy: | 0.02% | Static Weighing Accuracy: | 0.2%~0.5% |
| Packing Accuracy: | 0.2%~0.5% | IP Grade: | IP65 |
| High Light: | EMC Design Weighing Indicator Controller,Weighing Indicator Controller Scale Parts,EMC Design weighing scale indicator |
||
Product Description

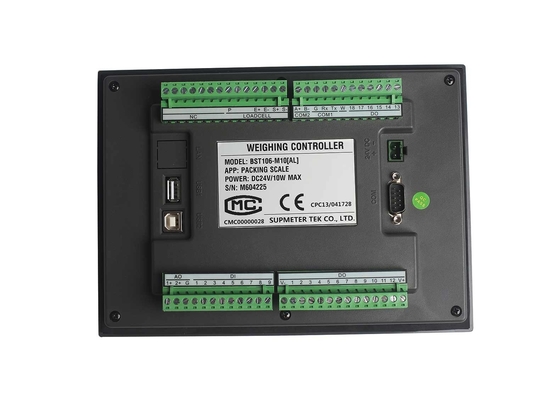

EMC Design Weighing Indicator Controller Weighing Scale Parts
WEIGHT INDICATOR Weighing Scale Parts for Filling/Packaging Agricultural/Food Machinery, Packing Instrument
Main Features
- EMC design with high anti-jam for industrial environment.
- DC24V power input with reverse polarity protection.
- Cortex-A8 CPU with 600MHz Clock, 128M Flash.
- 7” [800×480] or 10.2” [1024×600] TFT touch panel.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 800Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Auto Zero Tracking.
- Fall Value Auto Correction.
- Auto Pause for Deviation Alarm.
- Auto Re-feed for Negative Deviation Alarm.
- Target Batch Count & Target Batch Weight Control.
- Definable DI/DO/AO/COM[Communication Port].
- 3-speed[high/medium/low] feeding control by DOs or AOs.
- Recipe Number: 100.
Main Application:
- Single-weighing-hopper Ration Packing Scale.
- Single-weighing-bag Ration Packing Scale.
- Loss-in-weight Ration Packing Scale.
Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. | Green: Auto state. | All Users |
| 【Start】 | Start. | Green: Running state. | |
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【Stop】 | Normal Stop [Last Batch]. | Flashing Red. | |
| 【E-Stop】 | Emergency Stop. | ||
| 【Alarm】 | Alarm Query / Clear Alarm. | Red: Alarm state. | |
| 【Print】 | Report Print:
| ||
| 【Lock】 | Screen-locking: Locking/unlocking the operating buttons of main user interface. | Flashing Red: Locked. | |
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing green. | |
| 【Bag】 | Bag-clamp/release Request. | Green: Bag-clamping state. | |
| 【Bulk】 | Manual Start/Stop Bulk Feed. | Green: Working state. | |
| 【Med】 | Manual Start/Stop Medium Feed. | ||
| 【Drip】 | Manual Start/Stop Dribble Feed. | ||
| 【Dump】 | Manual Start/Stop Dumping. | ||
| 【Mat.】 | Manual Start/Stop Supplying Materials into Feeding Bin. | Flashing green. | |
| 【Clear】 | Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed. | Engineer |

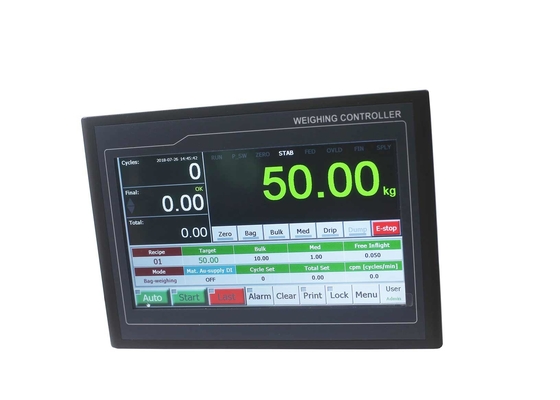

User Login Interface
1-Bucket Scale & 1-Bag Scale:
Loss-in-weight Scale:

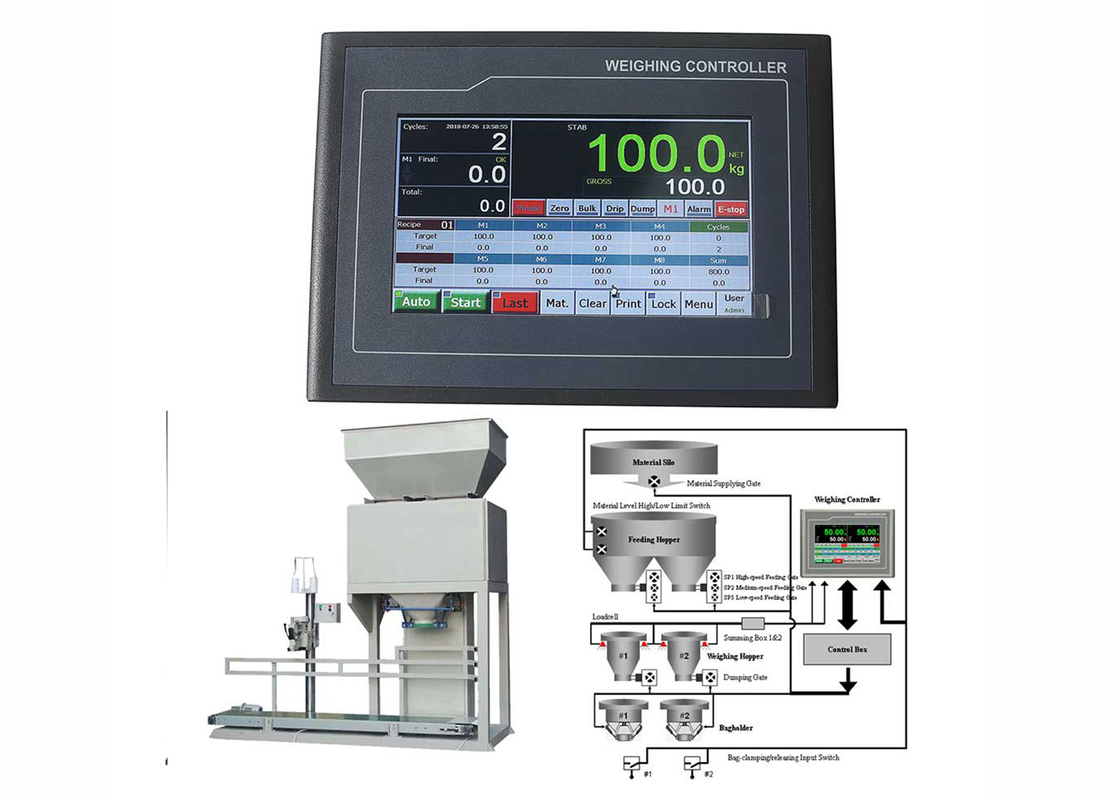

System Diagram for APP1 1-Bucket Scale
How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
