Waterproof Bagging Controller For Pneumatic Bag Clamping Device

Waterproof Bagging Controller For Pneumatic Bag Clamping Device

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST106-M10[BH]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 200pcs per month
Get Best Price Contact Now

Detail Information

Customization: Available Application: Single Scale Mode & Double Scale Mode
Verification Accuracy: 0.02% Static Weighing Accuracy: 0.2%~0.5%
Packing Accuracy: 0.2%~0.5% IP Grade: IP65
High Light:

Waterproof Bagging Controller


Pneumatic Bag Clamping Device Bagging Controller


Single Scale Bagging Controller

Product Description

Waterproof Bagging Controller For Pneumatic Bag Clamping Device

Double Bucket Scales Packing Controller, for Pneumatic Bag Clamping Device/ Bag Feed Machine


Technical Specifications

1. Executing Standards

2. PRC GB/T 7724-2008.

3. PRC JJG 649-2016.

4. OMIL R76-1: 2006International Recommendation.

5. Accuracy Grade:Ⅲ.

6. Number of Verification Scale Interval: n=3000.

7. Structure&Configuration

8. 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.

9. Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.

10. 16-bit Color screen with 800×480[7”] or 1024×600[10.2”] pixel and LED backlight.

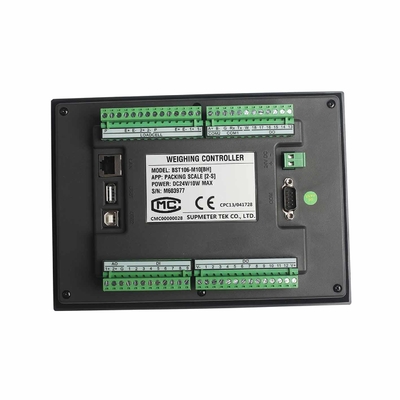

Digital Communication Interface

1. COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.

2. COM[RS232] for connecting RS232 Serial Printer with Baud Rate ‘9600bps’, Parity Check ‘None’, 8 Data Bits and 1 Stop Bit.

3. USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.

4. LAN: Optional Ethernet port.

5. The Batch Records can be printed automatically.

6. Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.

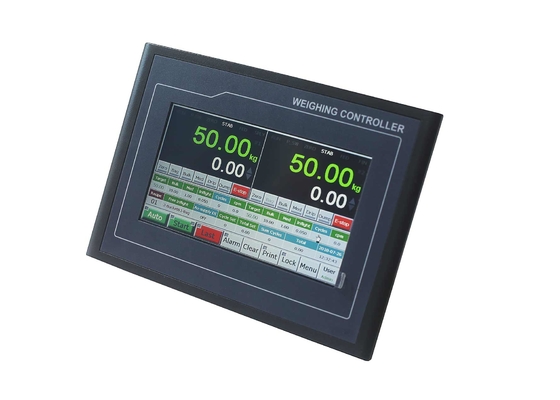

7”Touch Screen

Outline Size: 226.5×163×56mm [W×H×D].

Window Size: 153.6×86.64mm [W×H].

Box Body Size: 213×150mm [W×H].

Panel Cut-out Size: 215×152mm [W×H].

Weight: Approx. 0.72kg.


10.2” Touch Screen

Outline Size: 274×193×56mm [W×H×D].

Window Size: 220.8×132.9mm [W×H].

Box Body Size: 259×178 [W×H].

Panel Cut-out Size: 261×180mm [W×H].

Weight: Approx. 1.2kg.

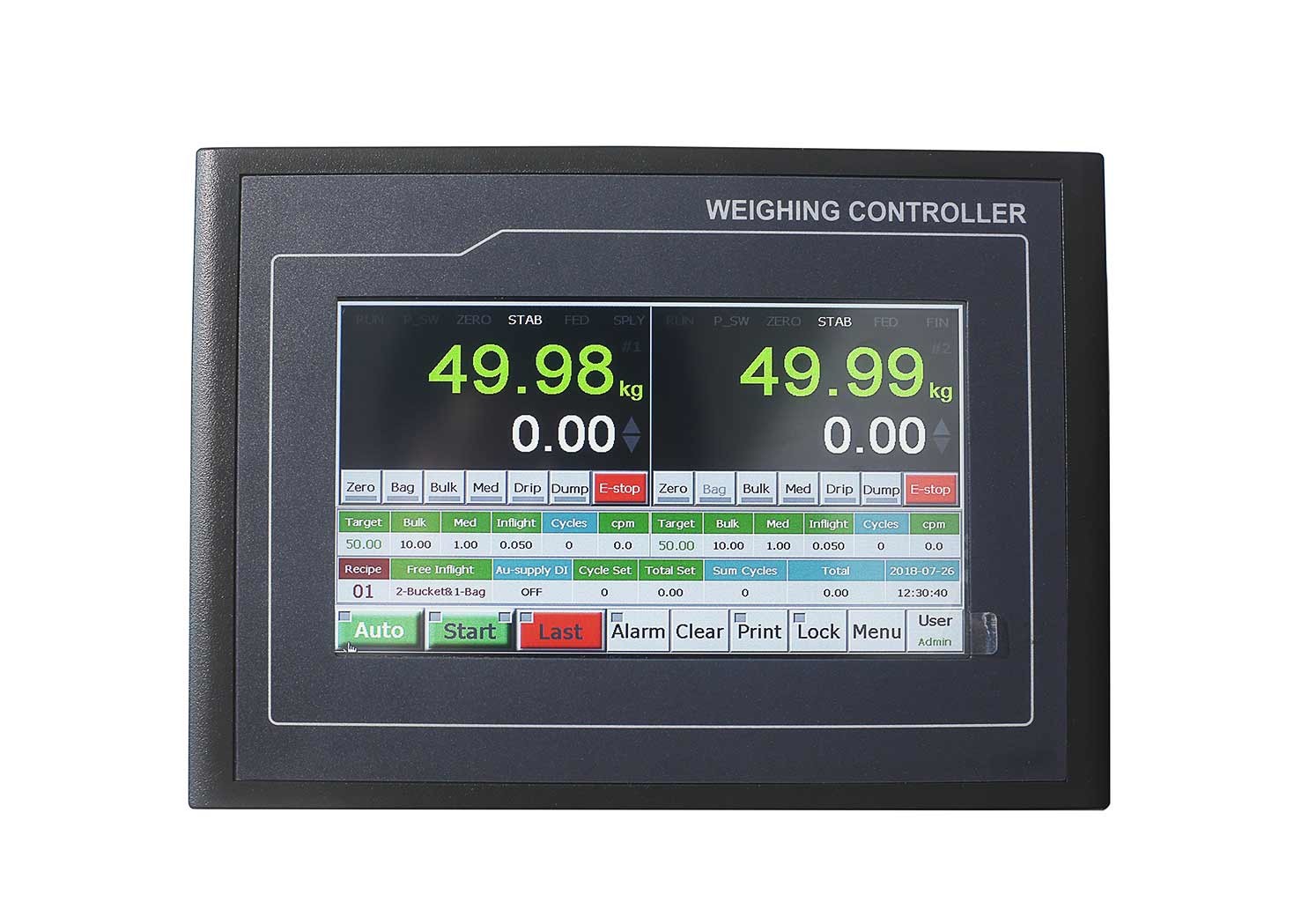

Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Re-run】 Clear Alarm & Recover Running.

Normal Stop [Last Batch].

Stop after the present batch finished.

Flashing Red.
【E-stop】 Emergency Stop.

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after alarms cleared.

Red: Alarm state.

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Working Recipe.

Screen-locking: Locking/unlocking the operating buttons of main user interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Zero】 Manual Zero [No Power-down Protection]. Flashing green.
【Bag】 Bag-clamp/release Request.

Green: Bag-clamping state.

Grey: Bag-releasing state.

【Bulk】 Manual Start/Stop Bulk Feed. Green: Working state.
【Med】 Manual Start/Stop Medium Feed.
【Drip】 Manual Start/Stop Dribble Feed.
【Dump】 Manual Start/Stop Dumping.
【Mat.】 Manual Start/Stop Supplying Materials into Feeding Bin. Flashing green.
【Clear】 Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed.




Installation Mode

Waterproof Bagging Controller For Pneumatic Bag Clamping Device 0




Waterproof Bagging Controller For Pneumatic Bag Clamping Device 1
