Four Scale Bagging Controller Optional Ethernet For Sugar Packaging

Four Scale Bagging Controller Optional Ethernet For Sugar Packaging

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10[GH]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs per month
Get Best Price Contact Now

Detail Information

Power Supply: DC24V Recipe: 100+
Dispaly: Lcd Remote Display: Support
COM@COM1: RS232 COM2: RS485
High Light:

Four Scale Bagging Controller


Bagging Controller Optional Ethernet


Bagging Controller Sugar Packaging

Product Description

Four Scale Bagging Controller Optional Ethernet For Sugar Packaging

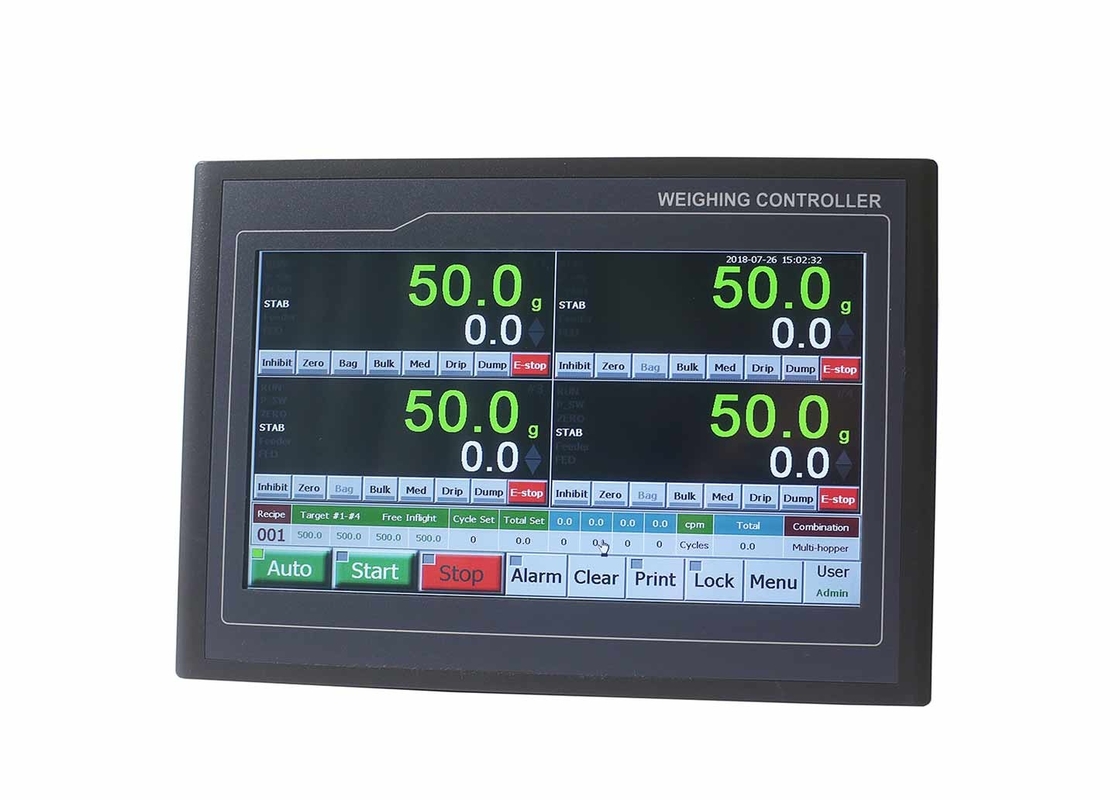

Four-scale Bagging Controller With Optional Ethernet For Sugar Packaging


Main Features:

  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
  • 7” [800×480] or 10.2” [1024×600] TFT touch panel.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Auto Zero Tracking.
  • Fall Value Auto Correction.
  • Auto Pause for Deviation Alarm.
  • Auto Re-feed for Negative Deviation Alarm.
  • Target Batch Count & Target Batch Weight Control.
  • 3-speed[high/medium/low] feeding control by DOs or AOs.
  • Definable DI/DO/AO/COM[Communication Port].
  • Recipe Number: 100.

Four Scale Bagging Controller Optional Ethernet For Sugar Packaging 0


Technical Specification:

Power Supply DC24V±20%,Max.10w.
Display HMI
Sampling Frequency 800Hz
A/D Convert 24-bit
LAN Optional Ethernet
USB1 Connect mouse, software download, data backup
Max. Connection number of Loadcell 8 Loadcells (350Ω)
DI 7 Normally Open Switch Inputs
DO 18 Normally Open Transistor Switch Outputs
AO4 Analog Signal Output: 4~20mA.
Operating Temperature -25℃~+45℃
Verification Accuracy 0.02%
Packing Accuracy 0.2%~0.5%



Software Function

  • Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
  • Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
  • Load Calibration and Loss Calibration functions available.
  • 10 Recipes for packing control.
  • Optional ‘Fall Value Auto Correction’ function.
  • Optional ‘Auto Pause for Deviation Alarm’ and ‘Auto Re-feed’ functions.
  • Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
  • The Batch Records can be printed automatically.
  • Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

 Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Re-run】 Clear Alarm & Recover Running.
【Stop】 【E-stop】: Emergency Stop.
【Last】Last Batch [Normal Stop]. Stop after the present batch finished. Flashing Red.
【E-stop】 Emergency Stop.

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after clearing alarm.

Red: Alarm state.
【Bag】 Bag-clamp/release Request.

Green: Bag-clamping state.

Grey: Bag-releasing state.


Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Working Recipe.

Screen-locking: Locking/unlocking the operating buttons of main display interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Inhibit】 Inhibit/Allow Switch.

Red: The lane is OFF.

Grey: The lane is ON.

【Zero】 Zero Fine Adjustment [No Power-down Protection]. Flashing green.
【High】 Manual Start/Stop High-speed Feeding. Green: Working state.
【Med】 Manual Start/Stop Medium-speed Feeding.
【Low】 Manual Start/Stop Low-speed Feeding.
【Dump】 Manual Start/Stop Dumping.
【Clear】 Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Packing Speed.



Four Scale Bagging Controller Optional Ethernet For Sugar Packaging 1

Data Display & Quick Setting

Name Description Authorization
Biggest Digits Real-time Weight [Weight Unit].
[HI] Weight Upper Limit Alarm.
[OL] Overload Alarm.
Bigger Digits Final Feeding Weight.
[▲]/[HI] Positive Deviation Alarm.
[▼]/[LO] Negative Deviation Alarm.
[Date&Time] Date&Time.
[RUN] Auto Running state.
[PAUSE] Pause state.
[P_SW] DI switch ‘Dumping Gate Closed in Place’ turned on.
[ZERO] Weight ≤ Non-load Zero Range.
[STAB] Weight is stable.
[Feeder] Feeder is working.
[FED] Feeding Ended.
[FIN] Target Batch [Count/Weight] Finished.



In the process of ‘Labeling on Bag’ / ‘Filling Gas into Bag’ / Bag-sewing / Thread-cutting.
[SPLY] In the process of ‘Supplying Material into Feeding Hopper’.
[Au-supply DI] ‘Material Auto-supply Permit’ DI truns ON/OFF.
[RECIPE] ‘Working Recipe’ Setting. All Users
[TARGET] ‘Target Value’ Setting.
[SP1] SP1 Lead Value for High-speed Feeding.
[SP2] SP2 Lead Value for Medium-speed Feeding.
[FALL] SP3 Fall Value for Low-speed Feeding.
  • ‘AUTO FALL’: Fall Value Auto Correction function is open.
  • ‘FREE FALL’: Fall Value Auto Correction function is closed.
[BAT. CNT] Target Batch Count.
[CYCLES] Batch Count.
[BAT. WT] Target Batch Weight.
[TOTAL] Totalized Weight.
[CPM] Packing Speed [Cycles/min].
[Packing Mode]
  • Combination / Multi-hopper.
  • Combination / Single-hopper.
  • Respective / Single-hopper.

Refer to Parameter [303] ‘Packing Mode’.



 Outline Size:

Four Scale Bagging Controller Optional Ethernet For Sugar Packaging 2


Installation Mode

Four Scale Bagging Controller Optional Ethernet For Sugar Packaging 3





Four Scale Bagging Controller Optional Ethernet For Sugar Packaging 4
