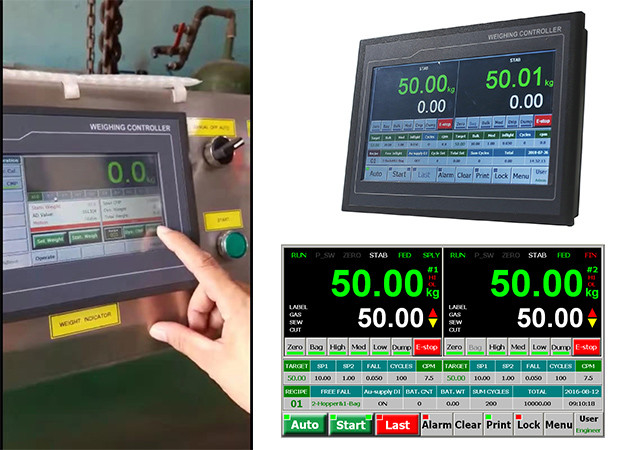

Two Scale Touch Screen Bagging Controller DC24V Fall Value Auto Correction
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-M10[FL] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiating |
| Packaging Details: | carton box |
| Delivery Time: | 5-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs/month |
|
Detail Information |
|||
| Power: | DC24V | Loadcell Connect Number: | 16 |
|---|---|---|---|
| Sampling Frequency: | 800Hz | DI: | 9 Definable Normally Open Switch Inputs |
| DO: | 12/18 Definable Normally Open Transistor Switch Outputs | Operating Temperature: | -25℃～+45℃ |
| Accuracy Grade: | III | ||
| High Light: | Touch Screen Bagging Controller,Bagging Controller DC24V,Bagging Controller Auto Correction |
||
Product Description
Two Scale Touch Screen Bagging Controller DC24V Fall Value Auto Correction
Two-Scale Touch Screen Weighing Controller For Bagging Machine
Main Features
- EMC design with high anti-jam for industrial environment.
- DC24V power input with reverse polarity protection.
- Cortex-A8 CPU with 600MHz Clock, 128M Flash.
- 7” [800×480] or 10.2” [1024×600] TFT touch panel.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 800Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Auto Zero Tracking.
- Fall Value Auto Correction.
- Auto Pause for Deviation Alarm.
- Auto Re-fill for Negative Deviation Alarm.
- Target Batch Count & Target Batch Weight Control.
- Filling Gun Impacting Drum Alarm.
- 3-speed[high/medium/low] filling control by DOs or AOs.
- Definable DI/DO/AO/COM[Communication Port].
- Recipe Number: 100.
Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. |
Green: Auto state. Grey: Manual state. |
All Users |
| 【Start】 | Start. |
Green: Running state. Grey: Stop state. |
|
| 【Stop】 | Stop [Valid at Auto-running state]. | ||
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【E-stop】 | Emergency Stop. | ||
| 【Alarm】 |
Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after alarms cleared. |
Red: Alarm state. | |
| 【Print】 | Report Print. | Green: Auto Print is allowed. | |
| 【Lock】 |
Screen-locking: Locking/unlocking the operating buttons of main user interface. Auto Screen-locking: Refer to parameter [901]. |
Flashing Red: Locked. Grey: Unlocked. |
|
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Lower】 | Manual Lower Filling Gun. | Flashing Green: Filling Gun is moving down. | |
| 【Lift】 | Manual Lift Filling Gun. | Flashing Red: Filling Gun is moving up. | |
| 【Bulk】 | Manual Start/Stop Bulk Fill. | Green: Working state. | |
| 【Med】 | Manual Start/Stop Medium Fill. | ||
| 【Drip】 | Manual Start/Stop Dribble Fill. | ||
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing Red. | |
| 【Tare】 | Manual Tare [No Power-down Protection]. | Flashing Red. | |
| 【Clear】 | Clear Screen: Clear the display values of Filling Weight, Totalized Weight and Batch Count. |
Engineer Administrator |
Technical Specifications
Power Supply: DC24V±20%, Max. 10W.
Loadcell Excitation Voltage/Current: DC5V/250mA.
16 Loadcells[350Ω] connectable.
Weighing Signal Input Range: 0~12.5mV.
9 Normally Open Switch Inputs [DI].
18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
COM&COM1: RS232; COM2: RS485.
USB1: Connect mouse, software download, data backup.
LAN: Optional Ethernet.
Outline Size [W×H×D]
7”: 226.5 × 163 × 36 mm.
10.2”: 274 × 193 × 40 mm.
Panel Cut-out Size [W×H]
7”: 215 × 152 mm.
10.2”: 261 × 180 mm.
Operating Temperature: -25℃～+45℃.
Protection Level of Front Panel: IP65.
Accuracy Grade: III.
Verification Accuracy: 0.02%.
Static Weighing Accuracy: 0.2%~0.5%
