Hydraulic Scales System Shovel Loader Indicator For 1-12ton Bucket Wheel Loaders

Hydraulic Scales System Shovel Loader Indicator For 1-12ton Bucket Wheel Loaders

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-N59[B]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1set/carton
Delivery Time: 3-30 working days
Payment Terms: T/T, Western Union
Supply Ability: 200pcs/month
Get Best Price Contact Now

Detail Information

Power Supply: DC24V±20% Accuracy Grade: III
Verification Accuracy Of Weighing Indicator: 0.02% Accuracy Of Single-Bucket-Weight: 0.5%~1.0%
Accuracy Of Totalized Loading Weight: 1.0% IP Grade: IP65
High Light:

Hydraulic Scales Shovel Loader Indicator

,

Shovel Loader Indicator

,

Shovel Loader Indicator CE

Product Description

Hydraulic Scales System Shovel Loader Indicator For 1-12ton Bucket Wheel Loaders

Hydraulic Scales System For 1-12ton Bucket Wheel Loaders

System Configuration

  • 1 Weighing Indicator with Thermal Printer.
  • 1 Position Sensor.
  • 2 Oil Pressure Sensors.
  • 2 Plate Type Three-way Joints.
  • 1 Mounting Fitting.



Technical Specifications:

Display 640×480 TFT color display screen for English character display
Weight Display Range -99,999~+999,999
System Weighing Range 100~12,000kg
Scale Division Optional 1, 2, 5, 10, 20, 50kg
Display Resolution 1/100,000
Position Sensor Input Interface 2 Switch signal Input
Output Voltage DC12V
Max. Output Current 100mA
Oil Pressure Sensor Interface 2 Switch signal Input
Excitation Voltage/Max.Current DC12V/100mA & DC5V/100mA
Signal Input Range Optional 0~20mV, 0~5V[Factory Set Value]
∑-△ADC 24-bit, 1,000,000 internal code used
Sampling Frequency 400Hz
Non-linearity 0.005%FS
Digital Communication Interface COM1 RS232
Report Print 10000 Loading Records can be saved, queried and printed, and each record can contain 50pcs Single-bucket-loading-weight value
IP Grade IP65



Installation of Position Sensor

Position sensor includes two modules:

  • Proximity Switch Module: Main Mounting Plate with a chute for length adjustment, Sub-mounting Plate with a chute for angle adjustment, Upper Proximity Switch and Lower Proximity Switch [Detecting Distance: 1~8mm].
  • Magnet Module: Thread Pole, Weld-nut, Tight-nut, Nylon Block, Magnet Block.

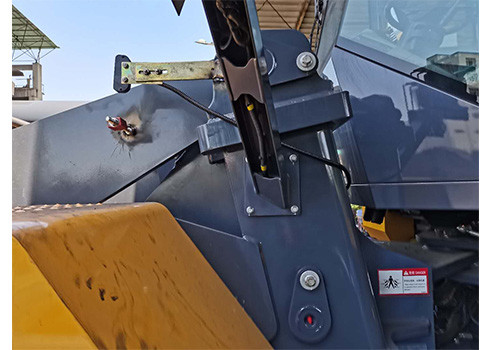

Hydraulic Scales System Shovel Loader Indicator For 1-12ton Bucket Wheel Loaders 0



1: Lift-arm Seat; 2: Lift-arm; 3: Main Mounting Plate; 4: Sub-mounting Plate; 5: Weld-nut;

6: Thread Pole; 7: Nylon Block; 8: Fastening Nut for Position Ajustment; 9: Magnet Block; 10: Upper Proximity Switch; 11: Upper Proximity Switch; 12: Fastening Nut for Length Ajustment; 13: Fastening Nut for Angle Ajustment.

Sensing Distance Adjustment: Adjust the sensing distance between the Magnet Block and the Proximity Switch to 3~5mm.

Suggestion: Install the position sensor on the lift-arm seat and lift-arm which are at the same side that the weighing indicator installed on.

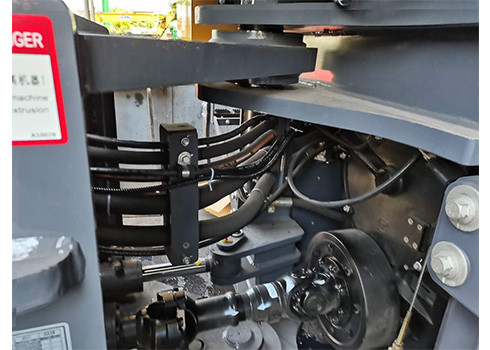

Hydraulic Scales System Shovel Loader Indicator For 1-12ton Bucket Wheel Loaders 1

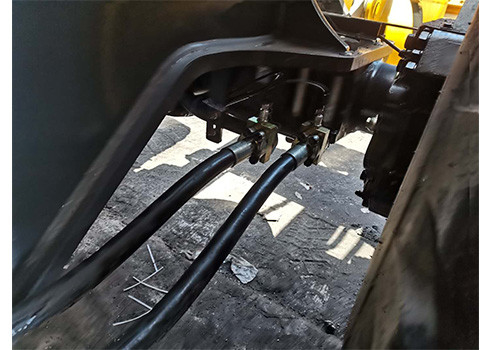

Installation of Oil Pressure Sensor

Hydraulic Scales System Shovel Loader Indicator For 1-12ton Bucket Wheel Loaders 2

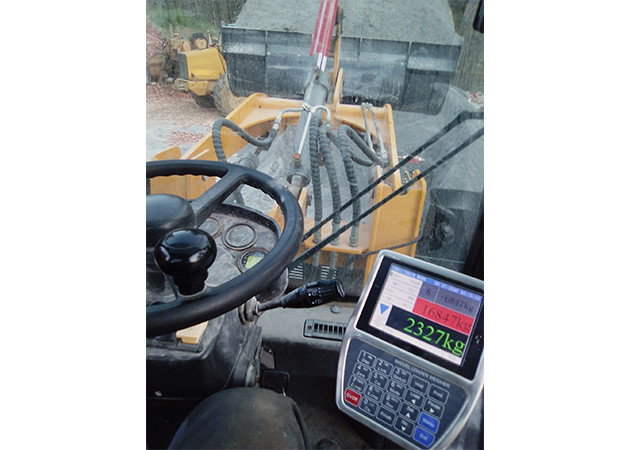

Application

Hydraulic Scales System Shovel Loader Indicator For 1-12ton Bucket Wheel Loaders 3
