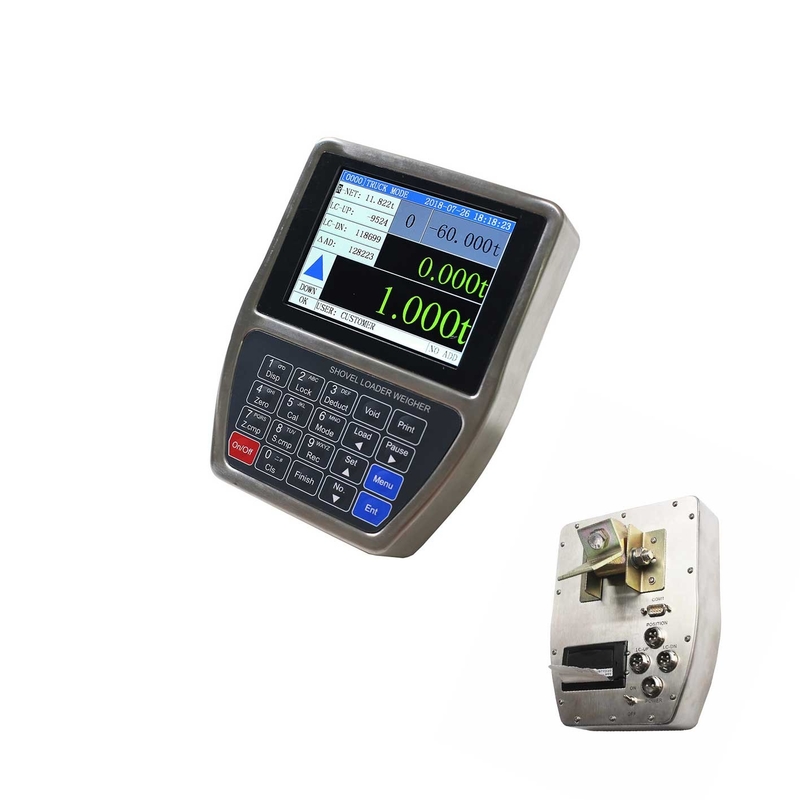

Dynamic Weighing Wheel Load Cell Indicator With Oil Pressure Sensor

Dynamic Weighing Wheel Load Cell Indicator With Oil Pressure Sensor

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST106-N59[B]

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: carton box
Delivery Time: 8-15 working days
Payment Terms: T/T
Supply Ability: 2000sets/ months
Get Best Price Contact Now

Detail Information

Power Supply: DC24V Application: Wheel Loader/Shovel Loader
Oil Pressure Sensor: 0~40Mpa Single Package Size: 50X35X25 Cm
Single Gross Weight: 8.000 Kg Package Type: Carton Box
High Light:

Wheel Load Cell Indicator

,

Dynamic Weighing Load Cell Indicator

,

Oil Sensor Load Cell Indicator

Product Description

Dynamic Weighing Wheel Load Cell Indicator With Oil Pressure Sensor

Wheel Loader Indicator With Oil Pressure Sensor, Position Sensor, Printer, Cylinder Plate



Product Application

Wheel Loader Weigher is a dynamic weighing and auto-totalizing equipment installed on wheel loader without changing the original structure of wheel loader.



When the lift-arm of wheel loader lifted to a certain height, the position sensor will trigger the weighing process, and the weighing indicator will collect the oil pressure signal from lower and upper oil chambers of arm-lifting oil cylinder. After signal processing and compensating, Single-bucket-loading-weight will be got and totalized to Totalized Loading Weight automatically, and the Deviation Value between Totalized Loading Weight and Setpoint, alarm messages will be displayed. The operator can judge if the present Single-bucket-loading-weight is valid according to the alarm messages, and confirm the loading weight of last bucket according to Negative Deviation Value for avoiding overloading. After Totalized Loading Weight reached setpoint, the operator should stop loading process, save and print Loading Records.

SPECIFICATIONS

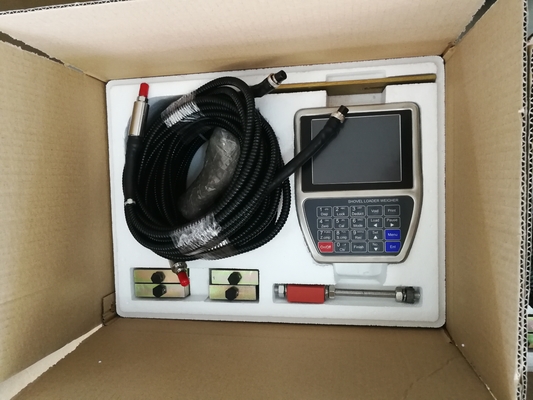

System Configuration
Weighing Indicator with Thermal Printer
1 piece
Position Sensor
1 piece
Oil Pressure Sensors
2 pieces
Plate Type Three-way Joints
2 pieces
Mounting Fitting
1 set
Display
640×480 TFT color display screen for English character display
Keypad
20-key English keypad with controllable backlight

Position Sensor Input Interface
2 Switch signal Input
Output Voltage
DC12V
Max. Output Current
100mA



Oil Pressure Sensor Interface
Excitation Voltage/Max.Current
DC12V/100mA & DC5V/100mA
2 Oil Pressure signal inputs
Signal Input Range
Optional 0~20mV, 0~5V[Factory Set Value]
∑-△ADC
24-bit, 1,000,000 internal code used
Sampling Frequency
400Hz
Digital Communication Interface
COM1
RS232
Report Print
10000 Loading Records can be saved, queried and printed, and each record can contain 50pcs Single-bucket-loading-weight value
Dynamic Weighing Wheel Load Cell Indicator With Oil Pressure Sensor 0





Details:



Specifications of Position Sensor.

• HALL Type Proximity Switches

 Operating Voltage: DC5~24V.

 Detecting Distance: 1~8mm.

 Response Frequency: 5KHz.

 Quiescent Current:Max. 2mA.

 Thread Size: M8×1mm.

 Service Temperature: -25℃~+70℃.

 Protection Level: IP67.

• Standard Detecting Target

 Permanent magnet.

 Outline Size: 30×10×5mm [L×W×T].


Specifications of Oil Pressure Sensor.

 Operating Voltage: DC5V.

 Capacity: 0~25MPa.

 Accuracy: ±0.1%FS.

 Output Sensitivity: 2mV/V.

 Zero Drift: ±0.015%FS/℃.

 Safe Overload: 120%FS.

 Thread Size: M10×1mm.

 Service Temperature: -40℃~+125℃.

 Protection Level: IP67.



Weighing Indicator

Weld the mounting bracket of the weighing indicator firmly on the metal frame of the wheel loader driving cab. The installation position should be convenient for operation.

Suggestion: Install the weighing indicator in the driving cab of wheel loader and on the side the door which will not be opened frequently.



Dynamic Weighing Wheel Load Cell Indicator With Oil Pressure Sensor 1



Intallation Position


 The upper oil connecting port and lower oil connecting port of arm-lifting oil cylinder are the installation positions of oil pressure sensors.

 Suggestion: Install the oil pressure sensors on the arm-lifting oil cylinder which is at the same side that the weighing indicator installed on.



Dynamic Weighing Wheel Load Cell Indicator With Oil Pressure Sensor 2



Installation of Position Sensor

Install the position sensor on the lift-arm seat and lift-arm which are at the same side that the weighing indicator installed on

Dynamic Weighing Wheel Load Cell Indicator With Oil Pressure Sensor 3





Printer

There is a thermal printer buillt-in indicator.



If you don't want it, you can connect a printer externally. Please inform us when making order.



Dynamic Weighing Wheel Load Cell Indicator With Oil Pressure Sensor 4





Warranty:



The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
