USB Communication Shovel Loader Indicator Built In Printer

USB Communication Shovel Loader Indicator Built In Printer

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-N59[B]

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 1set/carton
Delivery Time: 3-30 working days
Payment Terms: T/T, Western Union
Supply Ability: 200sets/month
Get Best Price Contact Now

Detail Information

Display: TFT Color Screen Power Supply: DC24V±20%
Communication Protocol: MODBUS RTU IP Grade: IP65
High Light:

Shovel Loader Indicator Built In Printer


USB Communication Shovel Loader Indicator


IP65 Shovel Loader Indicator

Product Description

USB Communication Shovel Loader Indicator Built In Printer

High Precision Industrial Wheel Loader Electronic Bucket Weigh Scale

Main Features:
 EMC design with high anti-jamming capability, suitable for industrial environment.
 DC24V power input circuit with reverse polarity protection function.
 32-bit ARM CPU with 72MHz & high arithmetic speed.
 Dust-proof stainless steel shell with protection level IP65.
 640×480 TFT color display screen for English character display.
 The display informations of Bucket Lifting/Declining state, Single-bucket-loading-weight, Totalized Loading Weight, Positive/Negative Deviation Value, Alarm state, Date/Time and other auxiliary data are used for judging if Single-bucket-loading-weight is valid and the loading process should be stopped.
 20-key English keypad with controllable backlight.
 Number and English Alphabet can be inputted.
 The informations of User Name, Truck No., Goods No. and Operator No. can be inputted.
 Upper/Lower Limit of Single-bucket-loading-weight, Setpoint of Totalized Loading Weight and Date/Time can be set.
 Operating Time, Single-bucket-loading-weight, Totalized Loading Weight and Alarm Information can be recorded automatically.
 Using two oil pressure sensors for higher weighing accuracy than using one.
 24-bit Σ-△ADC with internal resolution 1/1,000,000 and sampling frequency 400Hz.
 High sampling frequency, anti-vibration digital filter and acceleration compensation algorithm for ensuring high weighing accuracy in the lifting process of the bucket.
 10000 Loading Records can be saved, queried and printed, and each record can contain 50 Single-bucket-loading-weight value.

USB Communication Shovel Loader Indicator Built In Printer 0

What product does the whole set include?

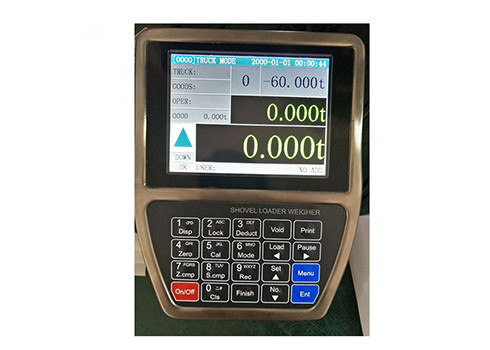

  1. 1 Weighing indicator with Built-in thermal printer.

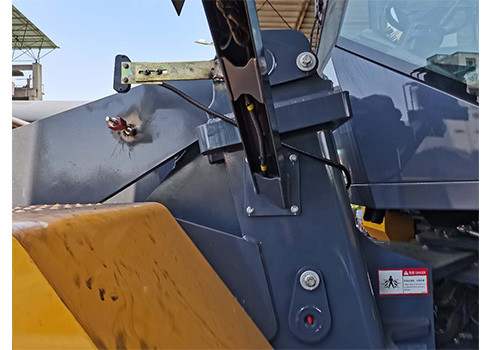

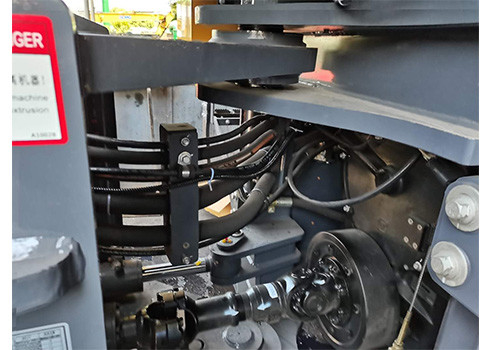

  2. 1 Position sensor.

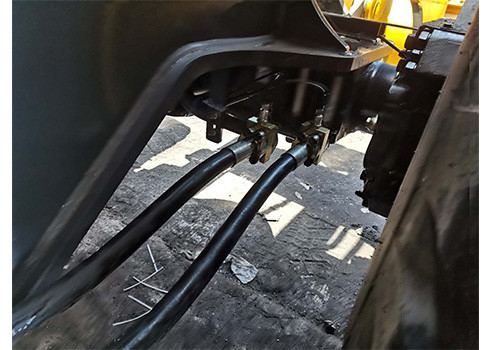

  3. 2 Oil pressure sensors.
  4. 2 Plate type three-way joints.
  5. 1 Mounting fitting.

USB Communication Shovel Loader Indicator Built In Printer 1


BST106-N59[B] Suitable for the wheel loader series with loading capacity 1~12t.


USB Communication Shovel Loader Indicator Built In Printer 2


Specifications of Position Sensor

  1. HALL Type Proximity Switches
  2. Operating Voltage: DC5~24V.
  3. Detecting Distance: 1~8mm.
  4. Response Frequency: 5KHz.
  5. Quiescent Current:Max. 2mA.
  6. Thread Size: M8×1mm.
  7. Service Temperature: -25℃~+70℃.
  8. Protection Level: IP67.

Standard Detecting Target

  1. Permanent magnet.
  2. Outline Size: 30×10×5mm [L×W×T].

Specifications of Oil Pressure Sensor

  • Operating Voltage: DC5V.
  • Capacity: 0~25MPa.
  • Accuracy: ±0.1%FS.
  • Output Sensitivity: 2mV/V.
  • Zero Drift: ±0.015%FS/℃.
  • Safe Overload: 120%FS.
  • Thread Size: M10×1mm.
  • Service Temperature: -40℃~+125℃.
  • Protection Level: IP67.


System Accuracy

  • Accuracy Grade: III.
  • Verification Accuracy of Weighing Indicator: 0.02%.
  • Accuracy of Single-Bucket-Weight: 0.5%~1.0%.
  • Accuracy of Totalized Loading Weight: 1.0%.

Technical Specifications:

Display 640×480 TFT color display screen for English character display
Weight Display Range -99,999~+999,999
System Weighing Range 100~12,000kg
Scale Division Optional 1, 2, 5, 10, 20, 50kg
Display Resolution 1/100,000
Position Sensor Input Interface 2 Switch signal Input
Output Voltage DC12V
Max. Output Current 100mA
Oil Pressure Sensor Interface 2 Switch signal Input
Excitation Voltage/Max.Current DC12V/100mA & DC5V/100mA
Signal Input Range Optional 0~20mV, 0~5V[Factory Set Value]
∑-△ADC 24-bit, 1,000,000 internal code used
Sampling Frequency 400Hz
Non-linearity 0.005%FS
Digital Communication Interface COM1 RS232
Report Print 10000 Loading Records can be saved, queried and printed, and each record can contain 50pcs Single-bucket-loading-weight value
IP Grade IP65



NEW Shovel Loader Weighing Controller BST106-N59[B] is with metal oil pressure sensor pipe and metal position sensor pipe. It can be extend its service life effectively. There are some point need to be paid attention to when making order:


1. If you need longer pipe, pls tell us exact length when making order;

2. If the three-way joint of your loader is special, please tell us the model number the loader you want o install or please send us the detail information of theree-way jointyou need;

3. Standard configuration is with built-in printer, if you want to connect a printer externally, that is ok, just tell us when making order please.




1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: the model number of the loader you want to install, the shape and size of cylinder joint of your loader, the weight of single bucket, accuracy etc.


2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.


3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.


4.When will you arrange the production?

We will arrange the production immediately after receiving your payment.


5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.


6. How long is the warranty period?

The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)


7. How can you help us in installation?

We have installation vedio. And we have been working on this more than 5 years. We will help you solve the problem in installation with our expirience.
