Wheel Loader Payloader Scales, for 1-12ton Heavy Machinery Construction Wheel Loader L2150 L2180, Backhoe Loader Scales
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-N59(B) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 688-956usd/pcs |
| Packaging Details: | 1set/carton |
| Delivery Time: | 1-3days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500pcs/day |
|
Detail Information |
|||
| Loading Capacity: | 1~12 Ton | Power Supply: | DC24V |
|---|---|---|---|
| Verification Accuracy Of Weighing Indicator: | 0.02% | Accuracy Of Single-Bucket-Weight: | 0.5%~1.0% |
| Accuracy Of Totalized Loading Weight: | 1.0% | Product Name: | Wheel Loader Weigher/Scales |
| High Light: | Payloader Scale Weighing Controller,Wheel Loader Scale Weighing Controller,400Hz Scale Weighing Controller |
||
Product Description
Wheel Loader Payloader Scales, for 1-12ton Heavy Machinery Construction Wheel Loader L2150 L2180, Backhoe Loader Scales
Wheel Loader Payloader Scales, for 1-12ton Heavy Machinery Construction Wheel Loader L2150 L2180, Backhoe Loader Scales
Application:
Lonking: 855D, 855, ZL50C, 833D, 855N and so on
XGMA: 955, 951-III and so on
LOVOL: FL956FM, L956F and so on
LiuGong Machinery: 855, ZL50CN, 842 and so on
...............
Suitable for the wheel loader series with loading capacity 1~12 Ton.

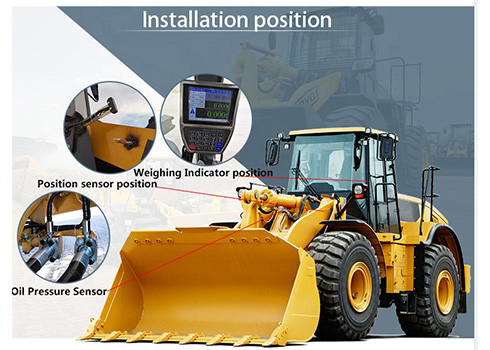

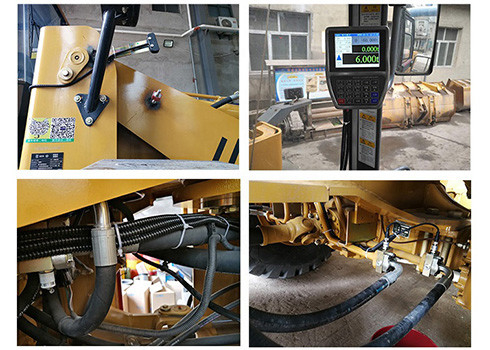

1. Configuration of 1 set Wheel Loader Controller
| Weighing Controller with built-in printer | 1 pcs |
| Oil Pressure Sensor | 2 pcs |
| Position Sensor | 1 set |
| Three-way joint | 2 pcs |
2. Technical Specification:
a. EMC design with high anti-jam for industrial environment.
b. DC24V power input with reverse polarity protection.
c. 32-bit ARM CPU with 72MHz & higher arithmetic speed.
d. Dust-proof stainless steel shell with protection level IP65.
e. 640×480 TFT display screen with English display and input.
f. 24-bit ∑-△ADC with internal resolution 1/1,000,000.
g. High sampling frequency 400Hz.
h. Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.

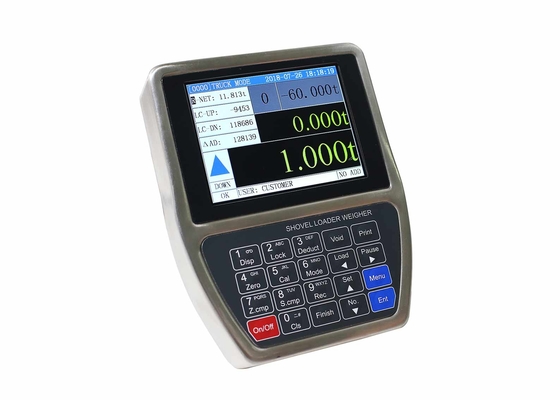

3. Menu Operation
| Key Name | Description |
| 【Menu】 | Enter Main Menu / Exit. |
| 【Ent】 | Enter / Save. |
| 【◄】 | Cursor shifts left. Backspace. |
| 【►】 | Cursor shifts right. |
| 【▲】 | Cursor shifts up. Display the previous option. |
| 【▼】 | Cursor shifts down. Display the next option. |
4. Parameter Setting Operation
| Key Name | Description |
| 【Set】 | Setpoint Parameters Setting. |
| 【0~9】 | Number Input. |
| 【A-Z】 | English Alphabet Input. |
| 【Print】/【IME】 | Input Method Switch: Number / English / Chinese PinYin. |
5. System Calibration Operation
| Key Name | Description | Authorization |
| 4/【Zero】 | Zero Calibration with unloading and idle speed. | All Users |
| 7/【Z.cmp】 | Zero Compensation with unloading and accelerating. | Administrator |
| 5/【Cal】 | Span Calibration with loading and idle speed. | |
| 8/【S.cmp】 | Span Compensation with loading and accelerating. | |
| 6/【Mode】 | Options: Truck Mode / Mix Mode / Axle Type Mode. |
6. Package
Supmeter Top Selling Digital Loader Bucket Scales, Wheel Loader Weigher BST106-N59(B)
