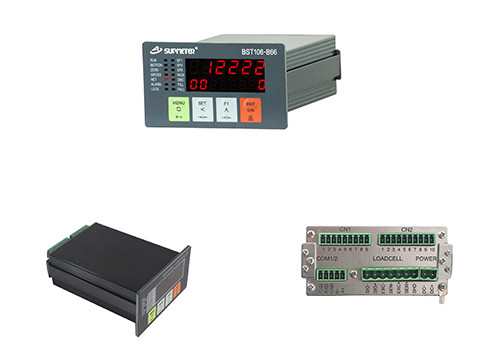

EMC Design Weighing Controller For Packing System

EMC Design Weighing Controller For Packing System

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B66(A)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 89-132usd/pcs
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs/month
Get Best Price Contact Now

Detail Information

Model Number: BST106-B66(A) Product Name: Ration Packing Controller
Packing: 1pcs/box MOQ: 1pcs
High Light:

EMC Design Weighing Controller


CE Packing System Weighing Controller


32bit ARM CPU weighing indicator

Product Description

EMC Design Weighing Controller For Packing System

Bagging Weighing Controller With RS232/RS485 For Packing System ,Weight Machine Scale Weighing Controller


Main Features:

  • Suitable for Ration Packing Scale. Optional Application Modes: 1-Bucket Scale, 2-Bucket Scale and 1-Bag Scale with Auto Bag-releasing or Manual Bag-releasing.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
  • 6+8 Red LED digital tubes for English character and digit display.
  • English keypad for Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • Max. Connection Quantity: 4 Loadcells (350Ω).
  • Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
  • Load Calibration and Data Calibration available.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
  • Optional ‘Bulk/Medium/Dribble Feed’ DOs for feeding control. Optional Continuous and Jogging Dribble Feed Methods.
  • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘Bulk/Medium /Dribble Feed’ control.
  • Optional ‘Auto Correct Inflight’ function.
  • Optional ‘Pause for Tolerance Alarm’ and ‘Auto Dribble Re-feed’ functions.
  • Optional ‘Batch Target Control’ function [With Batch Count Target or Batch Weight Target finished, the packing process will stop automatically].
  • 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
EMC Design Weighing Controller For Packing System 0
EMC Design Weighing Controller For Packing System 1
DI/DO Function Definition
CN1 [DI]
No. Pin Signal Name Description
1 COM COM DI Common Terminal [DC-].


ON: Auto state.

OFF: Manual state / Emergency Stop.


Start/Dev.Ack [Deviation Alarm Acknowledge]

In running process: Dev.Ack.

Pause state: Dev.Ack & Recover Running.



Bag-clamp/release Request.


  Slave Controller of Double-hopper-weighing Mode: Unused.

Hopper-weighing Mode: Manual Dump.

Valid at Manual state.

ON: Manual Dump; OFF: Stop.

  Bag-weighing Mode: Unused.

Single-hopper-weighing Mode: Manual Tare.

Bag-weighing Mode: Manual Tare.


HDSK_I Host Controller of Double-hopper-weighing Mode: Handshaking Signal from Slave Controller.
  Slave Controller of Double-hopper-weighing Mode: Unused.
7 DI6 SP3_I

Manual SP3 Re-feed.

Valid at Manual state and Auto-pause state with Negative Deviation Alarm.

ON: Start SP3 Low-speed Feeding.

OFF: Stop SP3 Low-speed Feeding.
