• VFD Display Hopper DC24V Weighing Indicator Controller
VFD Display Hopper DC24V Weighing Indicator Controller

VFD Display Hopper DC24V Weighing Indicator Controller

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-C11+

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: Negociation
Packaging Details: carton box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Power Supply: AC220V/DC24V Display Type: VFD Display
Mount Way: Panel Mount Warranty: 12 Months
Battery: Lithium Battery Single Package Size: 27X25X11cm
High Light:

digital weighing controller


programmable weighing controller

Product Description

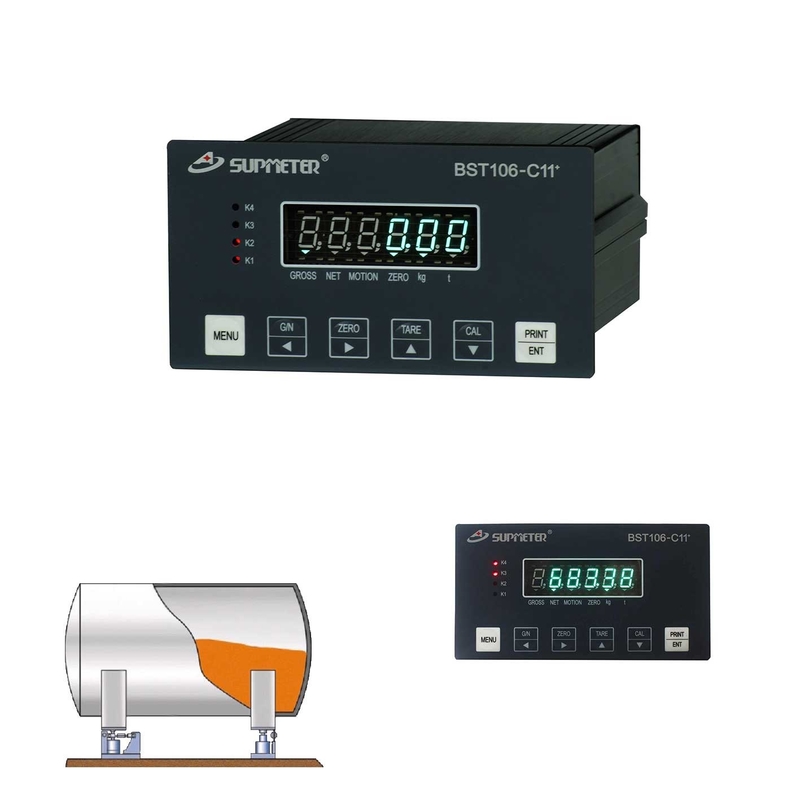

VFD Display Hopper DC24V Weighing Indicator Controller

BST106-C11+ is panel mounted indicator for hopper weighing, axle weighing and so on.





Power Supply AC220V±15%, 50Hz±2%/ DC24V ±20%
Display VFD display screen
Kaypad 6 keys for Menu&Shortcut mode operation with key tone
Excitation Voltage Output DC10V
Max. Connect No. of Loadcell 8 Loadcells (350Ω)
A/D Convert 24-bit
Sampling Frequency 800Hz
Zero Drift ±0.1μV/°C RTI (Relative to Input)
AO 1 AO for additional option
DI 3 Normally Open Switch Inputs
DO 4 Normally Open Relay or Transistor Switch Outputs
Communication Port COM1: Fixed configuration RS232&RS485. Free to use one of them; COM2 Optional: RS232/RS485/RS422/Profibus-DP/CANBUS/Ethernet modules
Connectable IPC/PLC, Remote Display&Operation Terminal, Serial Printer and Wireless Module
Report Print Hopper Weighing Report, Ration Feeding&Batching Report and Axle Weighing Report can be printed
Outline Dimension 160 × 84 × 188 mm (W×H×D)
Weight Approx. 1.5kg
Service Temperature -20°C to +40°C
IP Grade IP50




The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
